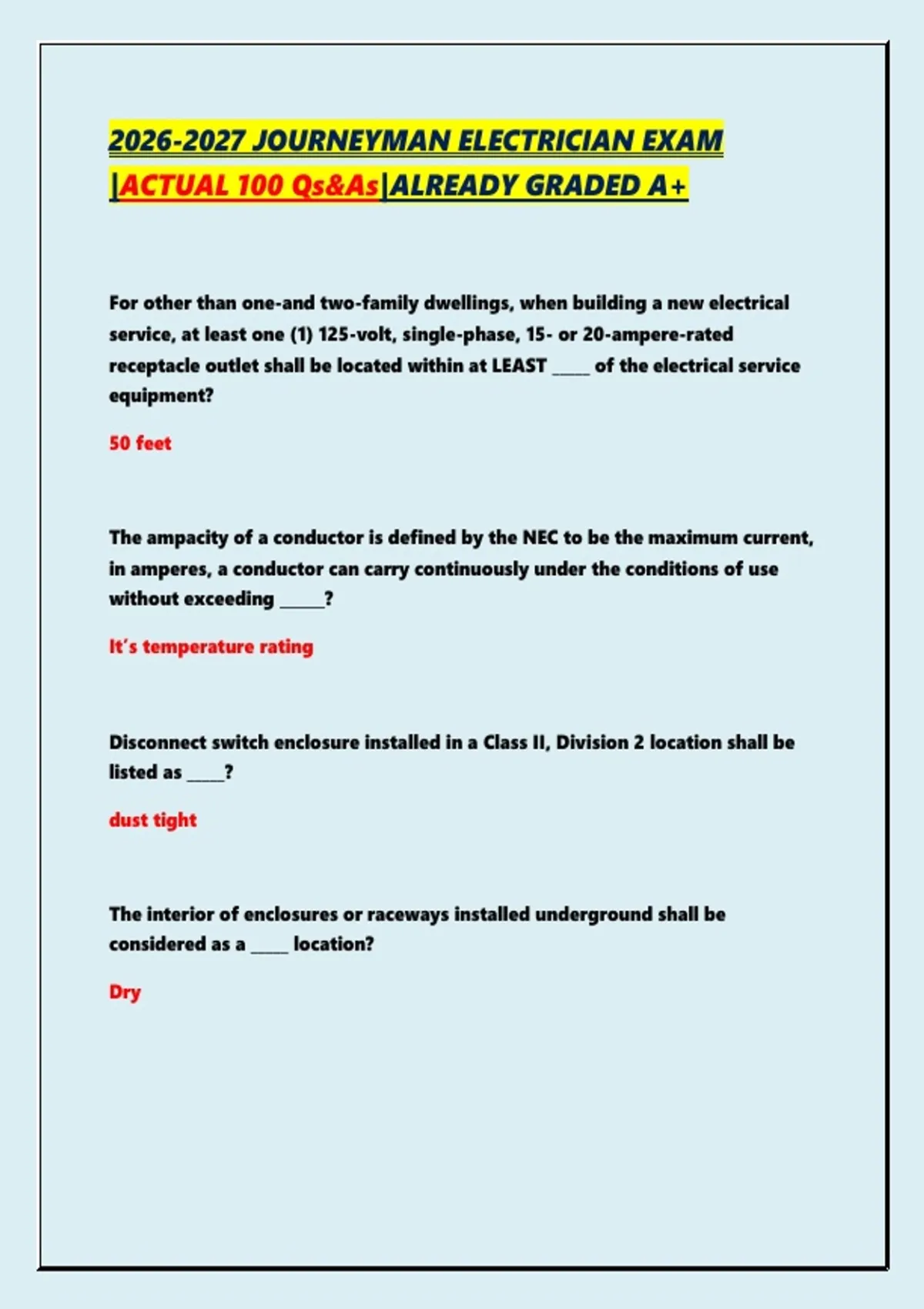

2026-2027 JOURNEYMAN ELECTRICIAN EXAM
|ACTUAL 100 Qs&As|ALREADY GRADED A+
For other than one-and two-family dwellings, when building a new electrical
service, at least one (1) 125-volt, single-phase, 15- or 20-ampere-rated
receptacle outlet shall be located within at LEAST _____ of the electrical service
equipment?
50 feet
The ampacity of a conductor is defined by the NEC to be the maximum current,
in amperes, a conductor can carry continuously under the conditions of use
without exceeding ______?
It’s temperature rating
Disconnect switch enclosure installed in a Class II, Division 2 location shall be
listed as _____?
dust tight
The interior of enclosures or raceways installed underground shall be
considered as a _____ location?
Dry
,Determine the MAXIMUM allowable current-carrying capacity of four (4) size
1/0 AWG THW copper current-carrying conductors installed in a common
raceway with an ambient temperature of 86 degrees F?
120 amperes
The NEC defines a continuous load to be a load where the maximum current on
the circuit is expected to continue for at LEAST____ hours or more?
Three
The service disconnecting means for each electrical service shall consist of NOT
more than _____ switches or circuit breakers, mounted in a single enclosure or
in a group of separate enclosures.
Six
Given: You have determined a conductor has a computed allowable ampacity
of 75 amperes. What is the MAXIMUM standard ampere rating of the
overcurrent protection device the NEC® permits to protect this circuit where
this is not a motor circuit or part of a multioutlet branch circuit supplying
more than one receptacle?
80 amperes
A 208-volt, 3-phase, 50 hp, squirrel-cage, continuous-duty, ac motor has a full-
load running current rating of _____?
143 amperes
, What is the MAXIMUM distance that a disconnect switch is permitted to be
located from the operator's station for a portable carnival ride?
6 feet
Determine the MINIMUM trade size electrical metallic tubing (EMT) required
to enclose eight (8) size 6 AWG copper conductors with THHW insulation,
when installed in a 50 foot conduit run?
1 1/4 in.
Where exceptions are not applicable, when a feeder supplies a continuous load
of 240 amperes, the overcurrent protection device protecting this circuit shall
have a rating of at LEAST _____?
300 amperes
Liquidtight flexible metal conduit (LFMC) shall be securely fastened WITHIN
_____ of each box or other conduit termination?
12 inches
Where a pull box to be installed will contain conductors of size 4 AWG and
larger, and a straight pull of the conductors is to be made, the length of the
box shall NOT be less than ____times the trade diameter of the largest conduit
entering the box.
