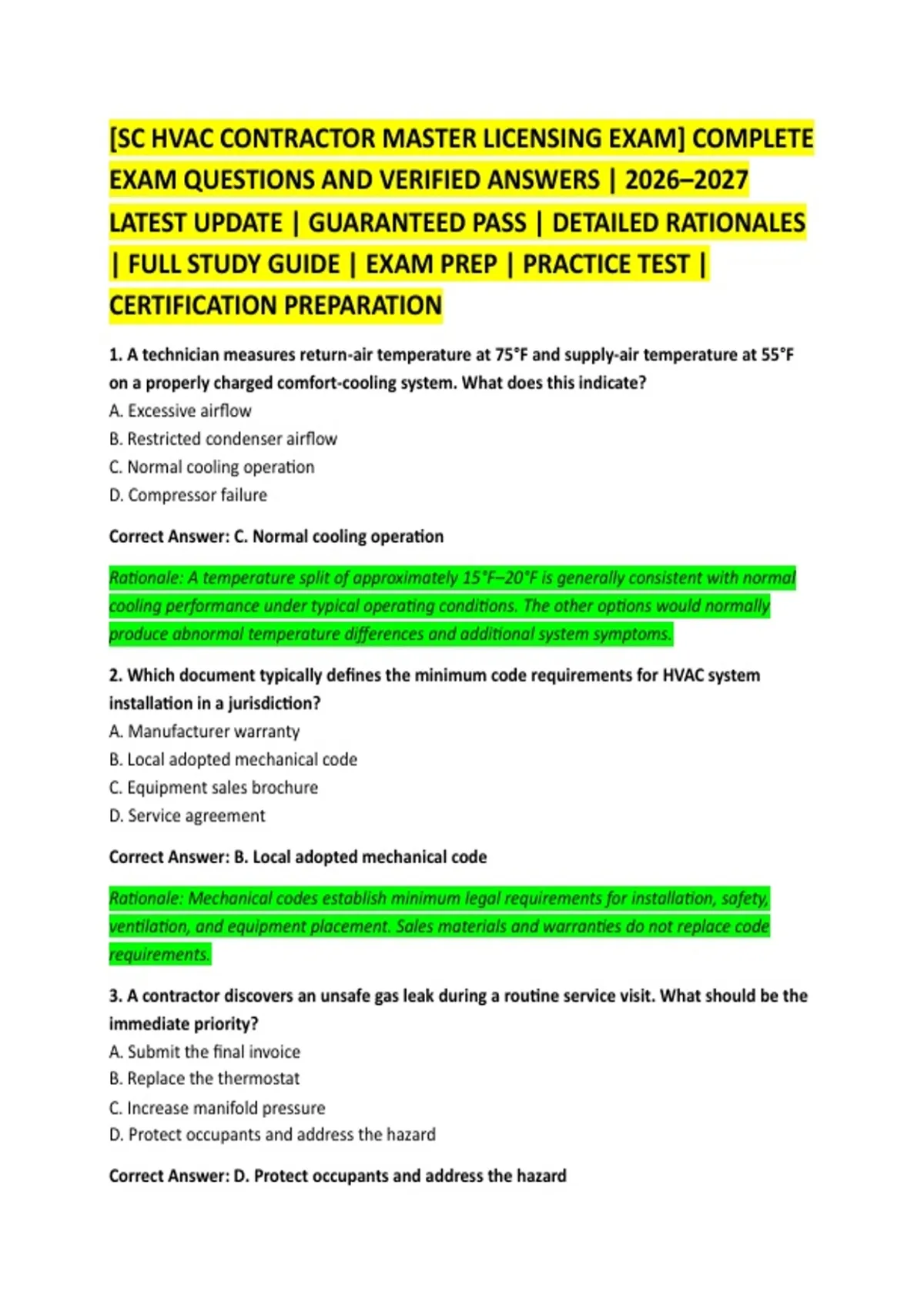

[SC HVAC CONTRACTOR MASTER LICENSING EXAM] COMPLETE
EXAM QUESTIONS AND VERIFIED ANSWERS | 2026–2027
LATEST UPDATE | GUARANTEED PASS | DETAILED RATIONALES
| FULL STUDY GUIDE | EXAM PREP | PRACTICE TEST |
CERTIFICATION PREPARATION
1. A technician measures return-air temperature at 75°F and supply-air temperature at 55°F
on a properly charged comfort-cooling system. What does this indicate?
A. Excessive airflow
B. Restricted condenser airflow
C. Normal cooling operation
D. Compressor failure
Correct Answer: C. Normal cooling operation
Rationale: A temperature split of approximately 15°F–20°F is generally consistent with normal
cooling performance under typical operating conditions. The other options would normally
produce abnormal temperature differences and additional system symptoms.
2. Which document typically defines the minimum code requirements for HVAC system
installation in a jurisdiction?
A. Manufacturer warranty
B. Local adopted mechanical code
C. Equipment sales brochure
D. Service agreement
Correct Answer: B. Local adopted mechanical code
Rationale: Mechanical codes establish minimum legal requirements for installation, safety,
ventilation, and equipment placement. Sales materials and warranties do not replace code
requirements.
3. A contractor discovers an unsafe gas leak during a routine service visit. What should be the
immediate priority?
A. Submit the final invoice
B. Replace the thermostat
C. Increase manifold pressure
D. Protect occupants and address the hazard
Correct Answer: D. Protect occupants and address the hazard
,Rationale: Life safety always takes precedence. The contractor should follow appropriate
procedures to secure the area, notify occupants, and correct or isolate the hazard before
addressing routine maintenance concerns.
4. Which refrigerant property makes it effective for heat transfer applications?
A. Ability to change phase at practical temperatures and pressures
B. High electrical resistance
C. Permanent gaseous state
D. High combustion rate
Correct Answer: A. Ability to change phase at practical temperatures and pressures
Rationale: Refrigerants absorb and reject large quantities of heat through phase changes.
Electrical resistance and combustion characteristics are unrelated to refrigeration performance.
5. During startup of a new rooftop unit, voltage readings are consistently 12% below
equipment nameplate requirements. What is the best course of action?
A. Operate the unit temporarily without concern
B. Increase refrigerant charge
C. Investigate and correct the electrical supply issue
D. Reduce airflow
Correct Answer: C. Investigate and correct the electrical supply issue
Rationale: Sustained undervoltage can damage motors and compressors. Electrical supply
problems should be corrected before placing equipment into normal operation.
6. What is the primary purpose of a Manual J load calculation?
A. Determine fuel consumption
B. Calculate building heating and cooling loads
C. Estimate labor hours
D. Select refrigerant type
Correct Answer: B. Calculate building heating and cooling loads
Rationale: Manual J provides a recognized method for determining residential heating and
cooling requirements. Proper equipment sizing begins with accurate load calculations.
7. A customer requests installation of equipment significantly larger than calculated loads
require. What is the best recommendation?
A. Install the larger unit without discussion
B. Oversize by at least 50%
, C. Follow calculated design requirements
D. Reduce duct size to compensate
Correct Answer: C. Follow calculated design requirements
Rationale: Oversized equipment often causes short cycling, humidity problems, and reduced
efficiency. Professional practice requires recommending properly sized equipment.
8. Which component is primarily responsible for moving air through a forced-air HVAC
system?
A. Expansion valve
B. Reversing valve
C. Compressor
D. Blower assembly
Correct Answer: D. Blower assembly
Rationale: The blower creates airflow through ducts and across coils. The compressor and
expansion device serve refrigeration functions rather than air distribution.
9. What is the most common purpose of duct insulation?
A. Increase refrigerant pressure
B. Reduce heat gain and heat loss
C. Increase fan speed
D. Eliminate balancing requirements
Correct Answer: B. Reduce heat gain and heat loss
Rationale: Insulation improves energy efficiency by limiting thermal transfer. It does not replace
balancing or affect refrigerant pressures directly.
10. A combustion analyzer indicates elevated carbon monoxide levels in a furnace exhaust
stream. What should be done first?
A. Increase thermostat setting
B. Add refrigerant
C. Ignore readings if heating performance is acceptable
D. Investigate combustion and venting immediately
Correct Answer: D. Investigate combustion and venting immediately
Rationale: Elevated carbon monoxide presents a serious safety concern. Proper combustion,
venting, and heat exchanger integrity must be evaluated promptly.
