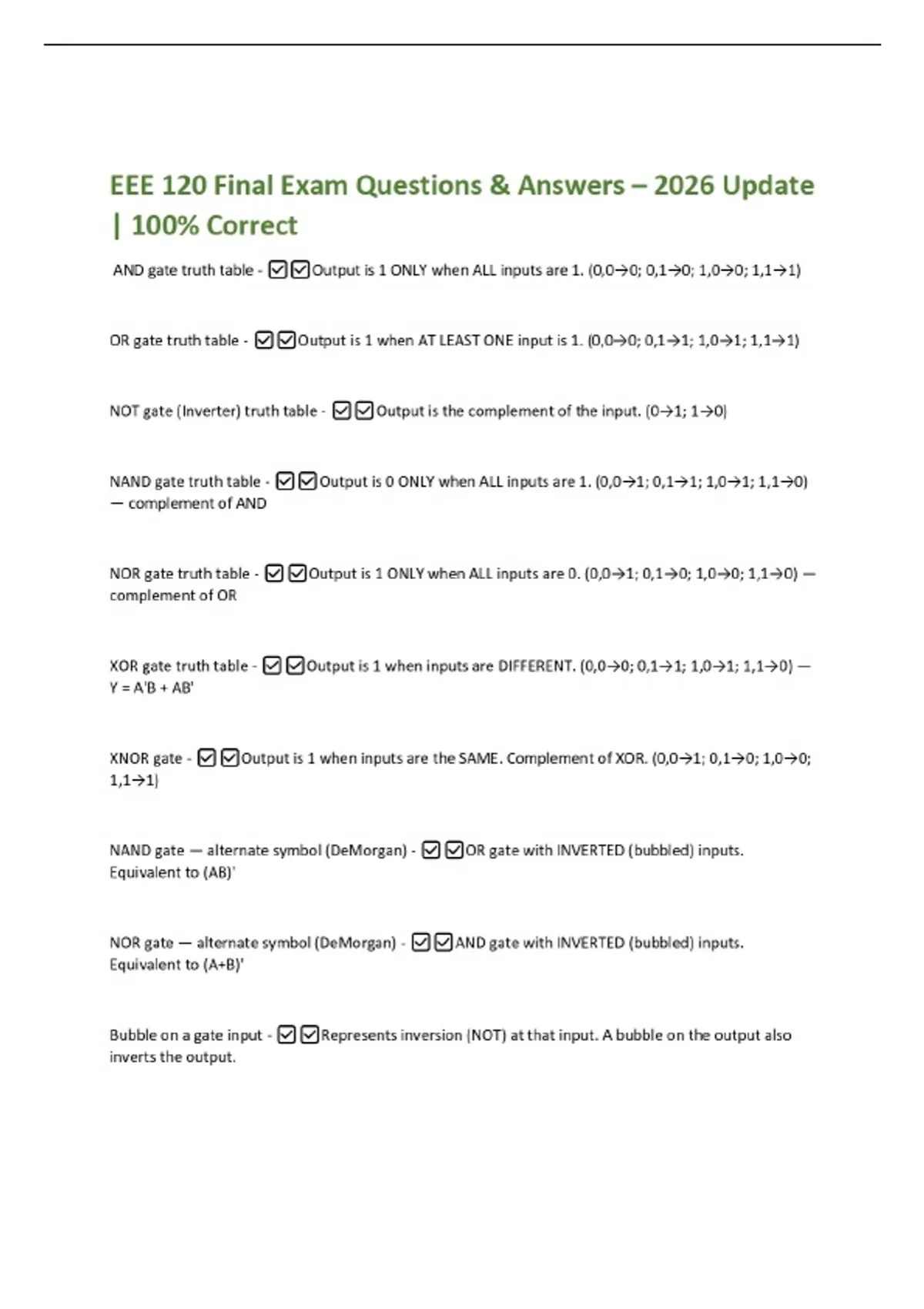

EEE 120 Final Exam Questions & Answers – 2026 Update | 100% Correct AND gate truth table -Output is 1 ONLY when ALL inputs are 1. (0,0→0; 0,1→0; 1,0→0; 1,1→1) OR gate truth table -Output is 1 when AT LEAST ONE input is 1. (0,0→0; 0,1→1; 1,0→1; 1,1→1) NOT gate (Inverter) truth table -Output is the complement of the input. (0→1; 1→0) NAND gate truth table -
