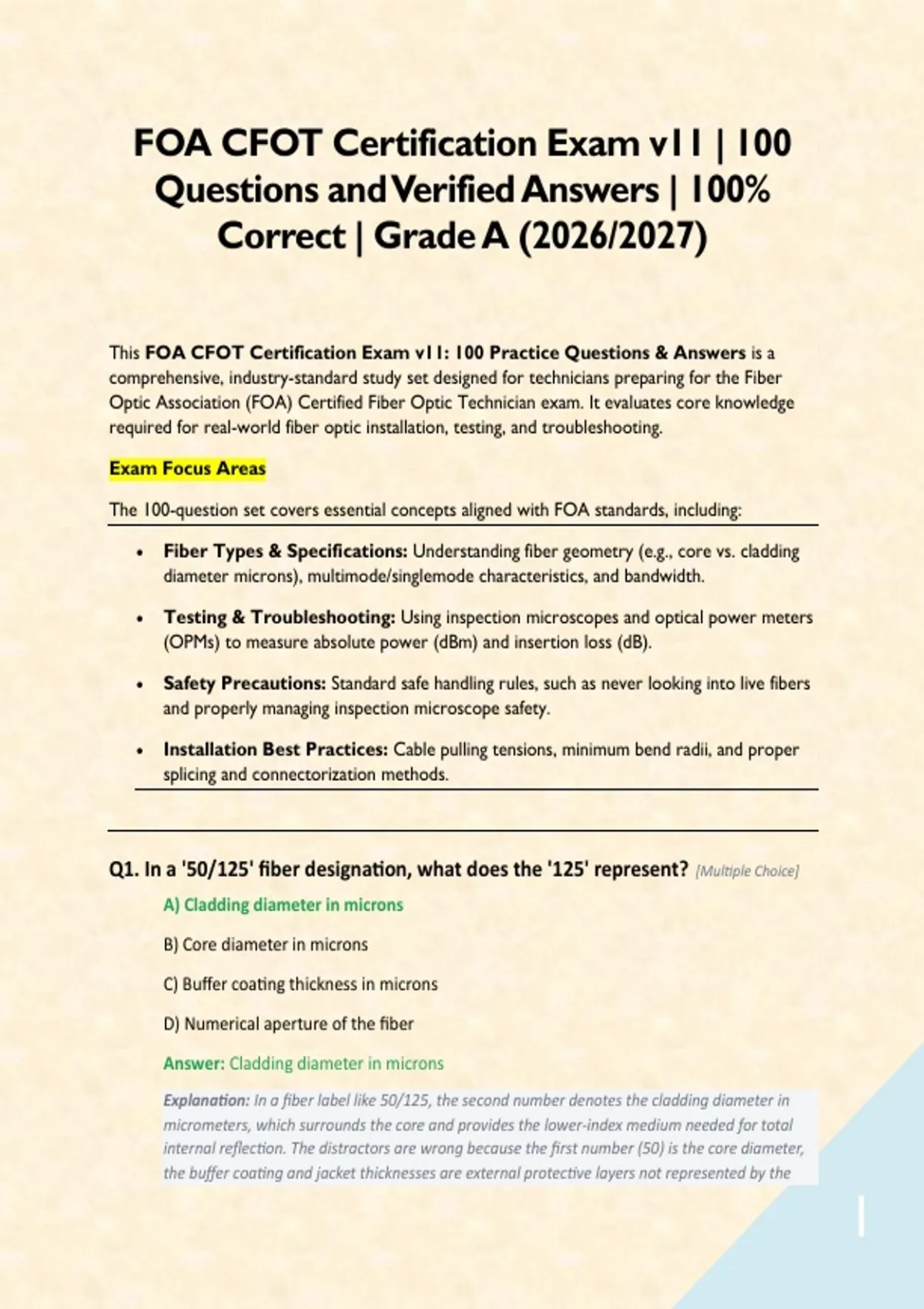

FOA CFOT Certification Exam v11 | 100
Questions and Verified Answers | 100%
Correct | Grade A (2026/2027)
This FOA CFOT Certification Exam v11: 100 Practice Questions & Answers is a
comprehensive, industry-standard study set designed for technicians preparing for the Fiber
Optic Association (FOA) Certified Fiber Optic Technician exam. It evaluates core knowledge
required for real-world fiber optic installation, testing, and troubleshooting.
Exam Focus Areas
The 100-question set covers essential concepts aligned with FOA standards, including:
• Fiber Types & Specifications: Understanding fiber geometry (e.g., core vs. cladding
diameter microns), multimode/singlemode characteristics, and bandwidth.
• Testing & Troubleshooting: Using inspection microscopes and optical power meters
(OPMs) to measure absolute power (dBm) and insertion loss (dB).
• Safety Precautions: Standard safe handling rules, such as never looking into live fibers
and properly managing inspection microscope safety.
• Installation Best Practices: Cable pulling tensions, minimum bend radii, and proper
splicing and connectorization methods.
Q1. In a '50/125' fiber designation, what does the '125' represent? [Multiple Choice]
A) Cladding diameter in microns
B) Core diameter in microns
C) Buffer coating thickness in microns
D) Numerical aperture of the fiber
Answer: Cladding diameter in microns
Explanation: In a fiber label like 50/125, the second number denotes the cladding diameter in
micrometers, which surrounds the core and provides the lower-index medium needed for total
internal reflection. The distractors are wrong because the first number (50) is the core diameter,
the buffer coating and jacket thicknesses are external protective layers not represented by the
1
, second number, and numerical aperture is an optical acceptance parameter rather than a
dimensional cladding measure.
Q2. What does a fiber optic power meter measure, and what additional
measurement can it provide when used with a light source? [Multiple Choice]
A) Absolute power in dBm, and insertion loss in dB when used with a light source
B) Relative power in dB, and return loss when used with a light source
C) Optical wavelength in nm, and attenuation in dB/km
D) Signal modulation format, and bit error rate
Answer: Absolute power in dBm, and insertion loss in dB when used with a light source
Explanation: A power meter directly measures optical power and commonly reports it in dBm
(decibels relative to 1 mW). When paired with a known light source placed at the other end, the
meter can compare launched and received power to compute insertion loss in dB. The distractors
are wrong because a power meter measures absolute, not just relative, power and does not by
itself measure return loss; it does not measure wavelength and attenuation per kilometer (that's
a different test), nor does it evaluate modulation format or bit error rate.
Q3. Explain why using a fiber optic inspection microscope with high-powered
light sources increases the danger to your eyes. [Short Answer]
Answer: Because the microscope concentrates the light emitted from a fiber into a
small, focused beam that can enter the eye, increasing the intensity and the risk of
retinal injury when high-powered sources are used.
Explanation: A fiber inspection microscope acts like a magnifying optics system: it takes the
already focused light leaving a fiber and further concentrates it. That higher irradiance can
damage the eye if the source is powerful, so users must treat fibers and microscopes as potential
eye hazards and use appropriate safety precautions.
Q4. Explain how a fiber optic power meter and a light source are used together
to measure insertion loss. [Short Answer]
Answer: A power meter measures absolute optical power (in dBm); using it with a
known light source you measure the transmitted power and compare it to the source
power. The difference, expressed in dB, is the insertion loss.
Explanation: Insertion loss is the power lost between a source and a receiver. By using a
calibrated light source and measuring absolute power with a meter, you can compute loss as a
logarithmic difference in dB, which is independent of absolute units and convenient for link
budgeting.
2
,Q5. Why can using a fiber optic inspection microscope increase the danger of
high-powered light sources? [Multiple Choice]
A) It focuses the light exiting the fiber into the eye
B) It amplifies optical power inside the fiber
C) It converts optical signals to hazardous electrical currents
D) It diffuses the beam making it harder to detect
Answer: It focuses the light exiting the fiber into the eye
Explanation: An inspection microscope concentrates the light coming out of a fiber into a small
area; that focused beam can deliver hazardous irradiance to the retina. The other choices are
incorrect because microscopes do not increase the actual optical power inside the fiber (they only
concentrate the exiting light), they do not convert light into electrical current, and they do not
diffuse the beam — diffusion would reduce retinal risk rather than increase it.
Q6. Compared with multimode fiber, singlemode fiber generally has what
characteristic in terms of bandwidth? [Multiple Choice]
A) Greater
B) Lower
C) Equivalent
D) Dependent on the cable jacket color
Answer: Greater
Explanation: Singlemode fiber supports propagation of a single spatial mode, which avoids
modal dispersion and therefore enables higher bandwidth over longer distances than multimode
fiber. The distractors are incorrect because singlemode does not have lower bandwidth, it is not
merely equivalent, and jacket color has no bearing on the fiber's inherent bandwidth.
Q7. Explain why OM3 and OM4 multimode fibers are often chosen for premises
cabling in gigabit networks. [Short Answer]
Answer: OM3 and OM4 multimode fibers are laser‑optimized, meaning their design
supports longer transmission distances when used with laser sources, making them
better for gigabit networks.
Explanation: Laser‑optimized multimode fibers have core and refractive-index profiles tuned to
reduce modal dispersion for laser wavelengths. That reduces signal spreading over distance, so
gigabit laser transmitters can run farther over OM3/OM4 than over older multimode types.
3
, Q8. Why are connector ferrule ends polished to a PC finish? [Short Answer]
Answer: The ferrule end is polished to a PC (physical contact) finish to reduce
reflectance and thereby reduce return loss as well as insertion loss.
Explanation: Polishing the ferrule so fiber ends make physical contact minimizes tiny air gaps and
surface irregularities that cause reflections. Lower reflectance improves signal quality and
reduces both reflected power (which can interfere with transmitters) and insertion loss at the
connection.
Q9. What is the generally specified minimum bend radius for a cable while it is
under tension during pulling? [Multiple Choice]
A) 20 times the cable diameter
B) 10 times the cable diameter
C) 2 times the cable diameter
D) Equal to the cable diameter
Answer: 20 times the cable diameter
Explanation: Cable manufacturers and installation standards typically specify minimum bend
radius under tension as a multiple of the cable diameter to prevent excessive bend-induced stress
and optical loss; 20× the cable diameter is commonly specified for pulls. The distractors are
incorrect because 10×, 2×, or equal to the diameter are much smaller radii that would risk fiber
damage or excessive loss during a tensioned pull.
Q10. In a '62.5/125' fiber designation, what does the '62.5' represent? [Multiple
Choice]
A) Core diameter in microns
B) Cladding diameter in microns
C) Primary buffer coating thickness in microns
D) Numerical aperture value
Answer: Core diameter in microns
Explanation: The first number in a fiber designation such as 62.5/125 is the core diameter,
expressed in micrometers, which defines the light-guiding region. The distractors are incorrect
because the 125 value (not the first number) refers to cladding diameter, the buffer coating
thickness is an external protective layer not represented by the first number, and numerical
aperture is a different property describing light acceptance angle rather than a dimensional
measure.
4
