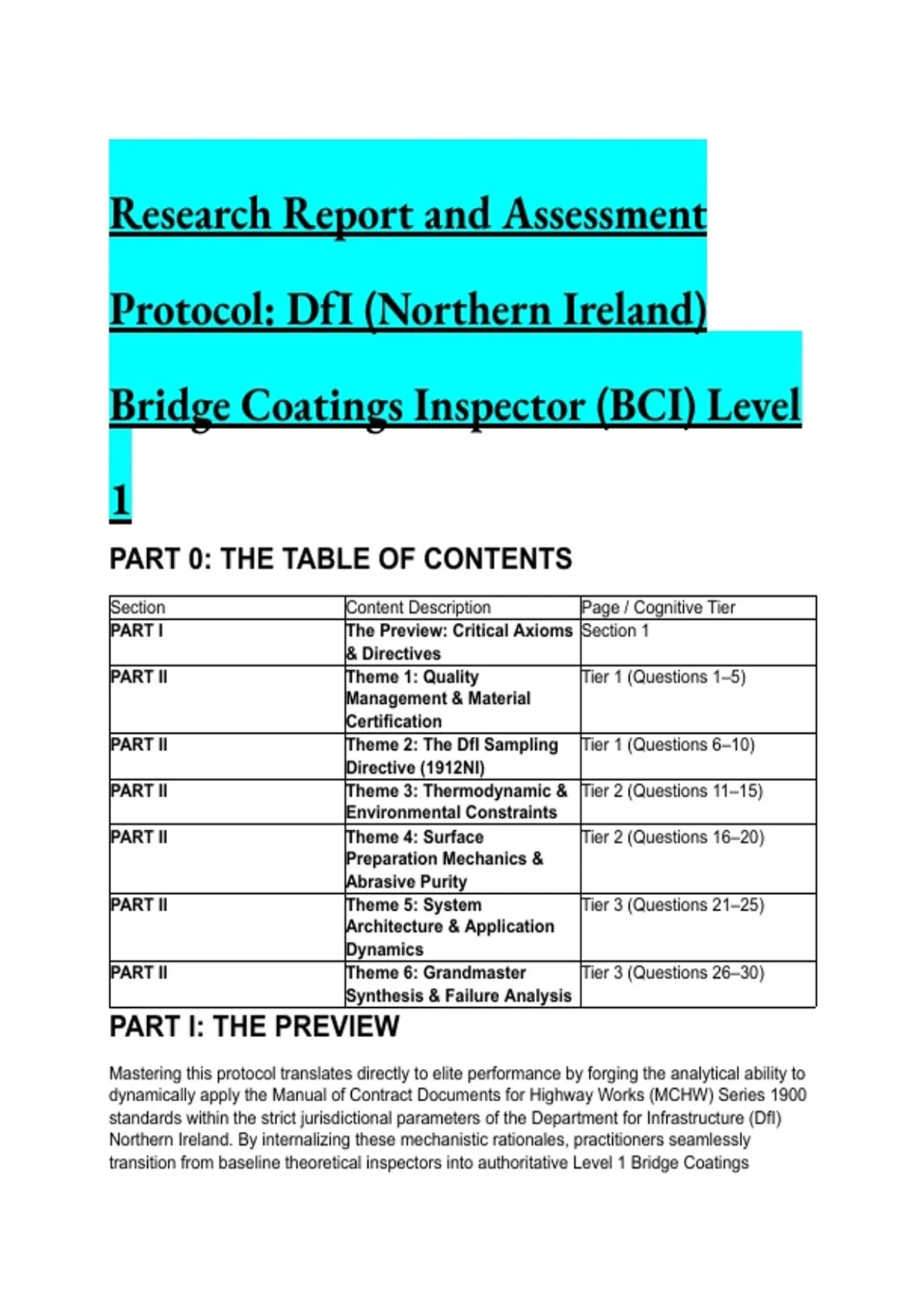

Research Report and Assessment
Protocol: DfI (Northern Ireland)
Bridge Coatings Inspector (BCI) Level
1
PART 0: THE TABLE OF CONTENTS
Section Content Description Page / Cognitive Tier
PART I The Preview: Critical Axioms Section 1
& Directives
PART II Theme 1: Quality Tier 1 (Questions 1–5)
Management & Material
Certification
PART II Theme 2: The DfI Sampling Tier 1 (Questions 6–10)
Directive (1912NI)
PART II Theme 3: Thermodynamic & Tier 2 (Questions 11–15)
Environmental Constraints
PART II Theme 4: Surface Tier 2 (Questions 16–20)
Preparation Mechanics &
Abrasive Purity
PART II Theme 5: System Tier 3 (Questions 21–25)
Architecture & Application
Dynamics
PART II Theme 6: Grandmaster Tier 3 (Questions 26–30)
Synthesis & Failure Analysis
PART I: THE PREVIEW
Mastering this protocol translates directly to elite performance by forging the analytical ability to
dynamically apply the Manual of Contract Documents for Highway Works (MCHW) Series 1900
standards within the strict jurisdictional parameters of the Department for Infrastructure (DfI)
Northern Ireland. By internalizing these mechanistic rationales, practitioners seamlessly
transition from baseline theoretical inspectors into authoritative Level 1 Bridge Coatings
,Inspectors (BCI) capable of zero-defect QA/QC oversight.
The "Critical Axioms" Cheat Sheet:
● The DfI Sampling Directive (1912NI): 'A' Samples must be taken from previously
unopened tins, requiring 3 to 4 weeks for testing by the DRD (Northern Ireland) Roads
Service. 'B' Samples are drawn directly from active application equipment.
● The Atmospheric Hard-Deck: Application is strictly forbidden if the steel surface
temperature is less than 3ºC above the Dew Point, if ambient temperature drops below
5ºC, or if relative humidity exceeds 80% in an enclosed workshop or 90% on site.
● The Wet/Dry Blast Sequence: When combining surface preparation methods, wet
cleaning and abrading MUST be completed and rinsed prior to dry blast cleaning to
prevent flash rust and preserve the required anchor profile.
● The Stripe Coat Mandate: Two stripe coats (one workshop, one site) are non-negotiable
on all welds, fasteners, and external corners, excluding Rectangular Hollow Sections
(RHS).
● The Abrasive Purity Law: Conductimetric analysis of abrasives via ASTM D4940
measures water-soluble ionic contamination; elevated conductivity (>1000 µS/cm)
guarantees osmotic blistering.
PART II: THE ELITE TEST BANK
Theme 1: Quality Management & Material Certification
The integrity of structural steel protection on Northern Ireland's highway network relies on a
dual-certification governance structure. At the applicator level, the National Highway Sector
Scheme (NHSS) 19A dictates the quality management system requirements for the corrosion
protection of ferrous materials by industrial coatings. This scheme ensures that all personnel
engaged in surface preparation and paint application are formally trained and certificated
through recognized programs, such as the Institute of Corrosion (ICorr) Industrial Coatings
Applicator Training Scheme (ICATS) or SSPC TrainThePainter. NHSS 19A compliance is a
mandatory prerequisite for any contractor tendering for transportation infrastructure works.
Simultaneously, the materials utilized must undergo rigorous empirical validation. Under the
MCHW Series 1900 framework, all paints applied to the Works must possess a current BBA
HAPAS (Highway Authorities Product Approval Scheme) Roads and Bridges Certificate, or an
equivalent. BBA HAPAS certification subjects coating systems to exhaustive evaluations,
including cyclic salt fog and UV exposure testing to ASTM D5894, ensuring that the selected
systems achieve the specified design life. The administrative tracking of these certified systems
is maintained via the Form HA/P1 (New Works) Paint System Sheet, which acts as the
contractual spine linking the design intent with field execution.
Certification Framework Scope of Assessment Key Requirement
NHSS 19A Applicator Competence & Mandatory ICorr/ICATS or
Quality Management TrainThePainter certification for
all operatives.
BBA HAPAS Coating System Performance Valid Certificate required for all
applied paints; verified via Form
HA/P1.
Q1: A contractor tendering for a DfI bridge rehabilitation project submits documentation proving
their operatives are certified under the SSPC TrainThePainter scheme. The Project Manager
, questions whether this satisfies the MCHW requirements for applicator competence. Based on
current governance frameworks, which conclusion is the MOST ACCURATE? A) The operatives
must immediately retrain under a proprietary DRD (Northern Ireland) internal certification
scheme. B) The certification is inadequate; only structural engineers can approve coating
applications on DfI projects. C) The certification satisfies the requirement, as SSPC
TrainThePainter meets the required standard for compliance with the NHSS 19A Institute of
Corrosion (ICorr) REQ DOC. D) The certification is only valid if the paint utilized lacks a BBA
HAPAS certificate.
● The Answer: C (The certification satisfies the requirement, as SSPC TrainThePainter
meets the required standard for compliance with the NHSS 19A Institute of Corrosion
(ICorr) REQ DOC.)
● Distractor Analysis:
○ A is incorrect: NHSS 19A is the accepted standard; DfI does not require a
proprietary, isolated DRD training scheme for applicators.
○ B is incorrect: Structural engineers design the bridge; certified industrial coating
applicators execute the corrosion protection under NHSS 19A.
○ D is incorrect: Applicator competence (NHSS 19A) and material certification (BBA
HAPAS) are mutually inclusive and mandatory; one does not negate the other.
The Mentor's Analysis: Governance of the workforce is as critical as the chemistry of the paint.
NHSS 19A acts as the overarching quality management umbrella, officially recognizing
specialized training schemes like SSPC TrainThePainter to ensure field operatives possess
validated, standardized competence. Professional/Academic Intuition: Trust the paint, but
verify the painter. NHSS 19A is the mandatory verification mechanism for human competence.
Q2: During the preparation of the QA/QC documentation package, the BCI Level 1 is instructed
to compile the necessary Form HA/P1 and Form HA/P2 documents. What is the fundamental
distinction between these two critical documents under MCHW Series 1900? A) Form HA/P1
details the structural calculations of the bridge, while Form HA/P2 provides the visual
cleanliness grades. B) Form HA/P1 is the Paint System Sheet outlining the required coats and
dry film thicknesses, whereas Form HA/P2 is the Paint Data Sheet providing specific chemical
properties and application instructions from the manufacturer. C) Form HA/P1 is used
exclusively for workshop painting, and Form HA/P2 is restricted to site painting operations. D)
Form HA/P1 verifies the calibration of the non-destructive testing equipment, while Form HA/P2
logs the daily environmental conditions.
● The Answer: B (Form HA/P1 is the Paint System Sheet outlining the required coats and
dry film thicknesses, whereas Form HA/P2 is the Paint Data Sheet providing specific
chemical properties and application instructions from the manufacturer.)
● Distractor Analysis:
○ A is incorrect: These forms relate exclusively to paint systems, not structural load
calculations or abrasive blast grading.
○ C is incorrect: Both forms are highly integrated and apply to the entirety of the
coating lifecycle, encompassing both shop and site environments.
○ D is incorrect: Equipment calibration and environmental logging are recorded on
separate daily inspection reports, not on the formal HA/P system definition sheets.
The Mentor's Analysis: The HA/P forms form the administrative baseline for all highway
coating projects. HA/P1 is the "architectural blueprint" showing what system goes where and
how thick it must be. HA/P2 is the "chemical manual" provided by the manufacturer, detailing
specific gravities, volume solids, and overcoating intervals. Professional/Academic Intuition:
HA/P1 is the What; HA/P2 is the How. Both are required before a single drop of paint is applied.
