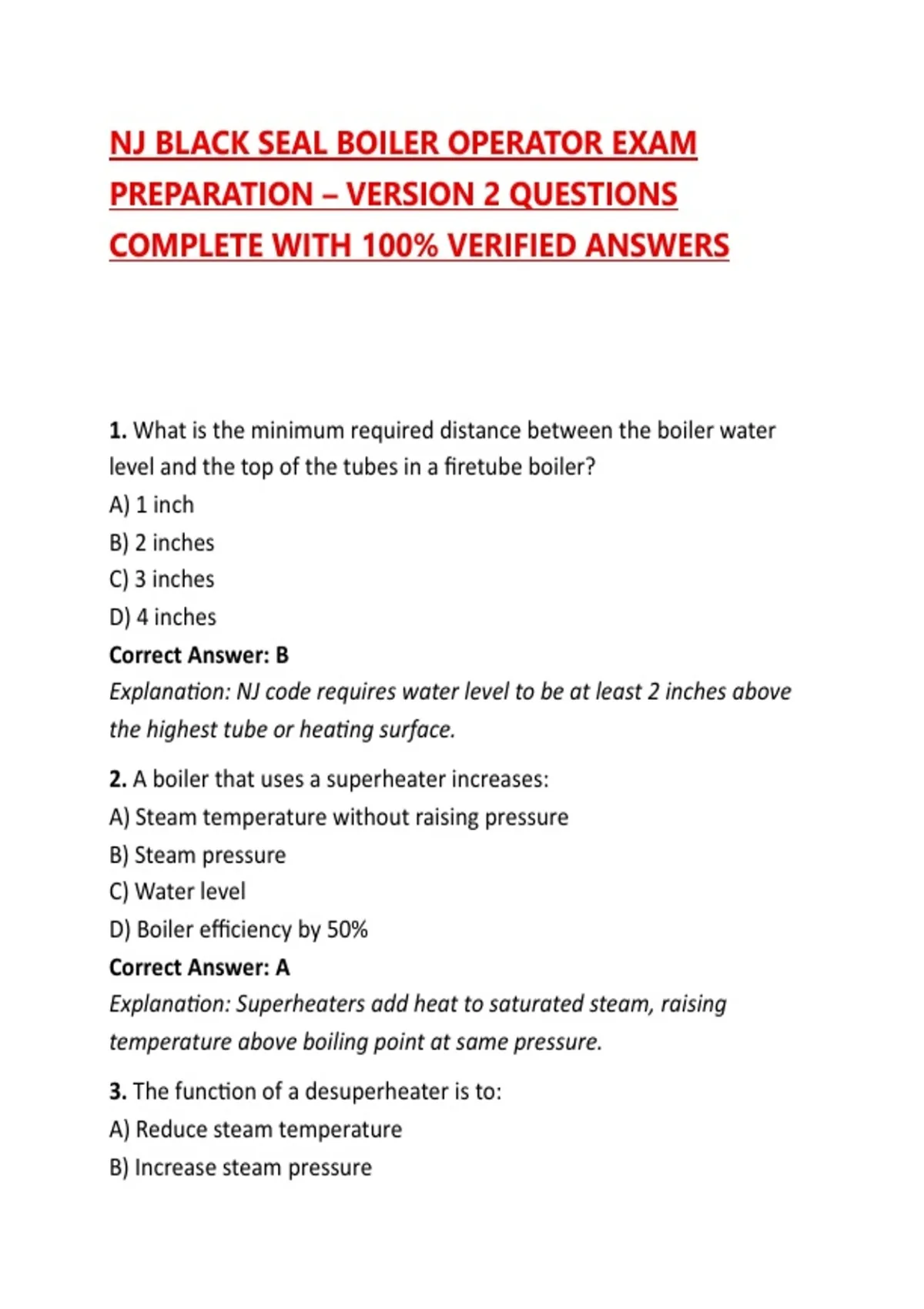

NJ BLACK SEAL BOILER OPERATOR EXAM
PREPARATION – VERSION 2 QUESTIONS
COMPLETE WITH 100% VERIFIED ANSWERS
1. What is the minimum required distance between the boiler water
level and the top of the tubes in a firetube boiler?
A) 1 inch
B) 2 inches
C) 3 inches
D) 4 inches
Correct Answer: B
Explanation: NJ code requires water level to be at least 2 inches above
the highest tube or heating surface.
2. A boiler that uses a superheater increases:
A) Steam temperature without raising pressure
B) Steam pressure
C) Water level
D) Boiler efficiency by 50%
Correct Answer: A
Explanation: Superheaters add heat to saturated steam, raising
temperature above boiling point at same pressure.
3. The function of a desuperheater is to:
A) Reduce steam temperature
B) Increase steam pressure
,C) Remove dissolved gases
D) Add moisture to steam
Correct Answer: A
Explanation: Desuperheaters inject water into superheated steam to
lower temperature for certain processes.
4. A boiler’s steam drum internal cyclone separators:
A) Remove moisture from steam using centrifugal force
B) Add chemicals
C) Increase pressure
D) Reduce fuel flow
Correct Answer: A
Explanation: Cyclone separators spin steam to throw water droplets out,
improving steam quality.
5. What is the purpose of a boiler’s downcomer tube?
A) Carry water from steam drum to mud drum
B) Carry steam to the superheater
C) Carry flue gas
D) Carry fuel to burner
Correct Answer: A
Explanation: Downcomers circulate water downward from steam drum
to lower drums in watertube boilers.
6. A boiler with an induced draft fan will have furnace pressure that is:
A) Positive
B) Negative (below atmospheric)
C) Equal to atmospheric
D) Fluctuating randomly
Correct Answer: B
,Explanation: Induced draft fans pull flue gases, creating negative
pressure in the furnace.
7. The maximum allowable pressure for a low-pressure steam boiler is:
A) 15 psig
B) 30 psig
C) 50 psig
D) 100 psig
Correct Answer: A
*Explanation: Low-pressure steam boilers operate at or below 15 psig
per ASME Section IV.*
8. When a boiler is in standby, the main steam valve should be:
A) Fully closed and locked
B) Cracked open
C) Fully open
D) Removed
Correct Answer: A
Explanation: Standby boilers are isolated from the header to prevent
backflow and pressure loss.
9. What is the purpose of a bypass damper on a boiler?
A) Divert flue gases around economizer or air heater
B) Increase draft
C) Reduce fuel flow
D) Control water level
Correct Answer: A
Explanation: Bypass dampers allow flue gas to bypass heat recovery
equipment during startup or low load.
, 10. A boiler’s refractory must be inspected for:
A) Cracks and spalling
B) Water level
C) Fuel pressure
D) Steam purity
Correct Answer: A
Explanation: Cracked refractory can cause heat damage to boiler casing
and reduce efficiency.
11. What is the maximum temperature for a low-pressure hot water
boiler?
A) 200°F
B) 212°F
C) 250°F
D) 350°F
Correct Answer: C
*Explanation: ASME Section IV limits low-pressure hot water boilers to
250°F.*
12. A boiler operator who leaves the boiler room while the boiler is
firing without an automatic low-water cutoff is:
A) Violating NJ code
B) Acceptable if pressure is low
C) Allowed for 15 minutes
D) Permitted with a license
Correct Answer: A
Explanation: Without automatic low-water cutoff, continuous
attendance is required by law.
