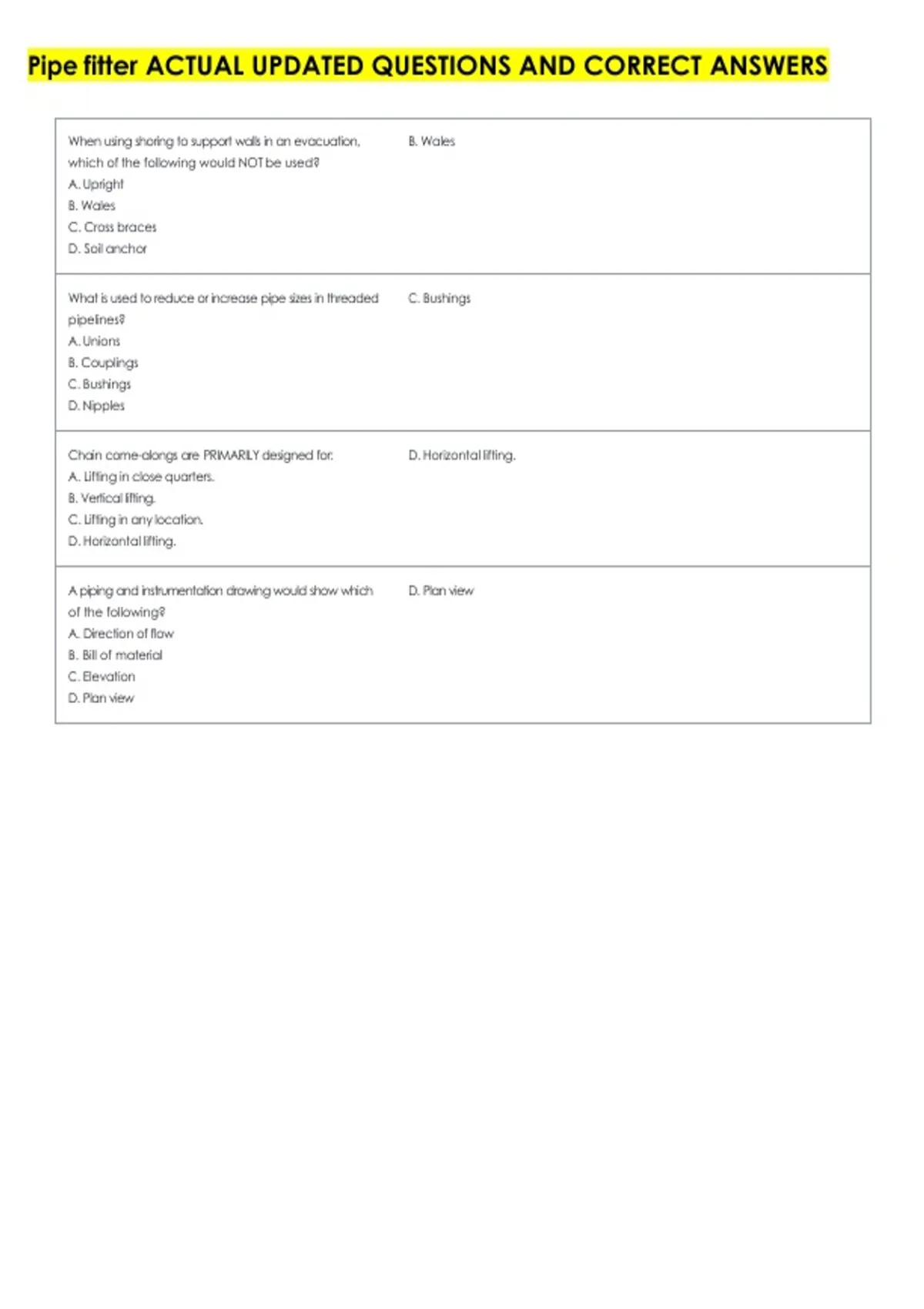

Pipe fitter ACTUAL UPDATED QUESTIONS AND CORRECT ANSWERS
When using shoring to support walls in an evacuation, B. Wales
which of the following would NOT be used?
A. Upright
B. Wales
C. Cross braces
D. Soil anchor
What is used to reduce or increase pipe sizes in threaded C. Bushings
pipelines?
A. Unions
B. Couplings
C. Bushings
D. Nipples
Chain come-alongs are PRIMARILY designed for: D. Horizontal lifting.
A. Lifting in close quarters.
B. Vertical lifting.
C. Lifting in any location.
D. Horizontal lifting.
A piping and instrumentation drawing would show which D. Plan view
of the following?
A. Direction of flow
B. Bill of material
C. Elevation
D. Plan view
, Thrust blocks shall be placed against: D. compacted soil.
A. the top of the pipe.
B. the side of the pipe.
C. undisturbed soil.
D. compacted soil.
What type of working application should be used on a A. Fillet-weld
slip-on flange?
A. Fillet-weld
B. Stitch-weld
C. Butt-weld
D. Socket-weld
While installing a 3-inch diameter pipe run under a beam, B. 21 feet 10 ¼ inches
beam clamps and clevis hangers are used. The
REQUIRED centerline elevation for the pipe is 22 feet at
both beams. What is the BOP elevation for the 3-inch
pipe?
A. 21 feet 9 ¾ inches
B. 21 feet 10 ¼ inches
C. 22 feet
D. 22 feet 1 ¾ inches
A line drawn along the surface of the pipe at division B. an ordinate line.
points that serves as a guide for cutting miters and
making contours is known as:
A. centerline.
B. an ordinate line.
C. a piece mark.
D. a chalk line.
Find the lowest common denominator for 1/8 and 1/2. D. 8
A. 3
B. 5
C. 7
D. 8
What is the purpose of a high-point vent during B. To bleed out the air from the system that is being hydrated
hydrotesting?
A. To maintain and control water pressure in the upper
part of the pipe
B. To bleed out the air from the system that is being
hydrated
C. To control the directional flow of pressurized water
through the pipe
D. To serve as an entry point for filling the pipe with
hydrotest water
