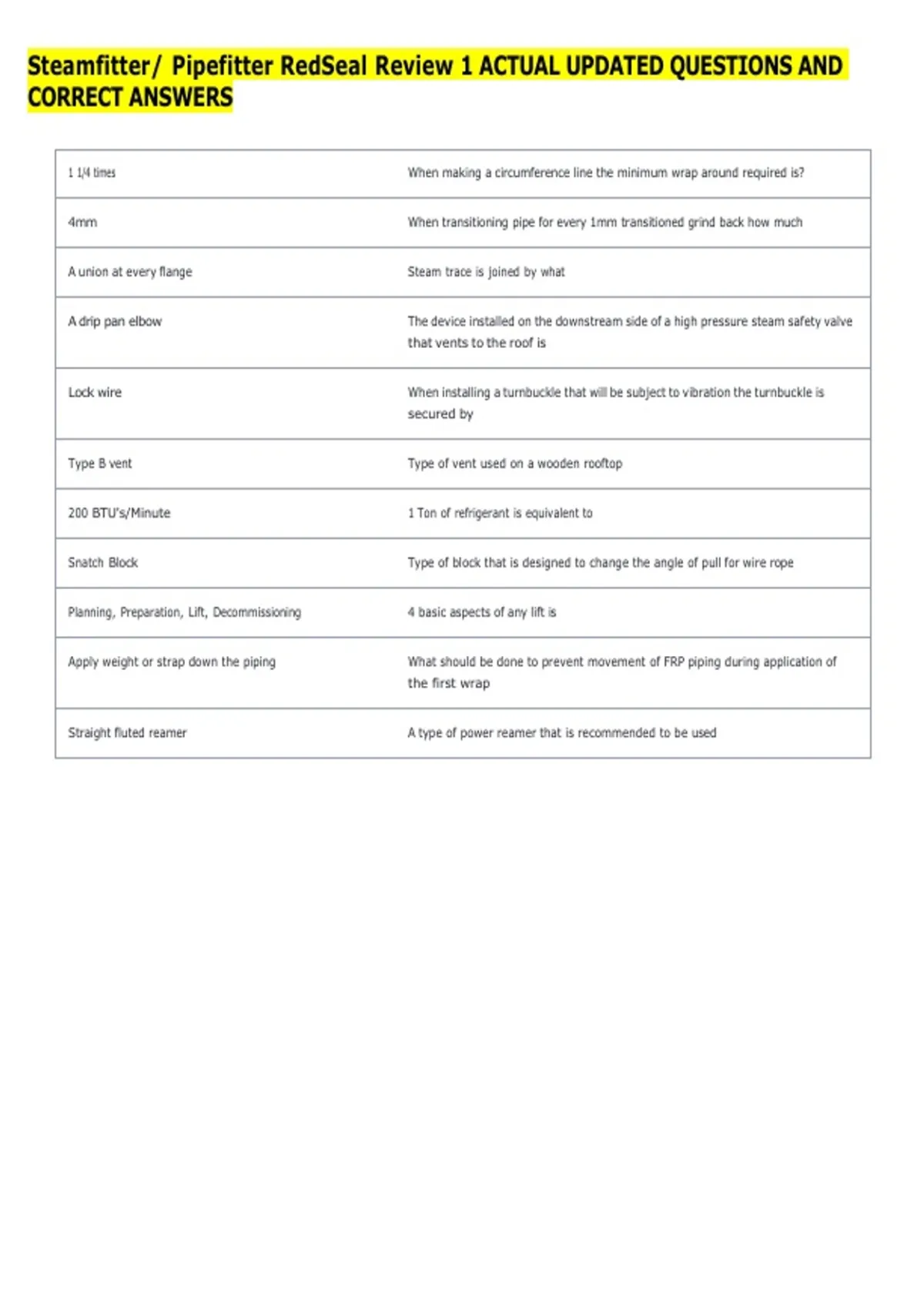

Steamfitter/ Pipefitter RedSeal Review 1 ACTUAL UPDATED QUESTIONS AND
CORRECT ANSWERS
1 1/4 times When making a circumference line the minimum wrap around required is?
4mm When transitioning pipe for every 1mm transitioned grind back how much
A union at every flange Steam trace is joined by what
A drip pan elbow The device installed on the downstream side of a high pressure steam safety valve
that vents to the roof is
Lock wire When installing a turnbuckle that will be subject to vibration the turnbuckle is
secured by
Type B vent Type of vent used on a wooden rooftop
200 BTU's/Minute 1 Ton of refrigerant is equivalent to
Snatch Block Type of block that is designed to change the angle of pull for wire rope
Planning, Preparation, Lift, Decommissioning 4 basic aspects of any lift is
Apply weight or strap down the piping What should be done to prevent movement of FRP piping during application of
the first wrap
Straight fluted reamer A type of power reamer that is recommended to be used
, Check the oil level When no oil is coming out of a automatic oiler you
Spring hanger What type of hanger is used when installing vertical pipe
Safety glasses and Face shield The proper PPE when using a wire wheel on a grinder
mechanical drawing Type of drawing to find a boiler fitting
Spool drawing Type of drawing to find the shop fabrication of a spool
Saves on time Purpose of gathering tools and equipment before starting work
A pigtail To protect a pressure gauge you need to have what installed
Lightweight and corrosive resistant The reason for using FRP
Yellow Color code for natural gas
Clean surface, Apply tape and Electromagnetic test When preparing yellow jacket after welding you
Neutral flame The best flame to use when using Oxygen/Acetylene
Acetone The substance added to acetylene
1x the pipe wall thickness Minimum thickness for a blind flange
Shackles When making a lift what do you use to join slings together
400 lbs A single block hoisting assembly has a lead line pull of 200 lbs. The total load on
the block if the lines are parallel to one another is
Install a pressure relief device The first thing to do before a pneumatic pressure test
Union, Pump shut off valve, Pressure bleed valve, What components are used to make up a pressure test harness
Pressure gauge and Recorder connection outlet
Drill correct size hole, insert anchor and tighten locking A pipe is being suspended to a concrete structure with a 5/8" wedge type and
nut stub fasteners for supports. What is the correct procedure for installing an
expanding type anchor
High pressure hose Type of hose used when water testing with hydrostatic pump
Install safety valve on main line The first step when preparing for an air test
Crane operator Who has the final say when making a lift
Extension ladder What is installed in a trench to exit for emergencies
