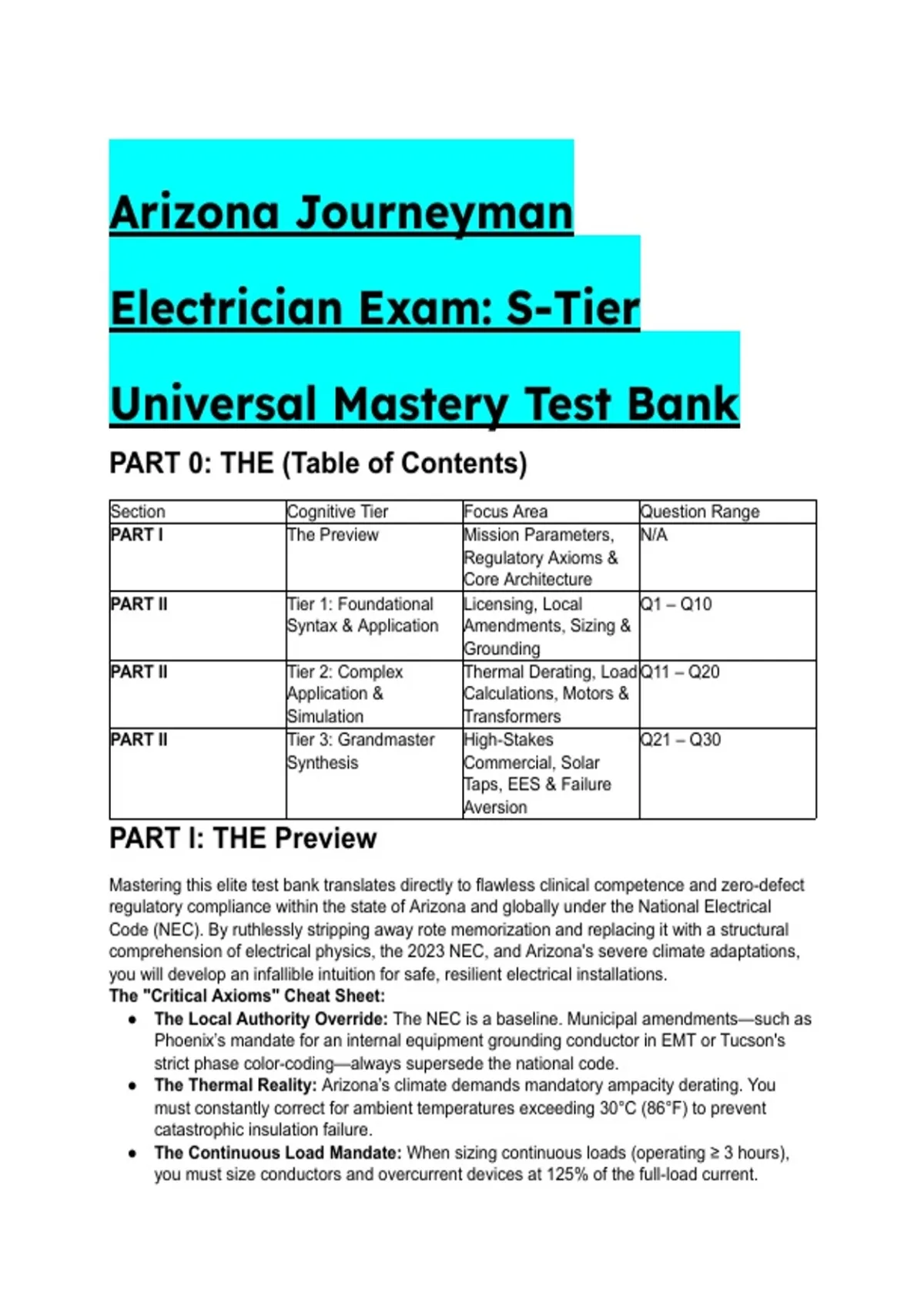

Arizona Journeyman
Electrician Exam: S-Tier
Universal Mastery Test Bank
PART 0: THE (Table of Contents)
Section Cognitive Tier Focus Area Question Range
PART I The Preview Mission Parameters, N/A
Regulatory Axioms &
Core Architecture
PART II Tier 1: Foundational Licensing, Local Q1 – Q10
Syntax & Application Amendments, Sizing &
Grounding
PART II Tier 2: Complex Thermal Derating, Load Q11 – Q20
Application & Calculations, Motors &
Simulation Transformers
PART II Tier 3: Grandmaster High-Stakes Q21 – Q30
Synthesis Commercial, Solar
Taps, EES & Failure
Aversion
PART I: THE Preview
Mastering this elite test bank translates directly to flawless clinical competence and zero-defect
regulatory compliance within the state of Arizona and globally under the National Electrical
Code (NEC). By ruthlessly stripping away rote memorization and replacing it with a structural
comprehension of electrical physics, the 2023 NEC, and Arizona's severe climate adaptations,
you will develop an infallible intuition for safe, resilient electrical installations.
The "Critical Axioms" Cheat Sheet:
● The Local Authority Override: The NEC is a baseline. Municipal amendments—such as
Phoenix’s mandate for an internal equipment grounding conductor in EMT or Tucson's
strict phase color-coding—always supersede the national code.
● The Thermal Reality: Arizona’s climate demands mandatory ampacity derating. You
must constantly correct for ambient temperatures exceeding 30°C (86°F) to prevent
catastrophic insulation failure.
● The Continuous Load Mandate: When sizing continuous loads (operating ≥ 3 hours),
you must size conductors and overcurrent devices at 125% of the full-load current.
, ● The Townhouse Perimeter: Feeders supplying attached single-family dwelling units
(townhouses) cannot pass through, beneath, or above adjacent units.
● The Island Receptacle Evolution: Under the 2023 NEC, kitchen island receptacles are
now optional to prevent cord-pull hazards, but future provisioning via raceway to a
junction box is absolute.
Standardized Arizona Phase & Thermal Matrices
To execute the subsequent calculations flawlessly, internalize the structural matrices adopted by
major Arizona jurisdictions.
Volts / System Phase A Phase B Phase C Grounded
Conductor
120/208V Black Red Blue White
(3-Phase WYE)
277/480V Brown Orange Yellow Grey
(3-Phase WYE)
120/240V Black Orange (High-Leg) Red White
(3-Phase DELTA)
Based on City of Tucson Amendments to the 2023 NEC, Section 210.5(C)(1).
Ambient Ambient 60°C Conductor 75°C Conductor 90°C Conductor
Temperature (°C) Temperature (°F) Factor Factor Factor
36 – 40 96 – 104 0.82 0.88 0.91
41 – 45 105 – 113 0.71 0.82 0.87
46 – 50 114 – 122 0.58 0.75 0.82
Based on NEC Table 310.15(B)(1) Ambient Temperature Correction Factors.
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: A contractor holding an Arizona ROC R-11 license secures a bid to install a 400A service
for a light commercial strip mall. Based on the principles of the Arizona Registrar of Contractors
(ROC) licensing scopes, which action or conclusion is the MOST ACCURATE? A) The
contractor may perform the work provided the service operates strictly under 600 volts. B) The
contractor may perform the work if a certified journeyman electrician oversees the site
continuously. C) The contractor cannot legally perform this work as it strictly requires a C-11 or
CR-11 classification. D) The contractor may perform the work provided they secure a secondary
commercial variance permit from the local Authority Having Jurisdiction (AHJ).
● The Answer: C (The contractor cannot legally perform this work as it strictly requires a
C-11 or CR-11 classification)
● Distractor Analysis:
○ A is incorrect: While the 600-volt threshold defines the upper limit of a C-11
(Commercial) scope, the R-11 license is strictly, legally confined to residential
properties.
○ B is incorrect: Arizona regulates the business entity (the contractor) at the state
level via the ROC, not the individual journeyman. The business entity's license
scope dictates legal operation.
, ○ D is incorrect: Municipal permits manage structural compliance; they cannot
override state-level ROC licensing statutes and legal contracting classifications.
The Mentor's Analysis: Scope of practice is an absolute legal perimeter. An R-11 license
restricts operations entirely to residential dwellings. Performing commercial infrastructure work
under a residential license is a direct violation of A.R.S. Title 32, immediately invalidating liability
bonds and exposing the contractor to severe punitive action. By utilizing the proper C-11 or dual
CR-11 license, the firm bypasses the trap of unlicensed contracting charges.
Professional/Academic Intuition: Never cross the residential/commercial boundary
without a Dual (CR) or dedicated Commercial (C) license classification.
Q2: A journeyperson in Phoenix is installing a branch circuit within a newly constructed
residential kitchen. Based on the 2023 NEC and specific Phoenix local amendments regarding
island countertops, which installation protocol is the MOST ACCURATE? A) One 20-amp small
appliance receptacle MUST be installed on the vertical side of the island. B) The island
receptacle is optional; however, if omitted, a raceway must be routed to the island for future
receptacle provisioning. C) Listed pop-up receptacles are strictly banned from island
countertops due to severe spill hazards. D) Two receptacles are required if the island exceeds
24 inches in width and 60 inches in total length.
● The Answer: B (The island receptacle is optional; however, if omitted, a raceway must be
routed to the island for future receptacle provisioning)
● Distractor Analysis:
○ A is incorrect: The 2023 NEC explicitly removed the mandate for side-mounted
island receptacles to eliminate the hazard of children pulling appliances down by
their hanging cords.
○ C is incorrect: Flush-mounted, listed pop-up receptacle assemblies are the
preferred and explicitly code-compliant method for island countertops under the
2023 NEC.
○ D is incorrect: This formula reflects an outdated legacy requirement from the 2020
NEC that was completely overhauled to prioritize child safety.
The Mentor's Analysis: Safety codes evolve in response to injury data. The transition from
mandated side-mounted receptacles to optional or flush-mounted installations eliminates the
physical hazard of overhanging appliance cords. By utilizing the raceway-provisioning rule, the
installer bypasses the trap of permanently locking out future electrical utility for the homeowner
while maintaining immediate compliance. Professional/Academic Intuition: Under the 2023
NEC, kitchen island receptacles are an option, but the infrastructure to support them in
the future is a non-negotiable mandate.
Q3: A journeyperson is running a 20A, 120V circuit through a commercial building using
Electrical Metallic Tubing (EMT). The installation is located within the City of Phoenix. Based on
the Phoenix amendments to NEC 250.118, which grounding methodology is MOST
ACCURATE? A) The EMT itself may serve as the sole equipment grounding conductor for the
circuit. B) The EMT may serve as the equipment grounding conductor only if the entire
continuous run is under 6 feet. C) An additional, separate wire-type equipment grounding
conductor must be installed inside the EMT. D) The EMT must be bonded at every coupling
using an external copper bonding jumper.
● The Answer: C (An additional, separate wire-type equipment grounding conductor must
be installed inside the EMT)
● Distractor Analysis:
○ A is incorrect: While the baseline NEC permits EMT to act as an equipment
grounding conductor (EGC), the City of Phoenix specifically amended 250.118(4) to
