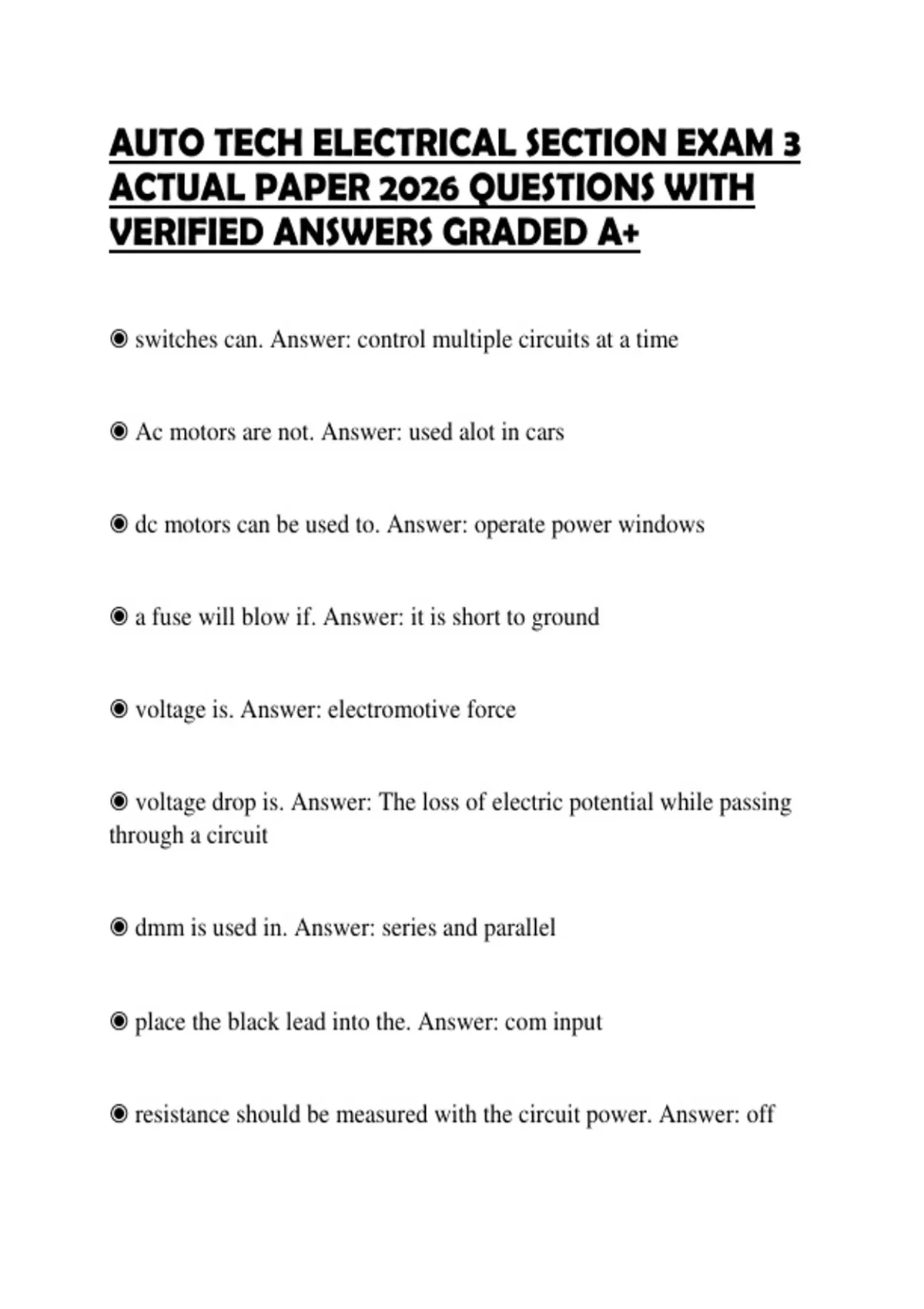

AUTO TECH ELECTRICAL SECTION EXAM 3
ACTUAL PAPER 2026 QUESTIONS WITH
VERIFIED ANSWERS GRADED A+
◉ switches can. Answer: control multiple circuits at a time
◉ Ac motors are not. Answer: used alot in cars
◉ dc motors can be used to. Answer: operate power windows
◉ a fuse will blow if. Answer: it is short to ground
◉ voltage is. Answer: electromotive force
◉ voltage drop is. Answer: The loss of electric potential while passing
through a circuit
◉ dmm is used in. Answer: series and parallel
◉ place the black lead into the. Answer: com input
◉ resistance should be measured with the circuit power. Answer: off
, ◉ if the engines flywheel were to drive the starter pinon. Answer: the
starter will be damaged
◉ when measuring resistance place the red lead into the. Answer: v(ohm
symbol) input
◉ the battery. Answer: supplies extra power to electrical system when
the electrical load exceeds
◉ voltage drop across all loads in a series circuit will add up all the.
Answer: source voltage
◉ when amperage goes up the and the voltage remains the same
resistance. Answer: will increase
◉ adding a extra resistive branch to a parallel circuit makes the total
resistance. Answer: increase
◉ green fuses have a current rating of. Answer: 30 a
◉ 2.5 k ohms equal. Answer: 2500 ohms
◉ source begins at. Answer: the positive terminal
◉ when temperature drops battery power. Answer: drops
