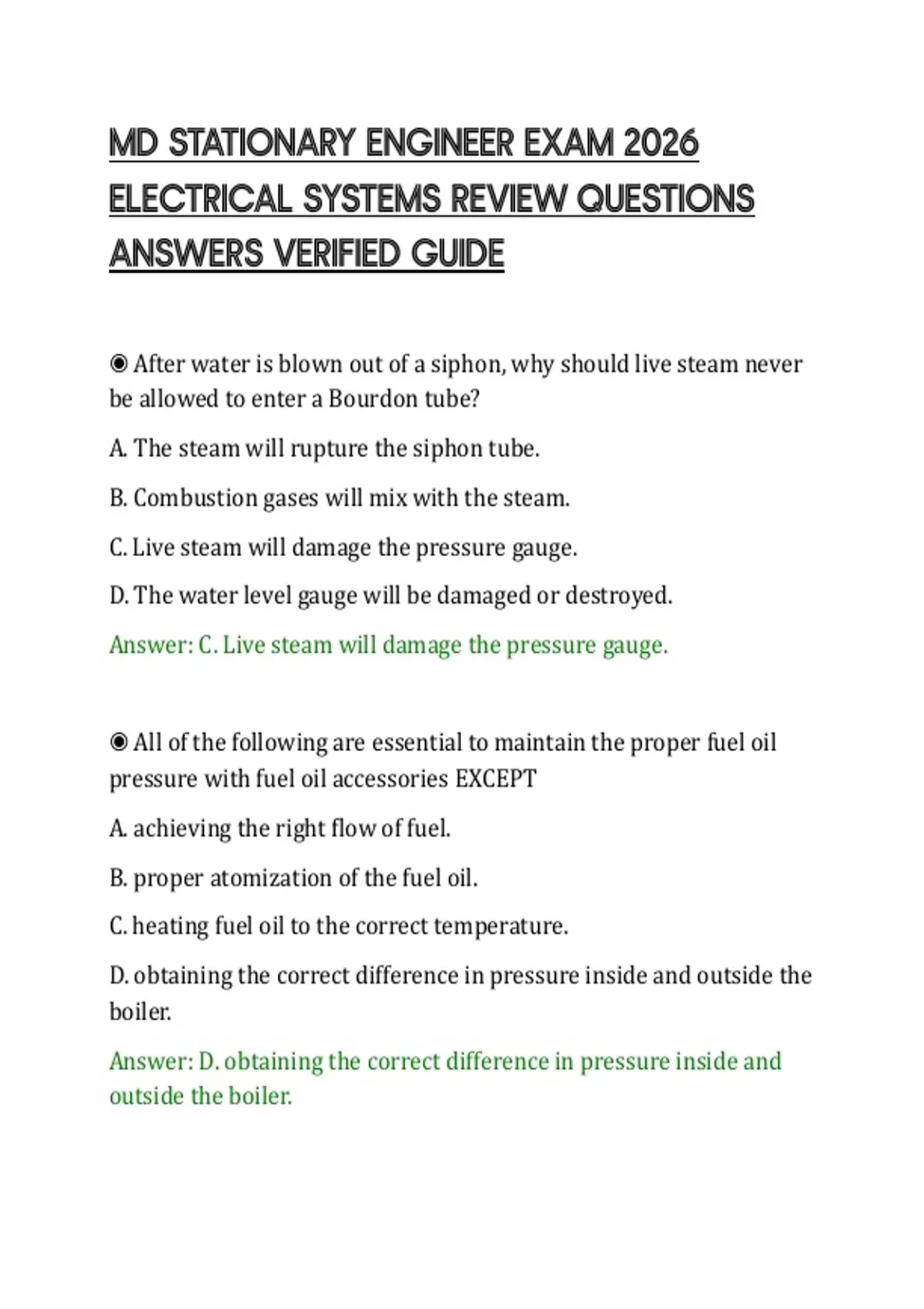

MD STATIONARY ENGINEER EXAM 2026
ELECTRICAL SYSTEMS REVIEW QUESTIONS
ANSWERS VERIFIED GUIDE
◉ After water is blown out of a siphon, why should live steam never
be allowed to enter a Bourdon tube?
A. The steam will rupture the siphon tube.
B. Combustion gases will mix with the steam.
C. Live steam will damage the pressure gauge.
D. The water level gauge will be damaged or destroyed.
Answer: C. Live steam will damage the pressure gauge.
◉ All of the following are essential to maintain the proper fuel oil
pressure with fuel oil accessories EXCEPT
A. achieving the right flow of fuel.
B. proper atomization of the fuel oil.
C. heating fuel oil to the correct temperature.
D. obtaining the correct difference in pressure inside and outside the
boiler.
Answer: D. obtaining the correct difference in pressure inside and
outside the boiler.
,◉ Which of the following could be dangerous to safe operation of a
low pressure boiler?
A. Adding water to an operating boiler when the water level cannot
be seen in the gauge glass tube.
B. Opening the blowdown valve at the bottom of the water gauge
glass before making a water level reading.
C. Checking the water level using the try cocks valves when the line
to the glass gauge tube is clogged.
D. Opening the water column blowdown valve every day.
Answer: A. Adding water to an operating boiler when the water level
cannot be seen in the gauge glass tube.
◉ Which of the following is best if a low-pressure boiler does not
have an air vent?
A. Vent the boiler with the try cocks.
B. Vent the boiler with the safety valve.
C. Vent the boiler with the fusible plug.
D. Vent the boiler with the blowdown line.
Answer: A. Vent the boiler with the try cocks.
◉ What is the purpose of an evaporation test on a low pressure
boiler?
A. To test the water column
B. To test the bottom blowdown valve
,C. To test the steam pressure safety valve
D. To test the low water cutoff control.
Answer: D. To test the low water cutoff control.
◉ Following flame failure, controls must de-energize fuel and
ignition circuits
A. within 4 seconds.
B. within 6 seconds.
C. within 10 seconds.
D. within 15 seconds.
Answer: A. within 4 seconds.
◉ How can an operator prevent damage to the tubes while using a
cleaner to remove scale from boiler tubes?
A. Never use a chemical cleaning procedure.
B. Never use cleaning water under pressure.
C. Never allow the cleaner to stay in one place.
D. Never clean the tubes more often than every six months.
Answer: C. Never allow the cleaner to stay in one place.
◉ In a steam boiler, which of the following should never be placed
between the safety relief valve and the boiler?
, A. A steam trap
B. A shut-off valve
C. An air eliminator
D. A discharge pipe
Answer: B. A shut-off valve
◉ Which of these should be used on live electrical fires?
A. Class D extinguishers
B. Class C extinguishers
C. Class B extinguishers
D. Class A extinguishers
Answer: B. Class C extinguishers
◉ If certain grades of fuel oil are not preheated properly, they may
cause
A. higher temperatures in the furnace.
B. back pressure and leaks in the fuel lines.
C. poor combustion and high fuel consumption.
D. increased pressure and dangerous levels of steam.
Answer: C. poor combustion and high fuel consumption.
◉ The furnace is almost always in a ___________ pressure.
