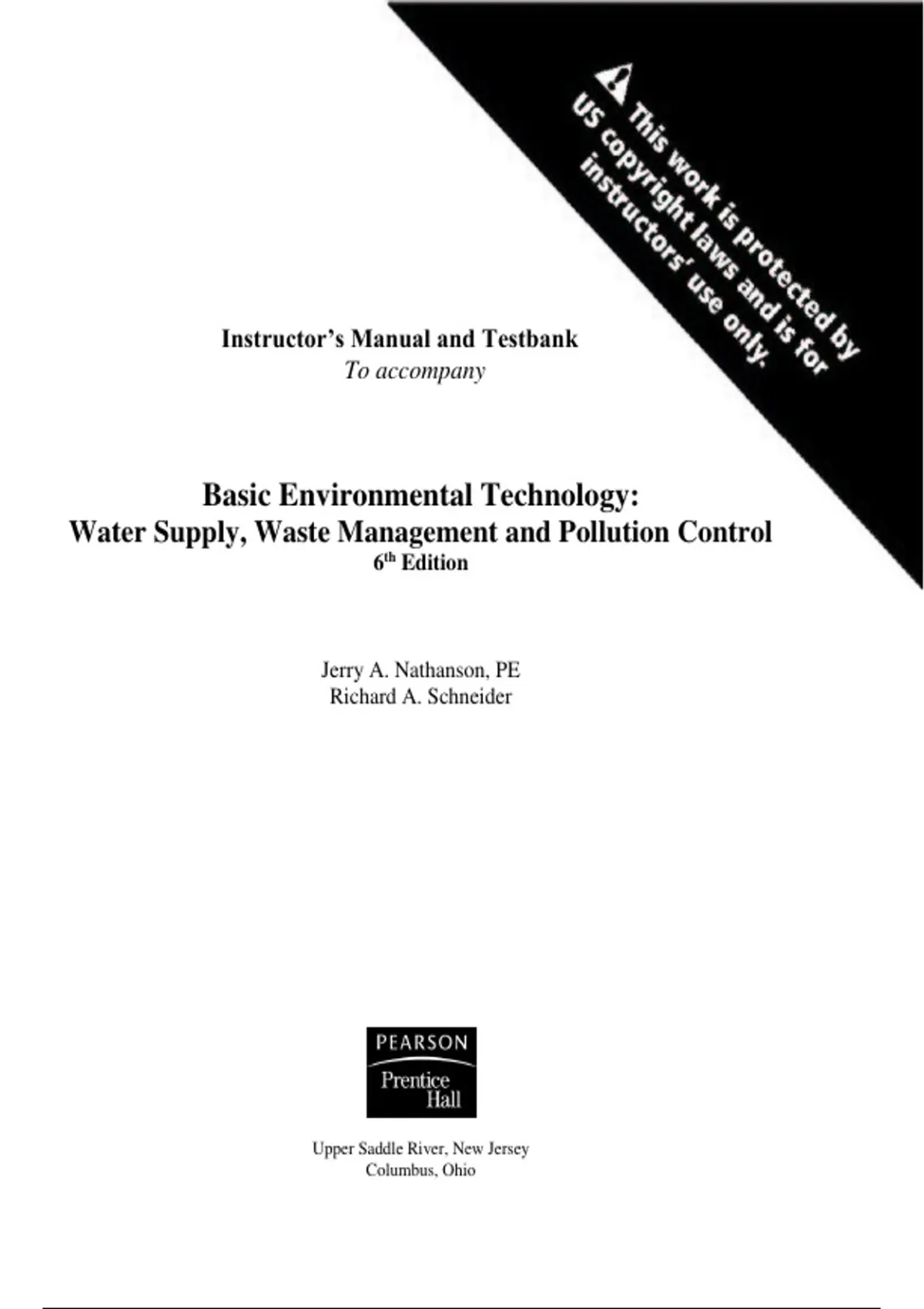

Instructor’s Manual and Testbank
yg
To accompany
en
Basic Environmental Technology:
Water Supply, Waste Management and Pollution Control
6th Edition
iu
s2
Jerry A. Nathanson, PE
Richard A. Schneider
47
??
??
??
?
Upper Saddle River, New Jersey
Columbus, Ohio
?
, Table of Contents
Chapter 1 1
tu
Chapter 2 2
Chapter 3 5
Chapter 4 8
Chapter 5 10
d
Chapter 6 12
Chapter 7 14
yg
Chapter 8 18
Chapter 9 20
Chapter 10 23
Chapter 11 26
en
Chapter 12 29
Chapter 13 29
Chapter 14 32
Supplemental Problems 35
iu
Multiple Choice and True/False 36
Answers to Multiple Choice and True/False 50
s2
Supplemental Problems 52
47
??
??
??
??
, 1
Basic Environmental Technology - Solutions Manual Sixth Edition
This manual provides instructors with (a) text page references where answers to the end-of-chapter
tu
Review Questions can be found and worked-out solutions to each of the Practice Problems.
Additional materials including supplemental problems and projects.
Generally, answers to end-of-chapter Practice Problems are rounded-off to reflect the precision of
d
the data and/or the accuracy of the assumed factors in the problems. These answers are also listed
in Appendix G of the text for students to use in checking their work. (The authors have made every
attempt to keep errors to a minimum. They can be notified of any mistakes that may be found in the
yg
text or in this manual at: or )
CHAPTER 1 - BASIC CONCEPTS
en
Review Question Page References
(1) 1 (17) 15
(2) 2, 3 (18) 15
iu
(3) 6 (19) 16
(4) 6 (20) 16, 17
(5) 6 (21) 17
(6) 7 (22) 17
s2
(7) 8 (23) 18
(8) 9 (24) 19
(9) 9, 10 (25) 19
(10) 9, 10 (26) 20
47
(11) 10 (27) 20
(12) 10 (28) 20
(13) 11 (29) 13
(14) 12 (30) 14
??
(15) 12, 13 (31) 20, 21
(16) 12
??
(There are no Practice Problems for Chapter 1)
??
? ?
, 2
CHAPTER 2 - HYDRAULICS
Review Question Page References
(1) 24 (8) 30 (15) 42
tu
(2) 24 (9) 31 (16) 44
(3) 25 (10) 32 (17) 44
(4) 25 (11) 33 (18) 44
(5) 27 (12) 35 (19) 45
d
(6) 28 (13) 36 (20) 45
(7) 30 (14) 40-42 (21) 46
(22) www.iihr.uiowa.edu/research
yg
Solutions to Practice Problems
1. P = 0.43 x h (Equation 2-2b)
en
P = 0.43 x 50 ft = 22 psi at the bottom of the reservoir
P = 0.43 x (50 -30) = 0.43 x 20 ft = 8.6 psi above the bottom
2. h = 0.1 x P = 0.1 x 50 = 5 m (Equation 2-3a)
iu
3. Depth of water above the valve: h = (78 m -50 m) + 2 m = 30 m
P = 9.8 x h = 9.8 x 30 = 294 kPa ≈ 290 kPa (Equation 2-2a)
s2
4. h = 2.3 x P = 2.3 x 50 = 115 ft, in the water main
h = 115 - 40 = 75 ft
P = 0.43 x 75 = 32 psi, 40 ft above the main (Equation 2-2b)
47
5. Gage pressure P = 30 + 9.8 x 1 = 39.8 kPa ≈ 40 kPa
Pressure head (in tube) = 0.1 x 40 kPa = 4 m
6. Q= A x V (Eq. 2-4), therefore V = Q/A
??
A = πD2/4 = π (0.3)2/4 = 0.0707 m2
100L/s x 1 m3/1000L=0.1 m3/s
V = 0.1 m3/s 0.707m2 = 1.4 m/s
??
7. Q = (500 gal/min) x (1 min/60 sec) x (1 ft3/7.5 gal) = 1.11 cfs
A = Q/V (from Eq. 2-4)
A = 1.11 ft3/sec /1.4 ft/sec = 0.794 ft2
A = πD2/4, therefore D = √4A/π = √(4)(0.794)/π = 1 ft = 12 in.
??
8. Q=A1 x V1 = A2 x V2 (Eq.2-5)
Since A = πD2/4, we can write
D12 xV1 = D22 xV2 and V2 =V1 x (D12 /D22)
?
In the constriction, V2 = (2 m/s) x (4) = 8 m/s
?
