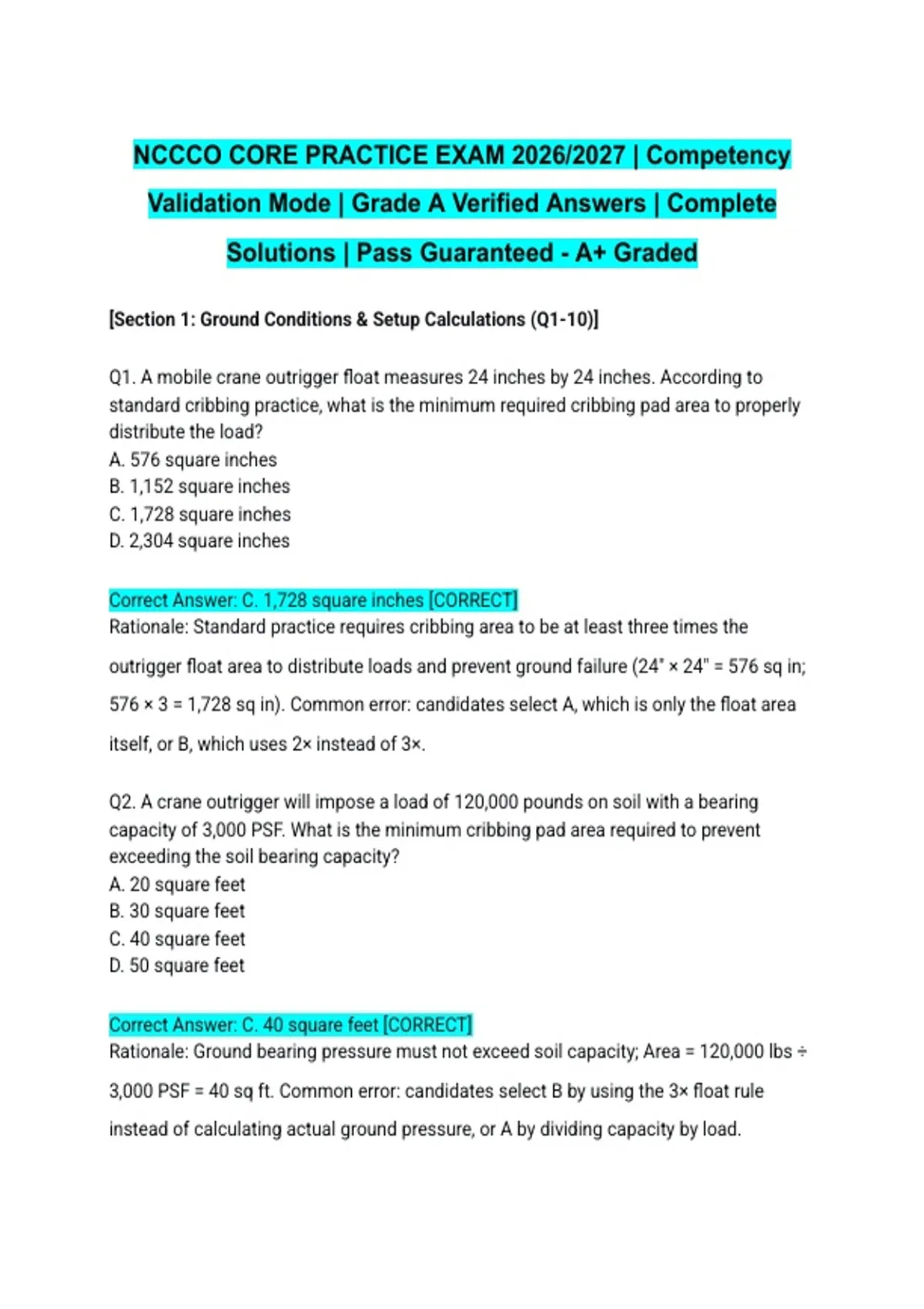

NCCCO CORE PRACTICE EXAM 2026/2027 | Competency
Validation Mode | Grade A Verified Answers | Complete
Solutions | Pass Guaranteed - A+ Graded
[Section 1: Ground Conditions & Setup Calculations (Q1-10)]
Q1. A mobile crane outrigger float measures 24 inches by 24 inches. According to
standard cribbing practice, what is the minimum required cribbing pad area to properly
distribute the load?
A. 576 square inches
B. 1,152 square inches
C. 1,728 square inches
D. 2,304 square inches
Correct Answer: C. 1,728 square inches [CORRECT]
Rationale: Standard practice requires cribbing area to be at least three times the
outrigger float area to distribute loads and prevent ground failure (24" × 24" = 576 sq in;
576 × 3 = 1,728 sq in). Common error: candidates select A, which is only the float area
itself, or B, which uses 2× instead of 3×.
Q2. A crane outrigger will impose a load of 120,000 pounds on soil with a bearing
capacity of 3,000 PSF. What is the minimum cribbing pad area required to prevent
exceeding the soil bearing capacity?
A. 20 square feet
B. 30 square feet
C. 40 square feet
D. 50 square feet
Correct Answer: C. 40 square feet [CORRECT]
Rationale: Ground bearing pressure must not exceed soil capacity; Area = 120,000 lbs ÷
3,000 PSF = 40 sq ft. Common error: candidates select B by using the 3× float rule
instead of calculating actual ground pressure, or A by dividing capacity by load.
,Q3. During setup, a crane operator checks the ground surface and finds a slope of 1.5%
in the proposed work area. According to manufacturer and industry standards, the
operator should:
A. Proceed with setup since the slope is less than 3%
B. Regrade or reposition the crane because the slope exceeds the 1% maximum
tolerance for safe crane operation
C. Extend only the uphill outriggers to compensate for the slope
D. Increase the load chart capacity by 15% to account for the slope
Correct Answer: B. Regrade or reposition the crane because the slope exceeds the 1%
maximum tolerance for safe crane operation [CORRECT]
Rationale: Industry standards and manufacturer requirements specify a maximum 1%
grade tolerance for crane setup to ensure stability; a 1.5% slope exceeds this limit and
creates tipping risk. Common error: candidates select A, confusing general construction
grades with crane-specific setup limits.
Q4. A crane is being set up on compacted gravel with a soil bearing capacity of 4,000
PSF. Each outrigger reaction is estimated at 100,000 lbs. The outrigger floats are 30" ×
30". What is the controlling factor for minimum cribbing area?
A. The 3× outrigger float rule requiring 18.75 sq ft
B. The soil bearing pressure calculation requiring 25 sq ft
C. The soil bearing pressure calculation requiring 25 sq ft, which exceeds the 3× float
rule requirement of 18.75 sq ft
D. The outrigger hydraulic cylinder diameter limiting the pad to 30"×30" only
Correct Answer: C. The soil bearing pressure calculation requiring 25 sq ft, which
exceeds the 3× float rule requirement of 18.75 sq ft [CORRECT]
Rationale: The 3× float rule requires 18.75 sq ft (3 × 6.25 sq ft), but the soil bearing
calculation requires 25 sq ft (100,000 ÷ 4,000 PSF); the larger area controls. Common
error: candidates select B alone without comparing it to the cribbing rule, or A by
miscalculating units.
Q5. An operator is setting up a crane on asphalt over undisturbed soil. The asphalt
surface appears solid, but the operator is concerned about hidden voids. The safest
approach is to:
A. Assume the asphalt can support the full load since it is a paved surface
, B. Place standard outrigger pads directly on the asphalt without additional cribbing
C. Use steel mats or engineered cribbing to distribute the load and verify subsurface
conditions before full load application
D. Reduce the load radius by 50% to compensate for uncertain ground conditions
Correct Answer: C. Use steel mats or engineered cribbing to distribute the load and
verify subsurface conditions before full load application [CORRECT]
Rationale: Asphalt surfaces may hide voids or weak sub-base layers that can fail under
concentrated outrigger loads; engineered distribution systems and subsurface
verification are required. Common error: candidates select B, assuming paved surfaces
are inherently safe, or A, confusing visual assessment with structural analysis.
Q6. A crane's outrigger pad measures 36" × 36". The soil bearing capacity is 5,000 PSF.
What is the maximum allowable outrigger reaction (in pounds) before exceeding the soil
capacity?
A. 25,000 lbs
B. 45,000 lbs
C. 62,500 lbs
D. 90,000 lbs
Correct Answer: B. 45,000 lbs [CORRECT]
Rationale: Maximum reaction = Pad area × Soil capacity; 36"×36" = 9 sq ft; 9 × 5,000 PSF
= 45,000 lbs. Common error: candidates select D by using square inches instead of
converting to square feet, or C by applying the 3× rule unnecessarily.
Q7. When calculating ground bearing pressure for a crawler crane on unprepared soil,
the operator must consider that the pressure distribution is:
A. Uniform across all track contact points regardless of boom position
B. Highest under the boom side tracks due to the overturning moment from the load
and boom weight
C. Lowest under the boom side because the counterweight shifts pressure to the
opposite side
D. Irrelevant because crawler cranes do not require ground pressure analysis
Correct Answer: B. Highest under the boom side tracks due to the overturning moment
from the load and boom weight [CORRECT]
