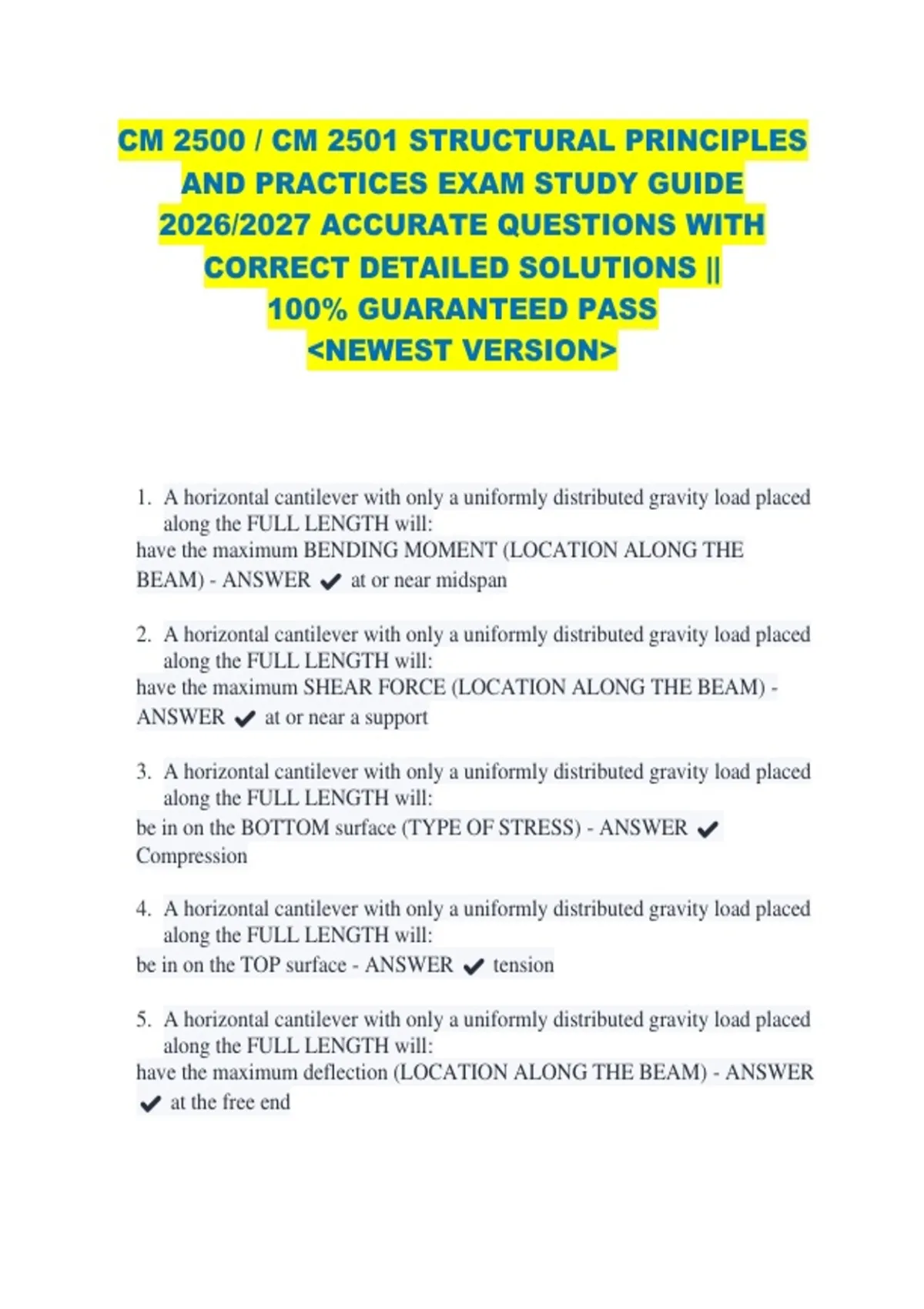

CM 2500 / CM 2501 STRUCTURAL PRINCIPLES AND PRACTICES EXAM STUDY GUIDE 2026/2027 ACCURATE QUESTIONS WITH CORRECT DETAILED SOLUTIONS || 100% GUARANTEED PASS NEWEST VERSION

CM 2500 / CM 2501 STRUCTURAL PRINCIPLES AND PRACTICES EXAM STUDY GUIDE 2026/2027 ACCURATE QUESTIONS WITH CORRECT DETAILED SOLUTIONS || 100% GUARANTEED PASS NEWEST VERSION 1. A horizontal cantilever with only a uniformly distributed gravity load placed along the FULL LENGTH will: have the maximum BENDING MOMENT (LOCATION ALONG THE BEAM) - ANSWER at or near midspan 2. A horizontal cantilever with only a uniformly distributed gravity load placed along the FULL LENGTH will: have the maximum SHEAR FORCE (LOCATION ALONG THE BEAM) - ANSWER at or near a support 3. A horizontal cantilever with only a uniformly distributed gravity load placed along the FULL LENGTH will: be in on the BOTTOM surface (TYPE OF STRESS) - ANSWER Compression 4. A horizontal cantilever with only a uniformly distributed gravity load placed along the FULL LENGTH will: be in on the TOP surface - ANSWER tension 5. A horizontal cantilever with only a uniformly distributed gravity load placed along the FULL LENGTH will: have the maximum deflection (LOCATION ALONG THE BEAM) - ANSWER at the free end 6. A horizontal cantilever with only a uniformly distributed gravity load placed along the FULL LENGTH will: be in ON THE TOP SURFACE (TYPE OF STRESS) - ANSWER Compression 7. A horizontal cantilever with only a uniformly distributed gravity load placed along the FULL LENGTH will: have the MAXIMUM BENDING MOMENT (LOCATION ALONG THE BEAM) - ANSWER at or near midspan 8. Following the sign convention used in the text a simple beam with no portion of that beam overhanging either support, having a uniform distributed load acting on it would have () bending moment - ANSWER a positive 9. For a beam with a symmetrical cross section, horizontal shear stress will be least at the (LOCATION IN CROSS SECTION) - ANSWER top and bottom edges 10. AY= - ANSWER 1800lbs arrow up 11. DX= - ANSWER 7200lbs arrow left 12. DY= - ANSWER 5400lbs arrow up 13. Member BC - ANSWER Tension 14. Member AB - ANSWER Compression 15. Member GJ - ANSWER Tension 16. Have the maximum bending moment ___________. (location along bean) - ANSWER at or near a support 17. Have the maximum shear force ____________(location along beam) - ANSWER at or near a support 18. be in _____________ on the bottom of the surface - ANSWER compression 19. be in ___________ on the top surface - ANSWER tension 20. have the maximum deflection _____________ (location along the beam) - ANSWER at the free end 21. a horizontal simple beam with no portion of that beam overcharging either support, having a uniformly distributed gravity load placed along the full length will have the maximum shear force ___________. - ANSWER at or near a support 22. a horizontal simple beam with no portion of that beam overcharging either support, having a uniformly distributed gravity load placed along the full length will have the maximum deflection ___________ - ANSWER at or near midspan 23. a horizontal simple beam with no portion of that beam overcharging either support, having a uniformly distributed gravity load placed along the full length will be in ________ on the bottom surface - ANSWER tension 24. a horizontal simple beam with no portion of that beam overcharging either support, having a uniformly distributed gravity load placed along the full length will be in ___________ on the top surface - ANSWER compression 25. a horizontal simple beam with no portion of that beam overcharging either support, having a uniformly distributed gravity load placed along the full length will have the maximum bending moment ___________ - ANSWER at or near midspan 26. Stresses that tend to move layers in different directions are called ______ stresses. - ANSWER SHEAR 27. The primary stress associated with a column is ______. - ANSWER COMPRESSIVE 28. The primary stress associated with a beam is______. - ANSWER BENDING & SHEARING 29. The primary stress associated with a cable is ______. - ANSWER TENSION 30. The primary stress associated with a truss is _______. - ANSWER TENSION & COMPRESSIVE 31. The primary stress associated with an arch is _______. - ANSWER COMPRESSIVE 32. Cables are always considered to be in ________. - ANSWER Tension 33. A stable, determinate cantilever has ___ reaction(s) and ___ support(s). - ANSWER 3 reactions & 1 support 34. The ________ is a single vector that is an equal replacement of a group of vectors that has the same external effect. - ANSWER RESULTANT 35. The ______ is a vector that is equal in magnitude but opposite in sense to the resultant of all the forces acting on the body. - ANSWER EQUILIBRANT 36. T/F. Shear stress is the primary type of stress seen in a typical truss. - ANSWER False. Tension & Compression 37. T/F. The units of a moment are a force times a distance squared. - ANSWER False. Force times distance: K-FT, lb-FT, etc. 38. T/F. Cales are always considered to be in compression. - ANSWER False. Tension 39. T/F. The desks in this classroom are considered to be a live load. - ANSWER True.
