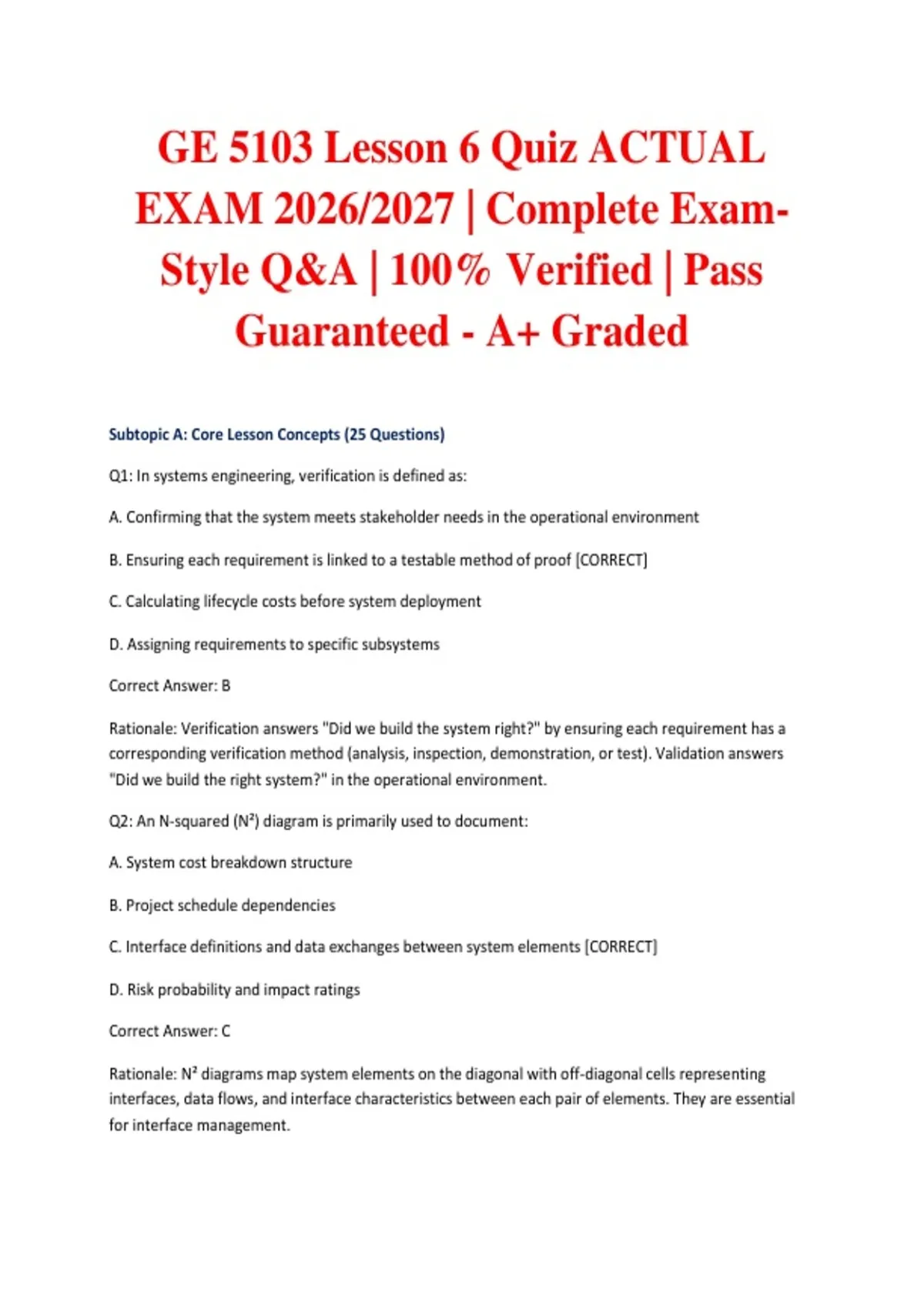

GE 5103 Lesson 6 Quiz ACTUAL
EXAM 2026/2027 | Complete Exam-
Style Q&A | 100% Verified | Pass
Guaranteed - A+ Graded
Subtopic A: Core Lesson Concepts (25 Questions)
Q1: In systems engineering, verification is defined as:
A. Confirming that the system meets stakeholder needs in the operational environment
B. Ensuring each requirement is linked to a testable method of proof [CORRECT]
C. Calculating lifecycle costs before system deployment
D. Assigning requirements to specific subsystems
Correct Answer: B
Rationale: Verification answers "Did we build the system right?" by ensuring each requirement has a
corresponding verification method (analysis, inspection, demonstration, or test). Validation answers
"Did we build the right system?" in the operational environment.
Q2: An N-squared (N²) diagram is primarily used to document:
A. System cost breakdown structure
B. Project schedule dependencies
C. Interface definitions and data exchanges between system elements [CORRECT]
D. Risk probability and impact ratings
Correct Answer: C
Rationale: N² diagrams map system elements on the diagonal with off-diagonal cells representing
interfaces, data flows, and interface characteristics between each pair of elements. They are essential
for interface management.
,Q3: A requirements traceability matrix shows that Requirement R-124 maps to verification method
"Test" and has no downward links to subsystem requirements. This indicates:
A. The requirement is fully validated
B. The requirement may be missing allocation to design elements [CORRECT]
C. The requirement is a stakeholder requirement only
D. The verification method is incorrect
Correct Answer: B
Rationale: Downward traceability (from system requirements to subsystem/component requirements)
ensures requirements are allocated to design. Missing downward links suggests incomplete
decomposition or orphaned requirements.
Q4: Validation in systems engineering is best described as:
A. Checking that each component meets its specification
B. Confirming the system meets stakeholder needs in the intended operational environment [CORRECT]
C. Reviewing the system architecture for completeness
D. Ensuring all interfaces are properly documented
Correct Answer: B
Rationale: Validation confirms that the realized system fulfills its intended use in the operational
environment, answering "Did we build the right system?" It involves stakeholders and end-users, unlike
verification which focuses on specifications.
Q5: A Measure of Effectiveness (MOE) differs from a Measure of Performance (MOP) in that an MOE:
A. Is derived directly from system specifications
B. Measures how well the system performs its mission in the operational environment [CORRECT]
C. Is always quantifiable using physical units
D. Applies only to hardware components
Correct Answer: B
Rationale: MOEs assess operational effectiveness from the stakeholder perspective (e.g., mission
success rate), while MOPs measure technical performance against specific system requirements (e.g.,
response time, throughput). MOEs answer "How well does the system accomplish its purpose?"
,Q6: In a risk matrix, a risk with "High" likelihood and "Critical" consequence should be classified as:
A. Low risk requiring monitoring only
B. Moderate risk with deferred mitigation
C. High risk requiring immediate mitigation and possible contingency planning [CORRECT]
D. Acceptable risk with no action required
Correct Answer: C
Rationale: Risk matrices plot likelihood against consequence to prioritize risks. High-likelihood, high-
consequence risks demand immediate mitigation action and often require contingency plans. This
classification drives resource allocation for risk management.
Q7: The primary purpose of functional analysis and allocation is to:
A. Determine the project budget
B. Decompose system-level functions into lower-level functions and allocate them to system elements
[CORRECT]
C. Create the project schedule
D. Identify all project stakeholders
Correct Answer: B
Rationale: Functional analysis decomposes top-level system functions into subfunctions using tools like
functional flow block diagrams (FFBDs). Allocation assigns these functions to specific hardware,
software, or human elements, forming the basis for physical architecture.
Q8: A Pugh matrix is used in systems engineering to:
A. Calculate project earned value
B. Evaluate and compare design alternatives against a reference concept using criteria [CORRECT]
C. Document system interfaces
D. Track requirements changes
Correct Answer: B
Rationale: The Pugh matrix facilitates concept selection by comparing alternatives against a datum
(reference) design across multiple criteria. It uses +/−/0 scoring to identify strengths and weaknesses,
supporting trade-off analysis and convergence toward an optimal solution.
, Q9: Configuration management in systems engineering includes all of the following EXCEPT:
A. Configuration identification
B. Configuration status accounting
C. Earned value calculation [CORRECT]
D. Configuration verification and audit
Correct Answer: C
Rationale: Configuration management comprises identification, control, status accounting, and
verification/audit. Earned value management is a separate project management function for measuring
schedule and cost performance, though it interfaces with configuration control.
Q10: Technical Performance Measures (TPMs) are used to:
A. Track critical technical parameters against planned values throughout the system lifecycle [CORRECT]
B. Measure team productivity
C. Calculate project profit margins
D. Document stakeholder requirements
Correct Answer: A
Rationale: TPMs monitor key technical parameters (e.g., weight, power consumption, reliability) against
thresholds and objectives over time. They provide early warning of technical risks and support decision-
making before parameters exceed acceptable bounds.
Q11: In the V-model of systems engineering, verification activities are performed:
A. Only during the final system testing phase
B. Concurrently with development on the left side of the V
C. On the right side of the V, corresponding to left-side decomposition [CORRECT]
D. Exclusively by the customer during acceptance testing
Correct Answer: C
Rationale: The V-model maps decomposition activities (requirements, design) on the left side to
integration and verification activities on the right side. Each level of specification on the left has a
corresponding verification activity on the right, ensuring traceability.
Q12: A weighted decision matrix differs from a Pugh matrix primarily because it:
