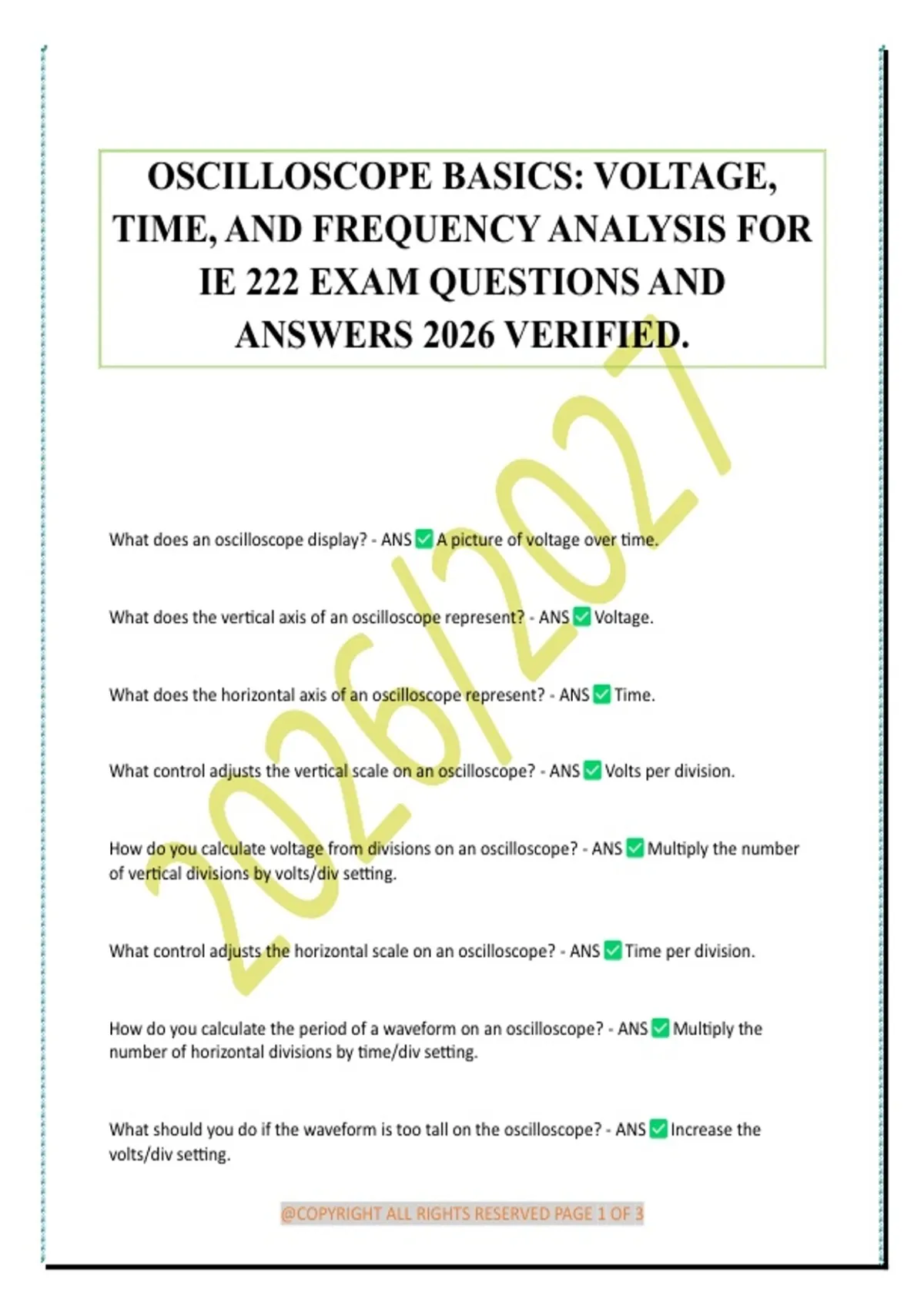

OSCILLOSCOPE BASICS: VOLTAGE,
TIME, AND FREQUENCY ANALYSIS FOR
IE 222 EXAM QUESTIONS AND
ANSWERS 2026 VERIFIED.



What does an oscilloscope display? - ANS A picture of voltage over time.


What does the vertical axis of an oscilloscope represent? - ANS Voltage.


What does the horizontal axis of an oscilloscope represent? - ANS Time.


What control adjusts the vertical scale on an oscilloscope? - ANS Volts per division.


How do you calculate voltage from divisions on an oscilloscope? - ANS Multiply the number
of vertical divisions by volts/div setting.


What control adjusts the horizontal scale on an oscilloscope? - ANS Time per division.


How do you calculate the period of a waveform on an oscilloscope? - ANS Multiply the
number of horizontal divisions by time/div setting.


What should you do if the waveform is too tall on the oscilloscope? - ANS Increase the
volts/div setting.
