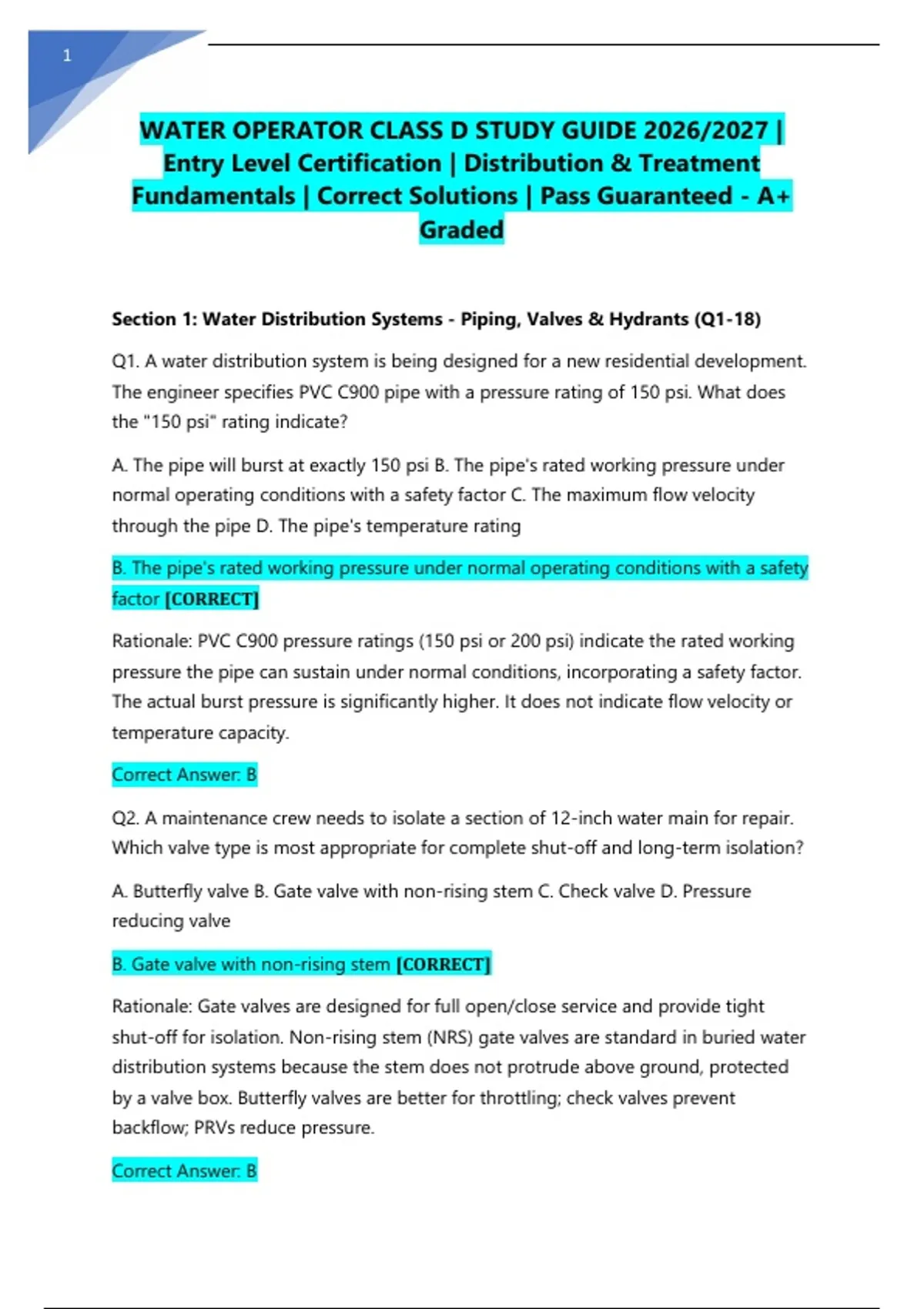

WATER OPERATOR CLASS D STUDY GUIDE 2026/2027 |
Entry Level Certification | Distribution & Treatment
Fundamentals | Correct Solutions | Pass Guaranteed - A+
Graded
Section 1: Water Distribution Systems - Piping, Valves & Hydrants (Q1-18)
Q1. A water distribution system is being designed for a new residential development.
The engineer specifies PVC C900 pipe with a pressure rating of 150 psi. What does
the "150 psi" rating indicate?
A. The pipe will burst at exactly 150 psi B. The pipe's rated working pressure under
normal operating conditions with a safety factor C. The maximum flow velocity
through the pipe D. The pipe's temperature rating
B. The pipe's rated working pressure under normal operating conditions with a safety
factor [CORRECT]
Rationale: PVC C900 pressure ratings (150 psi or 200 psi) indicate the rated working
pressure the pipe can sustain under normal conditions, incorporating a safety factor.
The actual burst pressure is significantly higher. It does not indicate flow velocity or
temperature capacity.
Correct Answer: B
Q2. A maintenance crew needs to isolate a section of 12-inch water main for repair.
Which valve type is most appropriate for complete shut-off and long-term isolation?
A. Butterfly valve B. Gate valve with non-rising stem C. Check valve D. Pressure
reducing valve
B. Gate valve with non-rising stem [CORRECT]
Rationale: Gate valves are designed for full open/close service and provide tight
shut-off for isolation. Non-rising stem (NRS) gate valves are standard in buried water
distribution systems because the stem does not protrude above ground, protected
by a valve box. Butterfly valves are better for throttling; check valves prevent
backflow; PRVs reduce pressure.
Correct Answer: B
,2
Q3. A butterfly valve is installed on a 24-inch transmission main. What is the primary
advantage of a butterfly valve in this application?
A. Complete shut-off capability superior to gate valves B. Quarter-turn operation for
rapid opening/closing and effective flow throttling C. Automatic backflow prevention
D. Pressure reduction capability
B. Quarter-turn operation for rapid opening/closing and effective flow throttling
[CORRECT]
Rationale: Butterfly valves provide quarter-turn (90°) operation for rapid control and
are effective for flow throttling and regulation. They are not typically used for
complete isolation (gate valves are preferred), nor do they prevent backflow or
reduce pressure.
Correct Answer: B
Q4. A water system has a high point in the distribution line where air pockets form,
causing water hammer and reduced flow. What type of valve should be installed at
this location?
A. Blow-off valve B. Air release valve C. Check valve D. Pressure reducing valve
B. Air release valve [CORRECT]
Rationale: Air release valves are installed at high points in distribution systems to
automatically vent accumulated air pockets that restrict flow and cause water
hammer. Blow-off valves are installed at low points for flushing sediment. Check
valves prevent backflow; PRVs reduce pressure.
Correct Answer: B
Q5. A water operator is conducting quarterly valve exercising on distribution system
isolation valves. What is the primary purpose of this maintenance activity?
A. To increase water pressure in the system B. To prevent valve seizing, ensure
operability, and identify valves needing repair C. To reduce water age in the system
D. To disinfect the valve components
B. To prevent valve seizing, ensure operability, and identify valves needing repair
[CORRECT]
,3
Rationale: Valve exercising (opening and closing valves on a scheduled basis,
typically quarterly) prevents corrosion and mineral buildup that can cause valves to
seize. It also verifies that valves are locatable, operable, and identifies those requiring
repair or replacement.
Correct Answer: B
Q6. A fire hydrant is struck by a vehicle and the barrel breaks away cleanly at the
flange while the water main remains intact. What design feature allowed this
controlled break?
A. The hydrant is a wet barrel hydrant B. The hydrant has a breakaway flange
designed for traffic safety C. The hydrant has a drain hole D. The hydrant is made of
plastic
B. The hydrant has a breakaway flange designed for traffic safety [CORRECT]
Rationale: Dry barrel hydrants are equipped with breakaway flanges (traffic flanges)
that are designed to shear off cleanly when struck by a vehicle, preventing damage
to the water main and allowing for easier, less expensive repair of just the hydrant
barrel.
Correct Answer: B
Q7. A fire department connects a pumper truck to a hydrant using the steamer port.
What is the standard diameter of a steamer port connection?
A. 2.5 inches B. 4.5 inches C. 6.0 inches D. 1.5 inches
B. 4.5 inches [CORRECT]
Rationale: The steamer port (pumper connection) on a fire hydrant is standardized at
4.5 inches in diameter with National Standard Thread (NST). This large connection
allows fire departments to connect pumper trucks and draft large volumes of water
directly from the main.
Correct Answer: B
Q8. A water operator is conducting a hydrant flow test using a pitot tube and gauge.
The operator measures the velocity pressure in the hydrant nozzle. What parameter
is being directly measured to calculate flow rate?
, 4
A. Static pressure B. Residual pressure C. Velocity pressure (stagnation pressure) in
the water stream D. Atmospheric pressure
C. Velocity pressure (stagnation pressure) in the water stream [CORRECT]
Rationale: A pitot tube measures the stagnation (total) pressure in a flowing stream,
which includes both static pressure and velocity pressure. By comparing this to static
pressure measured when no water is flowing, the operator can calculate the flow rate
in gallons per minute (gpm).
Correct Answer: C
Q9. During a hydrant flow test, an operator records a static pressure of 72 psi before
flowing water and a residual pressure of 48 psi while flowing 1,200 gpm. What does
the residual pressure indicate?
A. The pressure in the main when no water is flowing B. The pressure remaining in
the distribution main while water is being discharged from the hydrant C. The
atmospheric pressure at the hydrant location D. The pressure required to lift water to
the tank
B. The pressure remaining in the distribution main while water is being discharged
from the hydrant [CORRECT]
Rationale: Residual pressure is the pressure measured in the distribution system
while water is actively flowing from the hydrant. It indicates the system's capacity to
maintain pressure under fire flow demand. Static pressure is measured with no flow;
the difference indicates system capacity.
Correct Answer: B
Q10. A water operator lubricates a dry barrel fire hydrant by pumping grease
through the grease fitting. What component is being lubricated?
A. The main valve at the bottom of the hydrant B. The operating nut threads and
stem mechanism C. The drain hole D. The steamer port threads
B. The operating nut threads and stem mechanism [CORRECT]
Rationale: The grease fitting on a dry barrel hydrant allows lubrication of the
operating threads and stem mechanism to ensure smooth operation of the hydrant
