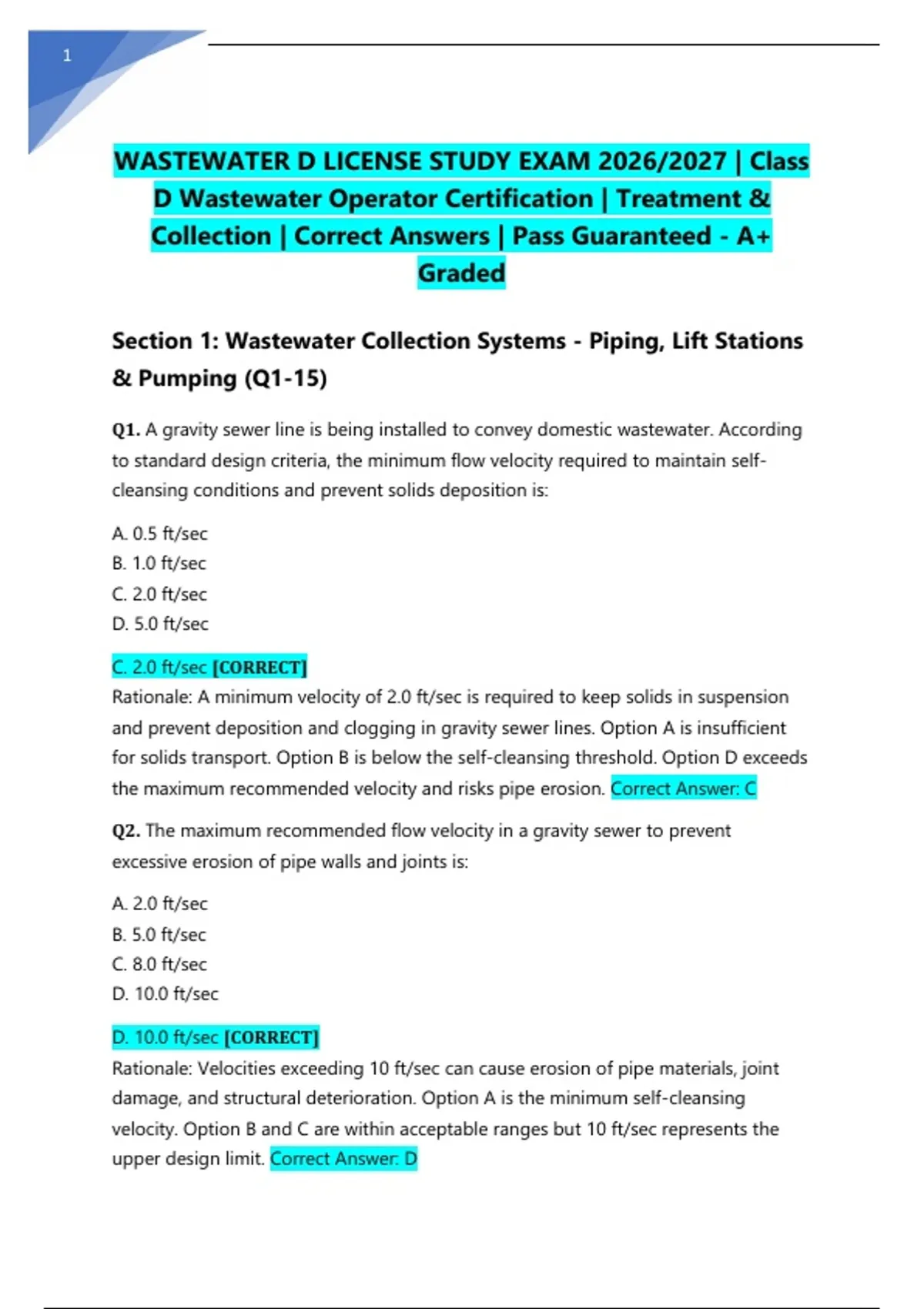

WASTEWATER D LICENSE STUDY EXAM 2026/2027 | Class
D Wastewater Operator Certification | Treatment &
Collection | Correct Answers | Pass Guaranteed - A+
Graded
Section 1: Wastewater Collection Systems - Piping, Lift Stations
& Pumping (Q1-15)
Q1. A gravity sewer line is being installed to convey domestic wastewater. According
to standard design criteria, the minimum flow velocity required to maintain self-
cleansing conditions and prevent solids deposition is:
A. 0.5 ft/sec
B. 1.0 ft/sec
C. 2.0 ft/sec
D. 5.0 ft/sec
C. 2.0 ft/sec [CORRECT]
Rationale: A minimum velocity of 2.0 ft/sec is required to keep solids in suspension
and prevent deposition and clogging in gravity sewer lines. Option A is insufficient
for solids transport. Option B is below the self-cleansing threshold. Option D exceeds
the maximum recommended velocity and risks pipe erosion. Correct Answer: C
Q2. The maximum recommended flow velocity in a gravity sewer to prevent
excessive erosion of pipe walls and joints is:
A. 2.0 ft/sec
B. 5.0 ft/sec
C. 8.0 ft/sec
D. 10.0 ft/sec
D. 10.0 ft/sec [CORRECT]
Rationale: Velocities exceeding 10 ft/sec can cause erosion of pipe materials, joint
damage, and structural deterioration. Option A is the minimum self-cleansing
velocity. Option B and C are within acceptable ranges but 10 ft/sec represents the
upper design limit. Correct Answer: D
,2
Q3. A standard 8-inch diameter vitrified clay pipe (VCP) gravity sewer is being
designed. The minimum recommended slope to achieve self-cleansing velocity is
approximately:
A. 1/16 inch per foot
B. 1/8 inch per foot
C. 1/4 inch per foot
D. 1/2 inch per foot
B. 1/8 inch per foot [CORRECT]
Rationale: The standard minimum slope for an 8-inch diameter sewer is 1/8 inch per
foot (0.125 in/ft), which provides adequate gradient for 2 ft/sec self-cleansing
velocity. Option A is too flat for reliable solids transport. Options C and D are steeper
slopes typically used for smaller diameter pipes. Correct Answer: B
Q4. Manholes in a municipal gravity sewer collection system are typically spaced at
intervals of approximately:
A. 100-200 feet
B. 300-400 feet
C. 600-800 feet
D. 1,000-1,500 feet
B. 300-400 feet [CORRECT]
Rationale: Standard manhole spacing is 300-400 feet to provide adequate access for
inspection, maintenance, and cleaning of gravity sewer lines. Option A is too frequent
and uneconomical. Options C and D exceed practical maintenance access distances
and may violate local design standards. Correct Answer: B
Q5. A sewer line enters a manhole at elevation 425.50 feet and exits at elevation
423.00 feet, representing a vertical drop of 2.5 feet. To prevent excessive turbulence,
velocity increase, and odor generation, the appropriate manhole design is:
A. Standard manhole with direct pipe-to-pipe connection
B. Drop manhole with an internal drop pipe or chute
C. Junction box with no flow control
D. Inverted siphon
B. Drop manhole with an internal drop pipe or chute [CORRECT]
Rationale: Drop manholes are required when elevation changes exceed
,3
approximately 2 feet to dissipate energy, control velocity, and prevent turbulence
that generates hydrogen sulfide and odors. Option A would create excessive
turbulence and erosion. Option C provides no energy dissipation. Option D is used
for crossing under obstacles, not elevation drops. Correct Answer: B
Q6. An operator is troubleshooting excessive wet well pumping cycles at a lift station.
The pumps are starting and stopping every 3-4 minutes. The most appropriate
corrective action is to:
A. Increase the wet well diameter to provide greater storage volume and extend
pump run times
B. Decrease the distance between pump start and stop levels (narrow the differential)
C. Replace the pumps with higher capacity units
D. Increase the influent flow rate to the wet well
A. Increase the wet well diameter to provide greater storage volume and extend
pump run times [CORRECT]
Rationale: Short cycling (frequent start/stop) damages motors and reduces pump life;
increasing wet well storage volume or adjusting level controls to provide minimum
5-10 minute run times prevents this. Option B would worsen short cycling by
reducing cycle volume. Option C does not address the root cause of insufficient
storage. Option D is not an operational control. Correct Answer: A
Q7. A lift station wet well is designed with a high-level alarm set at 12 feet and pump
start at 10 feet. The emergency storage capacity above the high-level alarm to the
wet well rim is critical for:
A. Routine pump maintenance scheduling
B. Accommodating peak influent flows during pump failure or power outage until
emergency power activates or repairs are completed
C. Chemical storage for odor control
D. Sediment accumulation measurement
B. Accommodating peak influent flows during pump failure or power outage until
emergency power activates or repairs are completed [CORRECT]
Rationale: Emergency storage above the high-level alarm provides critical buffer time
for automatic transfer switch activation, backup generator startup, or maintenance
response to prevent sewage overflows. Option A is unrelated to alarm levels. Option
, 4
C describes chemical feed systems. Option D is not a design purpose of freeboard.
Correct Answer: B
Q8. A submersible pump in a wet well is being compared to a dry pit pump
installation for a new lift station. The primary operational advantage of the
submersible pump configuration is:
A. Lower initial capital cost and smaller footprint due to elimination of the separate
dry well structure
B. Higher pump efficiency in all operating conditions
C. Easier access for impeller maintenance without removing the pump
D. Elimination of the need for level controls
A. Lower initial capital cost and smaller footprint due to elimination of the separate
dry well structure [CORRECT]
Rationale: Submersible pumps eliminate the need for a separate dry well, reducing
construction costs, land requirements, and structural complexity. Option B is false as
efficiency depends on pump curve matching, not configuration. Option C is false as
submersible pumps typically require removal for major maintenance. Option D is
false as level controls are required for all pump stations. Correct Answer: A
Q9. A force main is being designed to convey pumped sewage from a lift station to
the treatment plant. The recommended pipe material for this pressure application is:
A. Vitrified clay pipe (VCP)
B. PVC Schedule 40 gravity sewer pipe
C. Ductile iron pipe or HDPE pressure-rated pipe
D. Asbestos-cement pipe
C. Ductile iron pipe or HDPE pressure-rated pipe [CORRECT]
Rationale: Force mains operate under pressure and require pressure-rated materials
such as ductile iron (DI) or high-density polyethylene (HDPE) with appropriate
pressure classes. Option A is for gravity applications only. Option B is not pressure-
rated for force main service. Option D is prohibited due to asbestos content. Correct
Answer: C
Q10. An operator inspects a force main and discovers air accumulation at a high
point in the line. The proper installation to prevent air locking and flow restriction is:
