NEIEP 500 FINAL EXAM NEWEST ACTUAL EXAM QUESTIONS
05/19/2026
AND ANSWERS

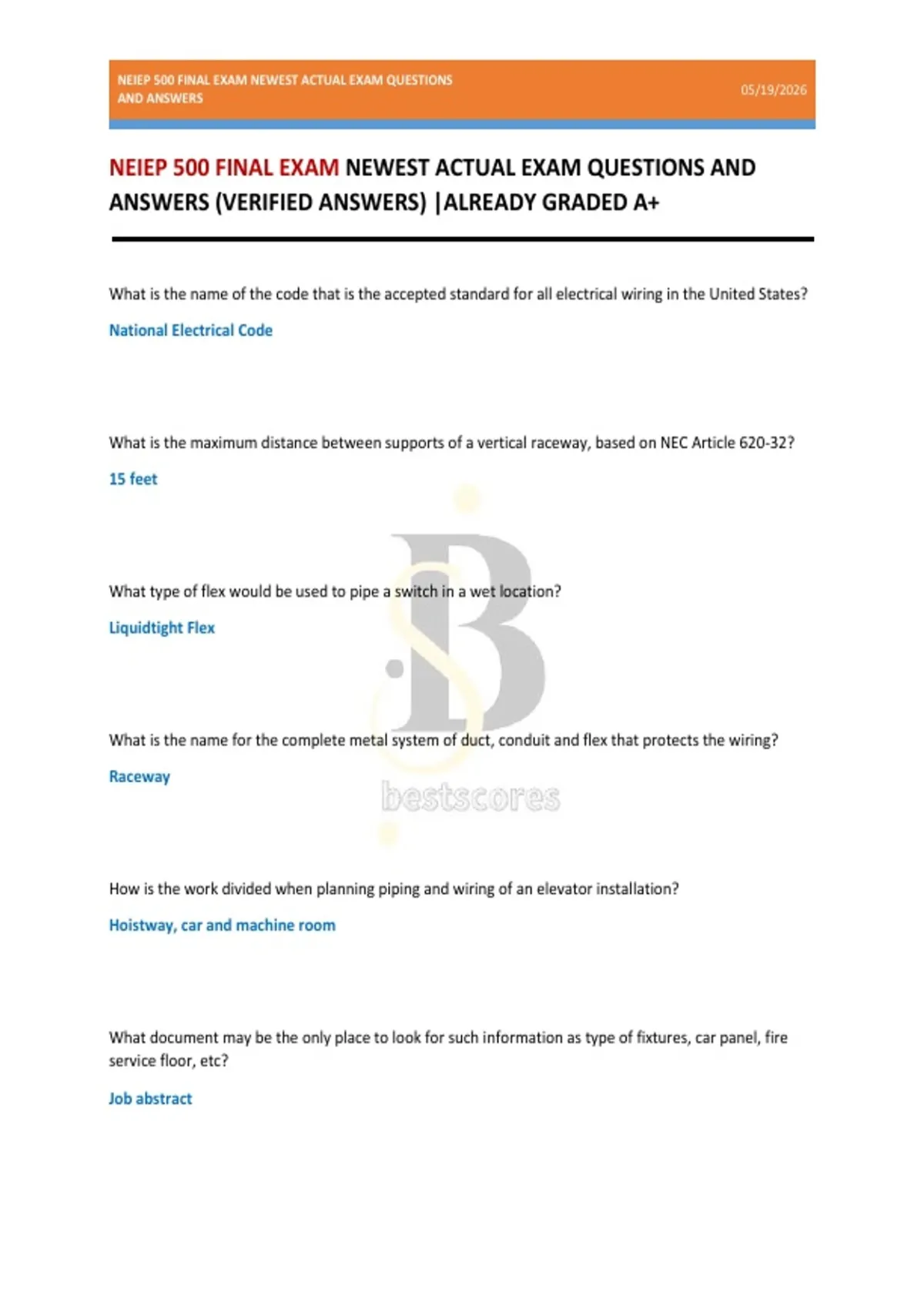

NEIEP 500 FINAL EXAM NEWEST ACTUAL EXAM QUESTIONS AND
ANSWERS (VERIFIED ANSWERS) |ALREADY GRADED A+
What is the name of the code that is the accepted standard for all electrical wiring in the United States?
National Electrical Code
What is the maximum distance between supports of a vertical raceway, based on NEC Article 620-32?
15 feet
What type of flex would be used to pipe a switch in a wet location?
Liquidtight Flex
What is the name for the complete metal system of duct, conduit and flex that protects the wiring?
Raceway
How is the work divided when planning piping and wiring of an elevator installation?
Hoistway, car and machine room
What document may be the only place to look for such information as type of fixtures, car panel, fire
service floor, etc?
Job abstract
, NEIEP 500 FINAL EXAM NEWEST ACTUAL EXAM QUESTIONS
05/19/2026
AND ANSWERS
What information is shown on a pull sheet?
Terminal connections
Which type of diagram shows a simplified path from positive to negative for all components in a circuit?
Straight line
How are multiple installations of traveling cables numbered for a single car?
From the rail regardless of placement in the hoistway
What is shown on the final layout?
A plan drawing and an elevation giving dimensions
In the circuit shown, which is the common wired for the second level?
DC+
How are wire sizes larger than 4/0 measured?
In circular mils
What is the abbreviated term for current carry8ing capacity?
Ampacity
, NEIEP 500 FINAL EXAM NEWEST ACTUAL EXAM QUESTIONS
05/19/2026
AND ANSWERS
What is the minimum size wired for lighting circuits in an elevator installation?
#14
What is the special about wire used for the interlock circuit?
It must be rated for 200 degrees C
What is the smallest wire that is permitted in an elevator installation?
#24
When bending conduit, what is the maximum number of decrees of bend allowed between access
points?
90 degrees
What is the reference point on the thin-wall bender for the finish line of a back to back bend?
The star point
What is the total in degrees of the bends in a three-bend saddle?
90 degrees
You have 10' length of ¾" rigid conduit which needs to have a 90 degree bend with a 16" stub height.
With a 7" take- up, what is the distance from the end of the pipe to the mark where the hickey arrow is
aligned?
