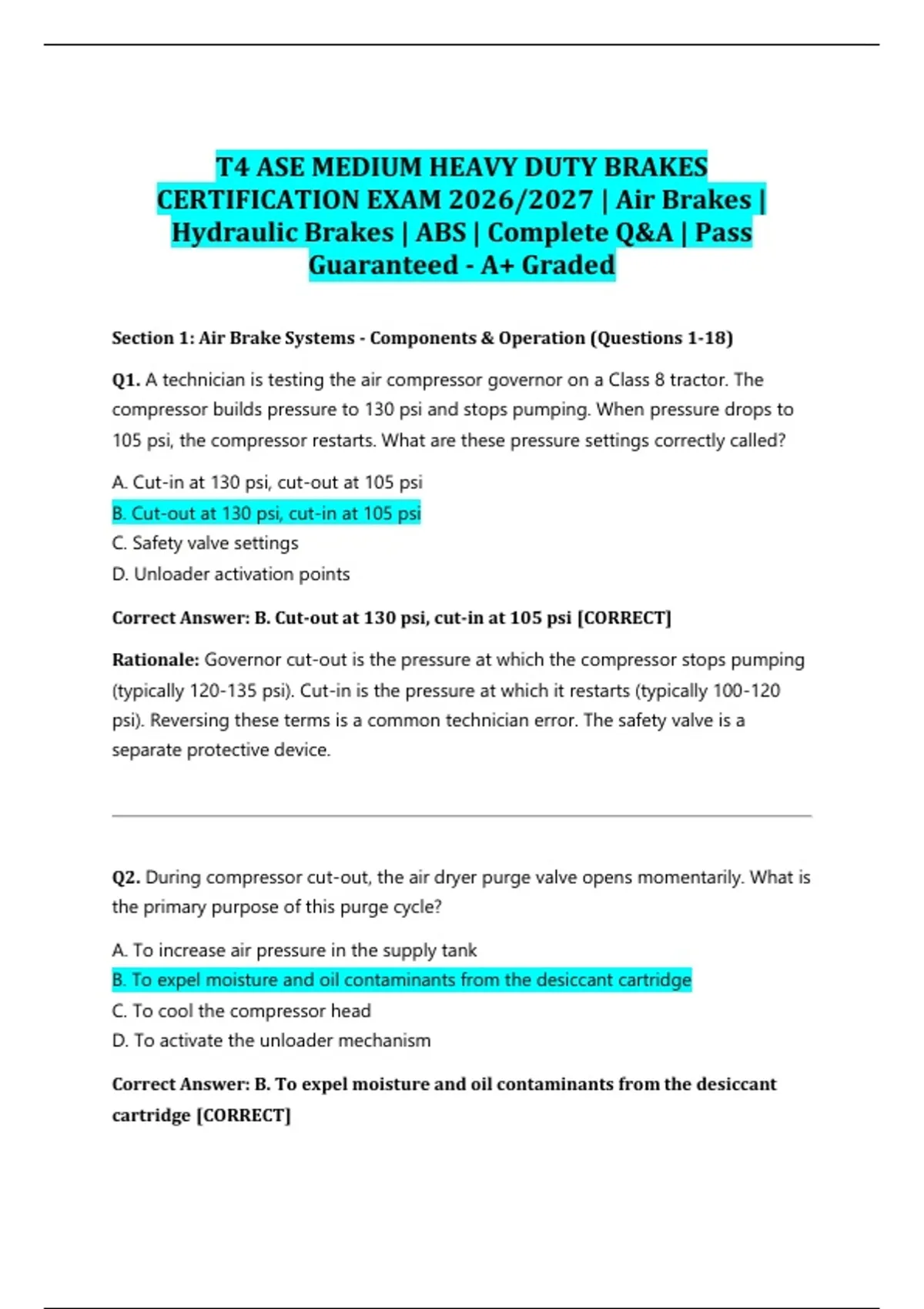

T4 ASE MEDIUM HEAVY DUTY BRAKES
CERTIFICATION EXAM 2026/2027 | Air Brakes |
Hydraulic Brakes | ABS | Complete Q&A | Pass
Guaranteed - A+ Graded
Section 1: Air Brake Systems - Components & Operation (Questions 1-18)
Q1. A technician is testing the air compressor governor on a Class 8 tractor. The
compressor builds pressure to 130 psi and stops pumping. When pressure drops to
105 psi, the compressor restarts. What are these pressure settings correctly called?
A. Cut-in at 130 psi, cut-out at 105 psi
B. Cut-out at 130 psi, cut-in at 105 psi
C. Safety valve settings
D. Unloader activation points
Correct Answer: B. Cut-out at 130 psi, cut-in at 105 psi [CORRECT]
Rationale: Governor cut-out is the pressure at which the compressor stops pumping
(typically 120-135 psi). Cut-in is the pressure at which it restarts (typically 100-120
psi). Reversing these terms is a common technician error. The safety valve is a
separate protective device.
Q2. During compressor cut-out, the air dryer purge valve opens momentarily. What is
the primary purpose of this purge cycle?
A. To increase air pressure in the supply tank
B. To expel moisture and oil contaminants from the desiccant cartridge
C. To cool the compressor head
D. To activate the unloader mechanism
Correct Answer: B. To expel moisture and oil contaminants from the desiccant
cartridge [CORRECT]
,Rationale: The purge valve opens during cut-out to blow down the desiccant bed,
releasing trapped moisture and oil into the atmosphere. This regenerates the
desiccant for the next drying cycle. The unloader mechanism is internal to the
compressor/governor and separate from the dryer purge.
Q3. In a typical dual-circuit air brake system on a truck, the primary air circuit
generally supplies which brakes?
A. Front (steer) axle brakes
B. Rear (drive) axle brakes
C. Spring brake chambers only
D. Trailer service line only
Correct Answer: B. Rear (drive) axle brakes [CORRECT]
Rationale: In standard SAE configurations, the primary circuit supplies the rear axle
service brakes and the secondary circuit supplies the front axle service brakes. This
ensures split-system redundancy. The spring brakes are typically fed from the
secondary/parking circuit.
Q4. The safety valve (pop-off valve) on an air brake system is designed to open at
what pressure to protect the system from over-pressurization?
A. 100 psi
B. 120 psi
C. 150 psi
D. 180 psi
Correct Answer: C. 150 psi [CORRECT]
Rationale: The safety valve is set to open at approximately 150 psi to prevent
catastrophic system damage if the governor fails to cut out. It is a last-resort
protective device, not an operational pressure regulator.
,Q5. A pressure protection valve is installed between the air supply tank and an air-
ride suspension system. What is its primary function?
A. To increase suspension pressure above tank pressure
B. To close off accessory air if system pressure drops below approximately 70 psi,
preserving air for brakes
C. To regulate suspension ride height
D. To prevent the suspension from over-inflating
Correct Answer: B. To close off accessory air if system pressure drops below
approximately 70 psi, preserving air for brakes [CORRECT]
Rationale: The pressure protection valve prioritizes brake system air by closing the
accessory supply path when pressure falls to a threshold (typically ~70 psi). This
ensures sufficient air remains for safe braking before non-essential accessories are
deprived.
Q6. A driver reports that when the primary air circuit fails completely, the truck still
has front brake function. What component in the foot valve (treadle valve) makes this
possible?
A. The quick release valve
B. The dual-circuit design with isolated primary and secondary piston circuits
C. The relay valve
D. The unloader valve
Correct Answer: B. The dual-circuit design with isolated primary and secondary
piston circuits [CORRECT]
Rationale: The treadle valve contains separate pistons for primary and secondary
circuits. If one circuit fails, the mechanical linkage still actuates the remaining circuit.
A quick release valve speeds exhaust; a relay valve remote-mounts delivery; the
unloader is on the compressor.
, Q7. A technician is replacing a brake chamber and sees "Type 30" stamped on the
clamp ring. What does the "30" designate?
A. The maximum stroke in inches
B. The effective diaphragm area in square inches
C. The mounting bolt pattern diameter
D. The pushrod thread size
Correct Answer: B. The effective diaphragm area in square inches [CORRECT]
Rationale: Brake chamber type numbers (9, 12, 16, 20, 24, 30, 36) indicate the
effective diaphragm area in square inches. This determines the force output for a
given air pressure. Type 30 has approximately 30 square inches of effective area.
Q8. During inspection, a technician finds a small crack in the outer edge of a brake
chamber diaphragm. What is the correct repair action?
A. Apply rubber sealant to the crack
B. Replace the brake chamber diaphragm only
C. Replace the entire brake chamber assembly
D. Monitor the crack for 90 days
Correct Answer: C. Replace the entire brake chamber assembly [CORRECT]
Rationale: Diaphragm cracks allow air leakage and progressive failure. ASE and
industry standards require replacing the complete brake chamber assembly when the
diaphragm is compromised, as clamp ring reassembly without proper tooling can
create safety hazards and leaks.
Q9. Federal regulations require commercial motor vehicles manufactured after 1994
to be equipped with which type of slack adjuster on air brakes?
A. Manual slack adjusters checked every 30 days
B. Automatic slack adjusters (ASA)
