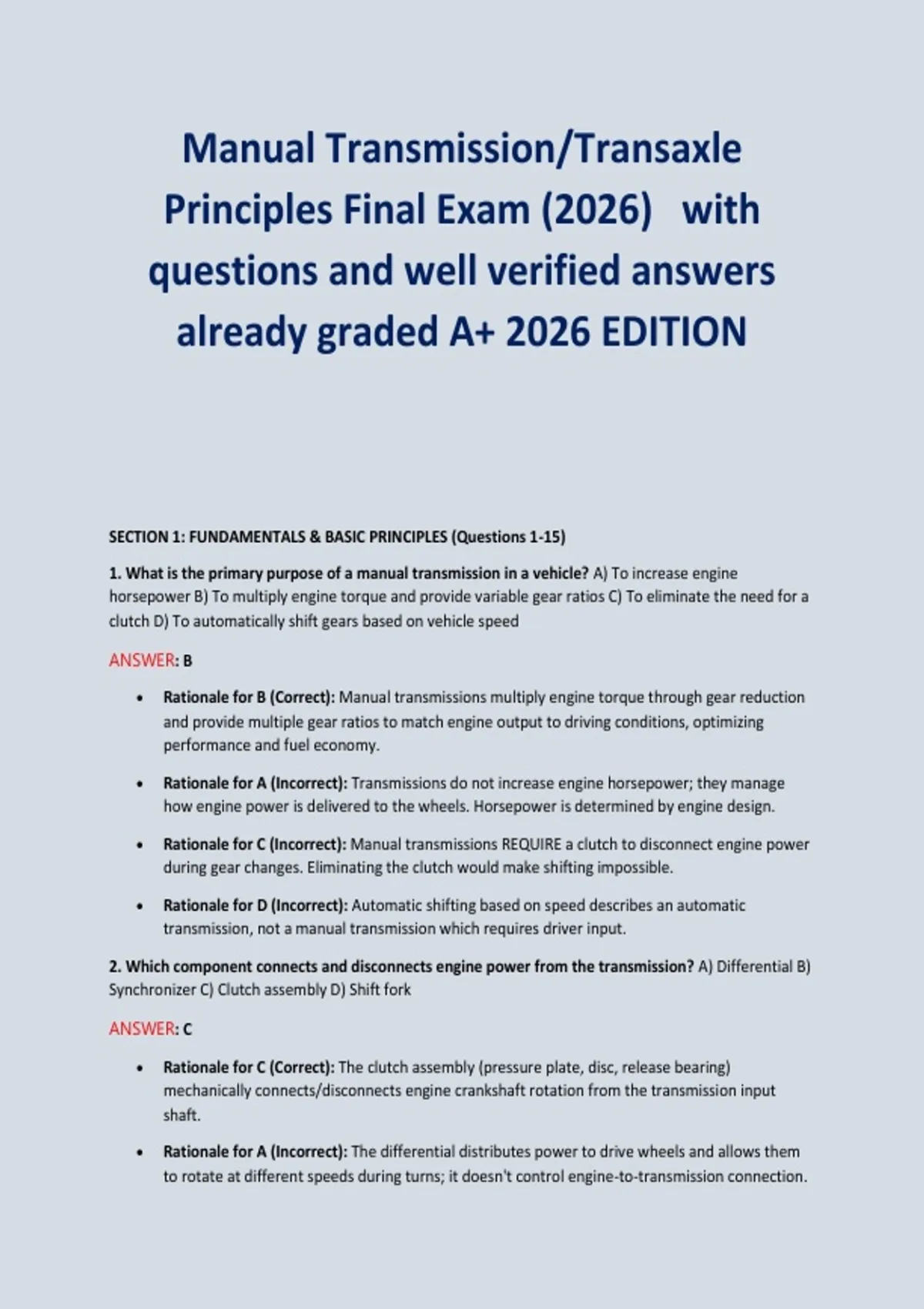

Manual Transmission/Transaxle
Principles Final Exam (2026) with
questions and well verified answers
already graded A+ 2026 EDITION
SECTION 1: FUNDAMENTALS & BASIC PRINCIPLES (Questions 1-15)
1. What is the primary purpose of a manual transmission in a vehicle? A) To increase engine
horsepower B) To multiply engine torque and provide variable gear ratios C) To eliminate the need for a
clutch D) To automatically shift gears based on vehicle speed
ANSWER: B
• Rationale for B (Correct): Manual transmissions multiply engine torque through gear reduction
and provide multiple gear ratios to match engine output to driving conditions, optimizing
performance and fuel economy.
• Rationale for A (Incorrect): Transmissions do not increase engine horsepower; they manage
how engine power is delivered to the wheels. Horsepower is determined by engine design.
• Rationale for C (Incorrect): Manual transmissions REQUIRE a clutch to disconnect engine power
during gear changes. Eliminating the clutch would make shifting impossible.
• Rationale for D (Incorrect): Automatic shifting based on speed describes an automatic
transmission, not a manual transmission which requires driver input.
2. Which component connects and disconnects engine power from the transmission? A) Differential B)
Synchronizer C) Clutch assembly D) Shift fork
ANSWER: C
• Rationale for C (Correct): The clutch assembly (pressure plate, disc, release bearing)
mechanically connects/disconnects engine crankshaft rotation from the transmission input
shaft.
• Rationale for A (Incorrect): The differential distributes power to drive wheels and allows them
to rotate at different speeds during turns; it doesn't control engine-to-transmission connection.
, • Rationale for B (Incorrect): Synchronizers match gear speeds during shifts but don't control the
fundamental power flow from engine to transmission.
• Rationale for D (Incorrect): Shift forks physically move synchronizers/gears but don't control
power connection between engine and transmission.
3. In a manual transmission, what does "gear ratio" represent? A) The physical size comparison
between gears B) The relationship between input shaft speed and output shaft speed C) The number of
gears in the transmission D) The torque capacity of the transmission
ANSWER: B
• Rationale for B (Correct): Gear ratio = Input RPM ÷ Output RPM. A 3:1 ratio means the input
shaft turns 3 times for every 1 output shaft revolution, multiplying torque.
• Rationale for A (Incorrect): While gear size affects ratio, the ratio itself is a mathematical
relationship of rotational speeds, not physical dimensions.
• Rationale for C (Incorrect): The number of forward gears (5-speed, 6-speed) is separate from
the specific ratio value of any individual gear pair.
• Rationale for D (Incorrect): Torque capacity relates to component strength and design limits,
not the speed-reduction ratio definition.
4. Which gear provides the highest torque multiplication? A) Overdrive gear B) Direct drive (1:1) C) First
gear D) Reverse gear
ANSWER: C
• Rationale for C (Correct): First gear has the highest numerical ratio (e.g., 3.5:1 to 4.5:1),
providing maximum torque multiplication for starting from rest and climbing steep grades.
• Rationale for A (Incorrect): Overdrive gears have ratios less than 1:1 (e.g., 0.75:1), reducing
engine RPM at highway speeds but DECREASING torque multiplication.
• Rationale for B (Incorrect): Direct drive (typically 4th gear in 5-speeds) has a 1:1 ratio with no
torque multiplication or reduction.
• Rationale for D (Incorrect): While reverse often has a high ratio similar to first gear, it's not
typically HIGHER than first gear, and the question asks for the gear providing highest
multiplication in normal operation.
5. What is the function of the pilot bearing or bushing? A) To align the clutch disc during installation B)
To support the transmission input shaft tip in the crankshaft C) To lubricate the clutch release bearing D)
To adjust clutch pedal free play
ANSWER: B
• Rationale for B (Correct): The pilot bearing/bushing is pressed into the engine crankshaft or
flywheel to support the transmission input shaft's front end, ensuring proper alignment and
reducing vibration.
, • Rationale for A (Incorrect): Clutch alignment tools (not pilot bearings) center the clutch disc
during installation. The pilot bearing's function is operational, not installation-related.
• Rationale for C (Incorrect): The release bearing (throw-out bearing) has its own lubrication; the
pilot bearing supports the input shaft, not the release mechanism.
• Rationale for D (Incorrect): Clutch pedal free play is adjusted via the clutch cable, hydraulic
master cylinder pushrod, or linkage—not the pilot bearing.
6. Which statement about constant mesh transmissions is TRUE? A) Gears are engaged and disengaged
by sliding them into mesh B) All forward gears are always in mesh; dog clutches or synchronizers select
power flow C) Only reverse gear operates on constant mesh principle D) Constant mesh transmissions
do not require synchronizers
ANSWER: B
• Rationale for B (Correct): In constant mesh designs, all forward gear pairs are permanently
engaged. Synchronizer assemblies with dog teeth slide on the shaft to lock specific gears to the
shaft, selecting which ratio transmits power.
• Rationale for A (Incorrect): Sliding gears into mesh describes obsolete "sliding mesh"
transmissions. Modern manuals use constant mesh with synchronizers.
• Rationale for C (Incorrect): Reverse gear often uses a sliding idler gear (not constant mesh) to
change rotation direction, while forward gears use constant mesh.
• Rationale for D (Incorrect): Most constant mesh transmissions USE synchronizers to match
speeds before dog teeth engage, preventing gear clash. Some racing boxes use dog rings
without synchronizers, but this isn't standard.
7. What causes "gear clash" or "grinding" during shifting? A) Excessive clutch pedal free play B)
Mismatched rotational speeds between gear and synchronizer C) Low transmission fluid level D) Worn
universal joints
ANSWER: B
• Rationale for B (Correct): Gear clash occurs when the synchronizer cannot match the speed of
the target gear to the shaft speed before engagement, causing metal-to-metal contact between
dog teeth.
• Rationale for A (Incorrect): Excessive free play causes incomplete clutch disengagement, which
can PREVENT clean shifts, but the actual grinding noise comes from speed mismatch during
engagement.
• Rationale for C (Incorrect): Low fluid can cause lubrication issues and overheating but doesn't
directly cause the mechanical clash of gear teeth during shifting.
• Rationale for D (Incorrect): Worn U-joints cause driveline vibrations and clunks, not
transmission gear grinding during shifts.
, 8. Which component matches the speed of a gear to the shaft before engagement? A) Shift fork B)
Detent ball and spring C) Synchronizer assembly D) Interlock pin
ANSWER: C
• Rationale for C (Correct): Synchronizers use friction cones (blocking rings) to bring the gear and
shaft to identical RPM before the dog teeth engage, enabling smooth, clash-free shifts.
• Rationale for A (Incorrect): Shift forks physically move the synchronizer sleeve but don't
perform the speed-matching function themselves.
• Rationale for B (Incorrect): Detent balls/springs hold the shift rail in position (providing "feel")
but don't synchronize rotational speeds.
• Rationale for D (Incorrect): Interlock pins prevent selecting two gears simultaneously but play
no role in speed synchronization.
9. In a typical rear-wheel-drive manual transmission, power flows from: A) Output shaft →
Countershaft → Input shaft B) Input shaft → Countershaft → Output shaft C) Countershaft → Input shaft
→ Output shaft D) Output shaft → Input shaft → Countershaft
ANSWER: B
• Rationale for B (Correct): Engine power enters via the input shaft, drives the countershaft
(layshaft) through a fixed gear pair, and the countershaft then drives selected gears on the
output shaft to deliver power to the driveshaft.
• Rationale for A (Incorrect): This reverses the actual power flow direction. Output shaft is the
final drive element, not the input.
• Rationale for C (Incorrect): The countershaft is driven BY the input shaft; it cannot drive the
input shaft in normal operation.
• Rationale for D (Incorrect): This sequence doesn't reflect the mechanical power path in any
standard manual transmission design.
10. What is the purpose of the neutral position in a manual transmission? A) To allow the engine to
start without moving the vehicle B) To disconnect all gear sets so no power flows to output shaft C) To
reduce transmission fluid pressure D) To engage the parking pawl
ANSWER: B
• Rationale for B (Correct): In neutral, synchronizer sleeves are centered so no dog teeth engage
any gear. The input shaft may spin, but no power transfers to the output shaft.
• Rationale for A (Incorrect): While neutral allows safe starting, this is a BENEFIT of neutral, not its
mechanical purpose. The clutch also allows starting in gear (though not recommended).
• Rationale for C (Incorrect): Manual transmissions are typically splash-lubricated; neutral doesn't
affect fluid pressure significantly.
