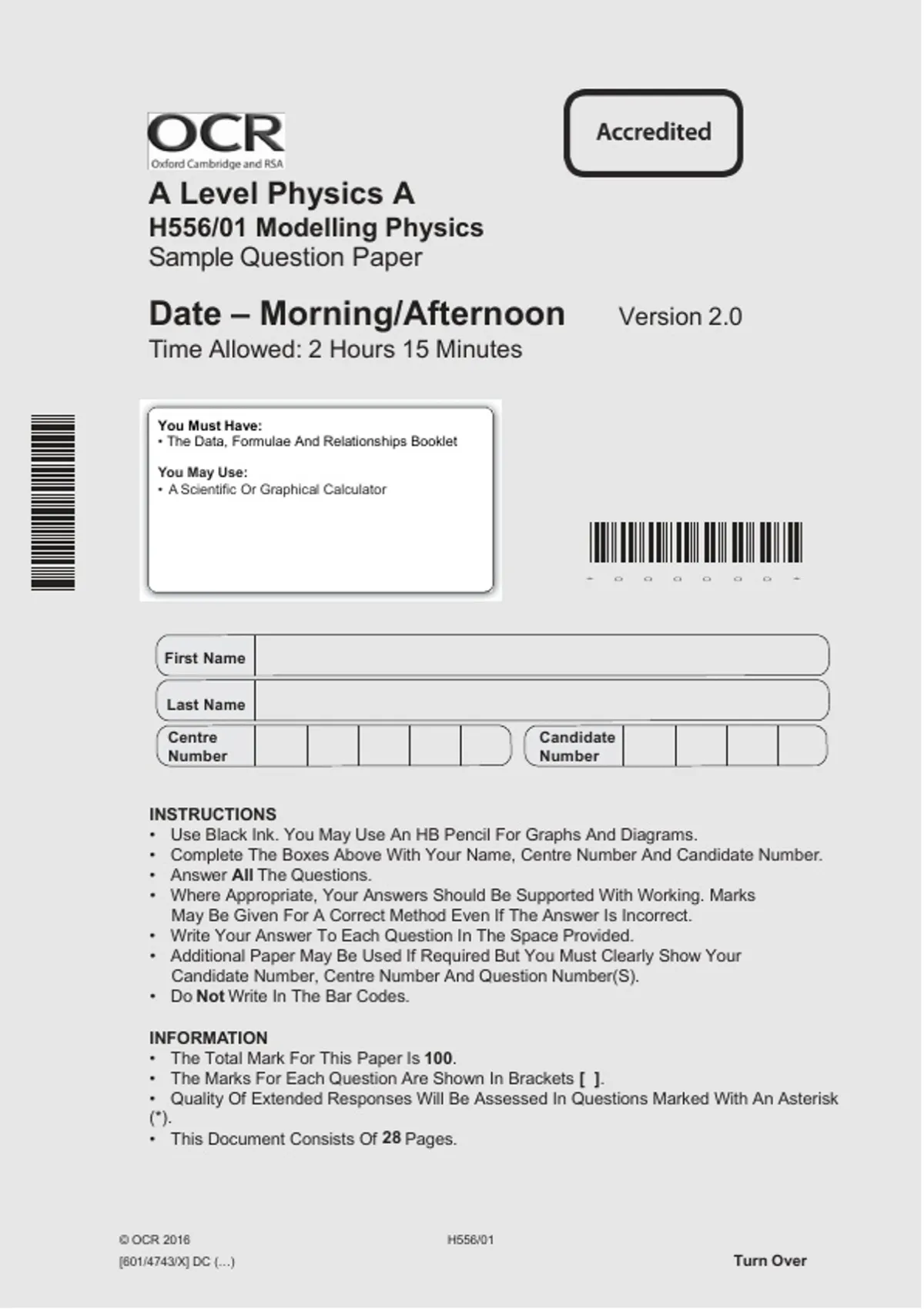

A Level Physics A
H556/01 Modelling Physics
Sample Question Paper
Date – Morning/Afternoon Version 2.0
Time Allowed: 2 Hours 15 Minutes
You Must Have:
• The Data, Formulae And Relationships Booklet
You May Use:
• A Scientific Or Graphical Calculator
* 0 0 0 0 0 0 *
First Name
Last Name
Centre Candidate
Number Number
INSTRUCTIONS
• Use Black Ink. You May Use An HB Pencil For Graphs And Diagrams.
• Complete The Boxes Above With Your Name, Centre Number And Candidate Number.
• Answer All The Questions.
• Where Appropriate, Your Answers Should Be Supported With Working. Marks
May Be Given For A Correct Method Even If The Answer Is Incorrect.
• Write Your Answer To Each Question In The Space Provided.
• Additional Paper May Be Used If Required But You Must Clearly Show Your
Candidate Number, Centre Number And Question Number(S).
• Do Not Write In The Bar Codes.
INFORMATION
• The Total Mark For This Paper Is 100.
• The Marks For Each Question Are Shown In Brackets [ ].
• Quality Of Extended Responses Will Be Assessed In Questions Marked With An Asterisk
(*).
• This Document Consists Of 28 Pages.
© OCR 2016 H556/01
[601/4743/X] DC (…) Turn Over
, 2
SECTION A
You Should Spend A Maximum Of 20 Minutes On This
Section.
Answer All The
Questions.
1 A Length X Is 50 Mm 2 Mm. Length Y Is 100 Mm 6 Mm. The Length Z Is Given By Z = Y -
X.
What Is The Best Estimate Of The Uncertainty
In Z?
A 1 Mm
B 4 Mm
C 5 Mm
D 8 Mm
Your
Answer [1]
2 A 2.0 M Rigid Rod With Negligible Weight Is Subject To Forces In Three Different Ways As
Shown In Diagrams 1-3 Below.
1. 2.
3.
For The Rod To Be In Equilibrium Which Of The Diagrams Above Is/Are Correct?
A 1, 2 And 3
B Only 1 And 2
C Only 2 And 3
D Only 1
© OCR 2016 H556/01
, 3
Your Answer [1]
© OCR 2016 H556/01 Turn over
, 4
3 The P.D. Across A Resistor Is 12 V. The Power Dissipated Is 6.0 W.
Which Statement Is Correct?
A The Charge Passing Through The Resistor In One Second Is 2.0 Coulomb.
B The Resistor Transfers 6.0 Joule For Each Coulomb Passing Through The Resistor.
C The Resistor Transfers 12 Joule In 2.0 Second.
D The Resistor Dissipates 6.0 Joule When The Current Is 2.0 Ampere.
Your
Answer [1]
4 A Spring With Force Constant 0.10 N Cm–1 Is Placed In Series With One Of 0.20 N Cm–1.
These Are Then Placed In Parallel With An Identical Set Of Springs As Shown. A Force Of
0.60 N Is Applied.
0.10 N Cm−1 0.10 N Cm−1
0.20 N Cm−1 0.20 N Cm−1
0.60 N
What Distance Does The Point X Move Down When The 0.60 N Force Is
Applied?
A 2.0 Cm
B 3.0 Cm
C 4.5 Cm
D 9.0 Cm
Your
Answer [1]
© OCR 2016 H556/01
