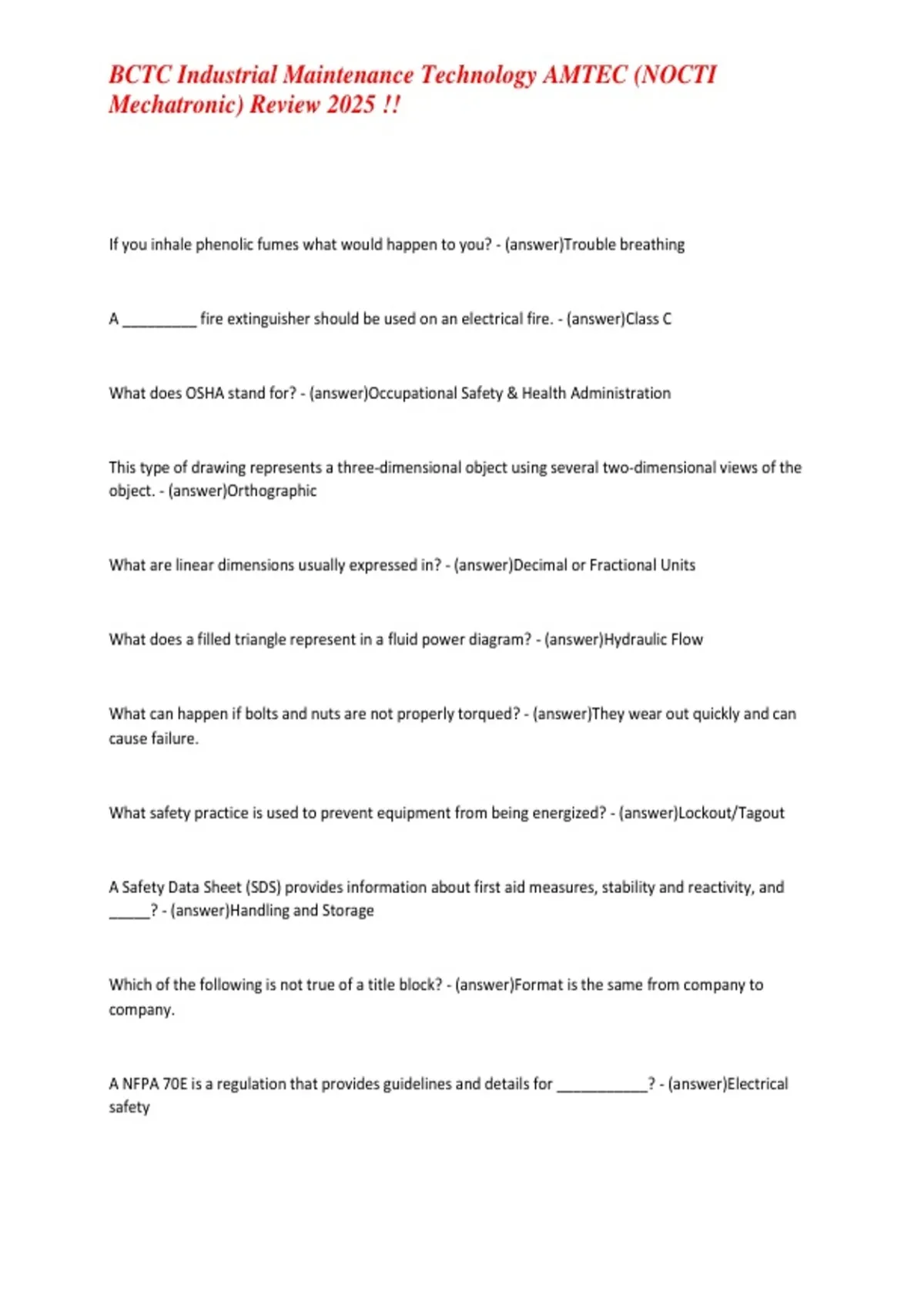

BCTC Industrial Maintenance Technology AMTEC (NOCTI
Mechatronic) Review 2025 !!
If you inhale phenolic fumes what would happen to you? - (answer)Trouble breathing
A _________ fire extinguisher should be used on an electrical fire. - (answer)Class C
What does OSHA stand for? - (answer)Occupational Safety & Health Administration
This type of drawing represents a three-dimensional object using several two-dimensional views of the
object. - (answer)Orthographic
What are linear dimensions usually expressed in? - (answer)Decimal or Fractional Units
What does a filled triangle represent in a fluid power diagram? - (answer)Hydraulic Flow
What can happen if bolts and nuts are not properly torqued? - (answer)They wear out quickly and can
cause failure.
What safety practice is used to prevent equipment from being energized? - (answer)Lockout/Tagout
A Safety Data Sheet (SDS) provides information about first aid measures, stability and reactivity, and
_____? - (answer)Handling and Storage
Which of the following is not true of a title block? - (answer)Format is the same from company to
company.
A NFPA 70E is a regulation that provides guidelines and details for ___________? - (answer)Electrical
safety
,BCTC Industrial Maintenance Technology AMTEC (NOCTI
Mechatronic) Review 2025 !!
GFCI devices are used for what purpose? - (answer)To prevent a person from being electrocuted.
A person with serious electrical injury should be moved only when _______. - (answer)They are in
immediate danger
What must be provided by chemical manufacturers, distributors, and importers to anyone who will work
with these potentially dangerous materials? - (answer)Safety Data Sheet (SDS).
You come across a fellow employee who is being electrocuted by becoming attached to a live electrical
circuit, what is the first thing you should do? - (answer)Shut off the circuit.
What would slippery floors and cluttered walkways be considered in the workplace? - (answer)Physical
hazards.
What tool is used to measure the turning force when tightening a fastener? - (answer)Torque Wrench
When working on an electrical, fluid power, or mechanical system a ____ procedure should be
performed to lock out the energy. - (answer)LOTO
The section of a technical report which summarizes the report's contents is called what? -
(answer)Abstract
What does a thick line represent in a schematic diagram? - (answer)Current flow
A switch is an example of a _____ into a motor control circuit. - (answer)input
How does the overload of a motor provide protection when current exceeds a predetermined value? -
(answer)It opens a normally closed contact.
, BCTC Industrial Maintenance Technology AMTEC (NOCTI
Mechatronic) Review 2025 !!
Overload protection is designed to protect the ______________ by disconnecting it from the power
source when an overload is sensed. - (answer)Electric motor
Motors are normally protected from overload by a _______ device. - (answer)thermal
T/F: A two-wire control for a motor will restart automatically when power is restored after a power
failure. - (answer)True
What is the most common machine wire type? - (answer)THHN
T/F: A three-wire controlled motor will restart automatically after power is restored after a power
failure. - (answer)False
Jogging is a type of motor control in which what happens? - (answer)The motors rotation is moved
(bumped) slightly.
A wire's current carrying limit is known as what? - (answer)Ampacity
A motor _______ is a motor controller that includes overload protection. - (answer)Starter
If a switch is described by the term DPDT, what does this stand for? - (answer)Dual pole, Dual Throw
An interlock prevents two of the three phases on a reversing motor from shorting by doing what? -
(answer)Preventing the opposite coil from shutting it's contacts when a coil is energized.
Wire labelled THW means it has what characteristics? - (answer)Thermoplastic insulated, heat resistant,
damp and wet location.
