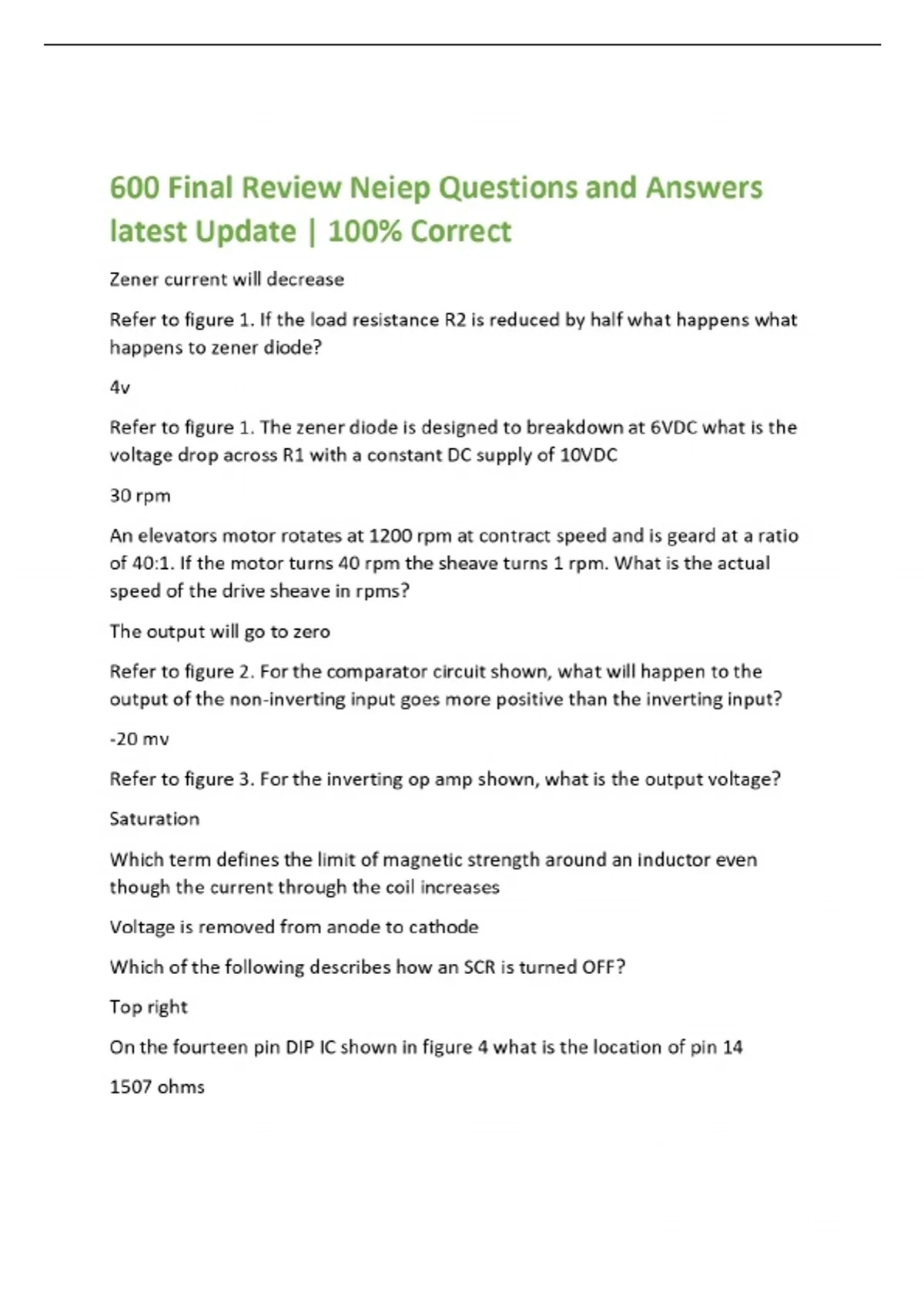

600 Final Review Neiep Questions and Answers latest Update | 100% Correct Zener current will decrease Refer to figure 1. If the load resistance R2 is reduced by half what happens what happens to zener diode? 4v Refer to figure 1. The zener diode is designed to breakdown at 6VDC what is the voltage drop across R1 with a constant DC supply of 10VDC 30 rpm An elevators motor rotates at 1200 rpm at contract speed and is geard at a ratio of 40:1. If the motor turns 40 rpm the sheave turns 1 rpm. What is the actual speed of the drive sheave in rpms? The output will go to zero Refer to figure 2. For the comparator circuit shown, what will happen to the output of the non-inverting input goes more positive than the inverting input? -20 mv Refer to figure 3. For the inverting op amp shown, what is the output voltage? Saturation Which term defines the limit of magnetic strength
