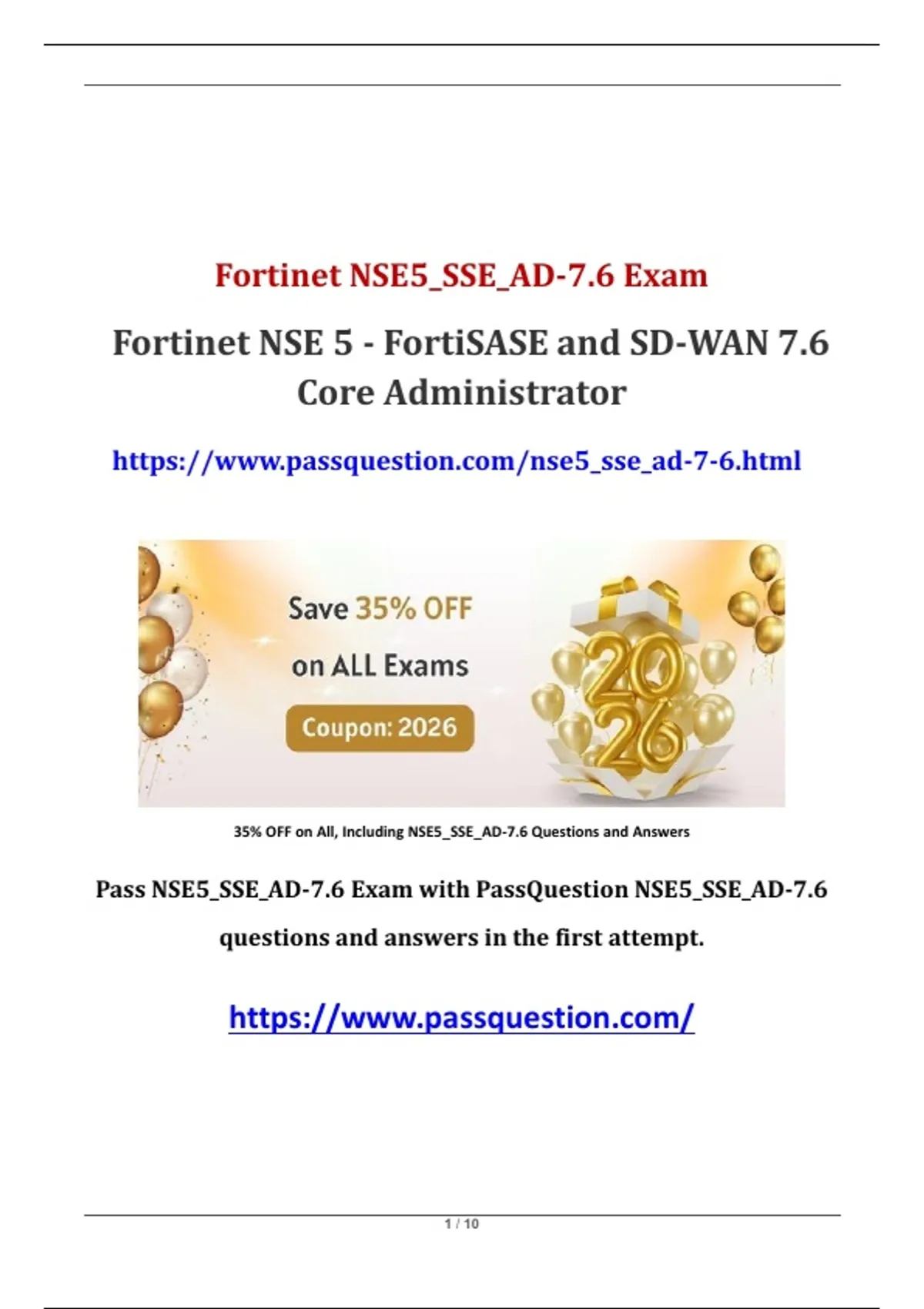

Fortinet NSE5_SSE_AD-7.6 Exam
Fortinet NSE 5 - FortiSASE and SD-WAN 7.6
Core Administrator
https://www.passquestion.com/nse5_sse_ad-7-6.html
35% OFF on All, Including NSE5_SSE_AD-7.6 Questions and Answers
Pass NSE5_SSE_AD-7.6 Exam with PassQuestion NSE5_SSE_AD-7.6
questions and answers in the first attempt.
https://www.passquestion.com/
, 1.SD-WAN interacts with many other FortiGate features. Some of them are required to allow SD-WAN to
steer the traffic.
Which three configuration elements must you configure before FortiGate can steer traffic according to
SD-WAN rules? (Choose three.)
A. Firewall policies
B. Security profiles
C. Interfaces
D. Routing
E. Traffic shaping
Answer: A, C, D
Explanation:
According to the SD-WAN 7.6 Core Administrator study guide and the FortiOS 7.6 Administration Guide,
for the FortiGate SD-WAN engine to successfully steer traffic using SD-WAN rules, three fundamental
configuration components must be in place. This is because the SD-WAN rule lookup occurs only after
certain initial conditions are met in the packet flow:
Interfaces (Option C): You must first define the physical or logical interfaces (such as ISP links, LTE, or
VPN tunnels) as SD-WAN members. These members are then typically grouped into SD-WAN Zones.
Without designated member interfaces, there is no "pool" of links for the SD-WAN rules to select from.
Routing (Option D): For a packet to even be considered by the SD-WAN engine, there must be a
matching route in the Forwarding Information Base (FIB). Usually, this is a static route where the
destination is the network you want to reach, and the gateway interface is set to the SD-WAN virtual
interface (or a specific SD-WAN zone). If there is no route pointing to SD-WAN, the FortiGate will use
other routing table entries (like a standard static route) and bypass the SD-WAN rule-based steering logic
entirely.
Firewall Policies (Option A): In FortiOS, no traffic is allowed to pass through the device unless a Firewall
Policy permits it. To steer traffic, you must have a policy where the Incoming Interface is the internal
network and the Outgoing Interface is the SD-WAN zone (or the virtual-wan-link). The SD-WAN rule
selection happens during the "Dirty" session state, which requires a policy match to proceed with the
session creation.
Why other options are incorrect:
Security Profiles (Option B): While mandatory for Application-level steering (to identify L7 signatures),
basic SD-WAN steering based on IP addresses, ports, or ISDB objects does not require security profiles
to be active.
Traffic Shaping (Option E): This is an optimization feature used to manage bandwidth once steering is
already determined; it is not a prerequisite for the steering engine itself to function.
2.The IT team is wondering whether they will need to continue using MDM tools for future FortiClient
upgrades.
What options are available for handling future FortiClient upgrades?
A. Enable the Endpoint Upgrade feature on the FortiSASE portal.
B. FortiClient will need to be manually upgraded.
C. Perform onboarding for managed endpoint users with a newer FortiClient version.
D. A newer FortiClient version will be auto-upgraded on demand.
Answer: A
