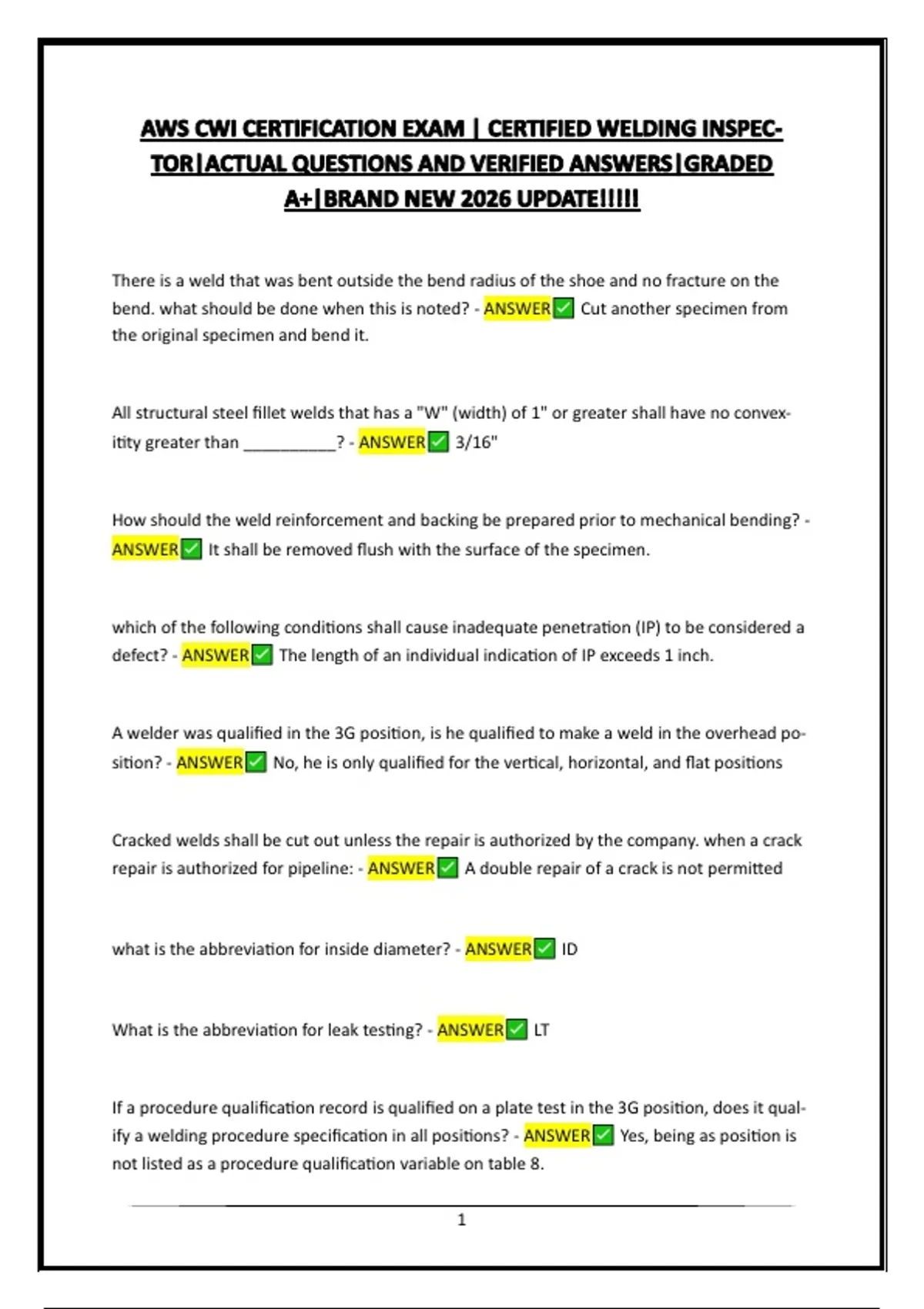

There is a weld that was bent outside the bend radius of the shoe and no fracture on the
bend. what should be done when this is noted? - ANSWER Cut another specimen from
the original specimen and bend it.
All structural steel fillet welds that has a "W" (width) of 1" or greater shall have no convex-
itity greater than __________? - ANSWER 3/16"
How should the weld reinforcement and backing be prepared prior to mechanical bending? -
ANSWER It shall be removed flush with the surface of the specimen.
which of the following conditions shall cause inadequate penetration (IP) to be considered a
defect? - ANSWER The length of an individual indication of IP exceeds 1 inch.
A welder was qualified in the 3G position, is he qualified to make a weld in the overhead po-
sition? - ANSWER No, he is only qualified for the vertical, horizontal, and flat positions
Cracked welds shall be cut out unless the repair is authorized by the company. when a crack
repair is authorized for pipeline: - ANSWER A double repair of a crack is not permitted
what is the abbreviation for inside diameter? - ANSWER ID
What is the abbreviation for leak testing? - ANSWER LT
If a procedure qualification record is qualified on a plate test in the 3G position, does it qual-
ify a welding procedure specification in all positions? - ANSWER Yes, being as position is
not listed as a procedure qualification variable on table 8.
1
, Arc burns on the parent metal shall not exceed ________ in length? - ANSWER never ac-
cepted, regardless of their length
What is an alternate term for weld face in the pipeline application? - ANSWER Crown sur-
face.
When more than one welder is welding on the same test piece for qualification, failure of
any portion of a single test weldment for performance qualification constitutes failure for
what. - ANSWER All processes used in the test, All welders in the test.
True or False: the number of filler and finish beads should allow the completed weld substi-
tutionally uniform cross section around the circumference of the pipe? - ANSWER True.
How much undertolerance are you allowed if the tensile specimen breaks in the base metal
or fusion zone? - ANSWER 5%
True or False: The AWS Part B Book of Specifications contains requirements for welding oper-
ators and tack welders? - ANSWER False
What is the preferred term for "arc strike" in pipeline applications? - ANSWER Arc burn
What is the abbreviation for welder qualification test record? - ANSWER WQTR
True or False: according to Clause 3 (Pipeline), cluster porosity shall be considered a defect if
the diameter of the cluster exceeds 1/2 inch? - ANSWER True
What statements is correct for base materials used in structural applications? - ANSWER
the depth of a mill induced discontinuity is the depth measured from the cut surface.
2
bend. what should be done when this is noted? - ANSWER Cut another specimen from
the original specimen and bend it.
All structural steel fillet welds that has a "W" (width) of 1" or greater shall have no convex-
itity greater than __________? - ANSWER 3/16"
How should the weld reinforcement and backing be prepared prior to mechanical bending? -
ANSWER It shall be removed flush with the surface of the specimen.
which of the following conditions shall cause inadequate penetration (IP) to be considered a
defect? - ANSWER The length of an individual indication of IP exceeds 1 inch.
A welder was qualified in the 3G position, is he qualified to make a weld in the overhead po-
sition? - ANSWER No, he is only qualified for the vertical, horizontal, and flat positions
Cracked welds shall be cut out unless the repair is authorized by the company. when a crack
repair is authorized for pipeline: - ANSWER A double repair of a crack is not permitted
what is the abbreviation for inside diameter? - ANSWER ID
What is the abbreviation for leak testing? - ANSWER LT
If a procedure qualification record is qualified on a plate test in the 3G position, does it qual-
ify a welding procedure specification in all positions? - ANSWER Yes, being as position is
not listed as a procedure qualification variable on table 8.
1
, Arc burns on the parent metal shall not exceed ________ in length? - ANSWER never ac-
cepted, regardless of their length
What is an alternate term for weld face in the pipeline application? - ANSWER Crown sur-
face.
When more than one welder is welding on the same test piece for qualification, failure of
any portion of a single test weldment for performance qualification constitutes failure for
what. - ANSWER All processes used in the test, All welders in the test.
True or False: the number of filler and finish beads should allow the completed weld substi-
tutionally uniform cross section around the circumference of the pipe? - ANSWER True.
How much undertolerance are you allowed if the tensile specimen breaks in the base metal
or fusion zone? - ANSWER 5%
True or False: The AWS Part B Book of Specifications contains requirements for welding oper-
ators and tack welders? - ANSWER False
What is the preferred term for "arc strike" in pipeline applications? - ANSWER Arc burn
What is the abbreviation for welder qualification test record? - ANSWER WQTR
True or False: according to Clause 3 (Pipeline), cluster porosity shall be considered a defect if
the diameter of the cluster exceeds 1/2 inch? - ANSWER True
What statements is correct for base materials used in structural applications? - ANSWER
the depth of a mill induced discontinuity is the depth measured from the cut surface.
2
