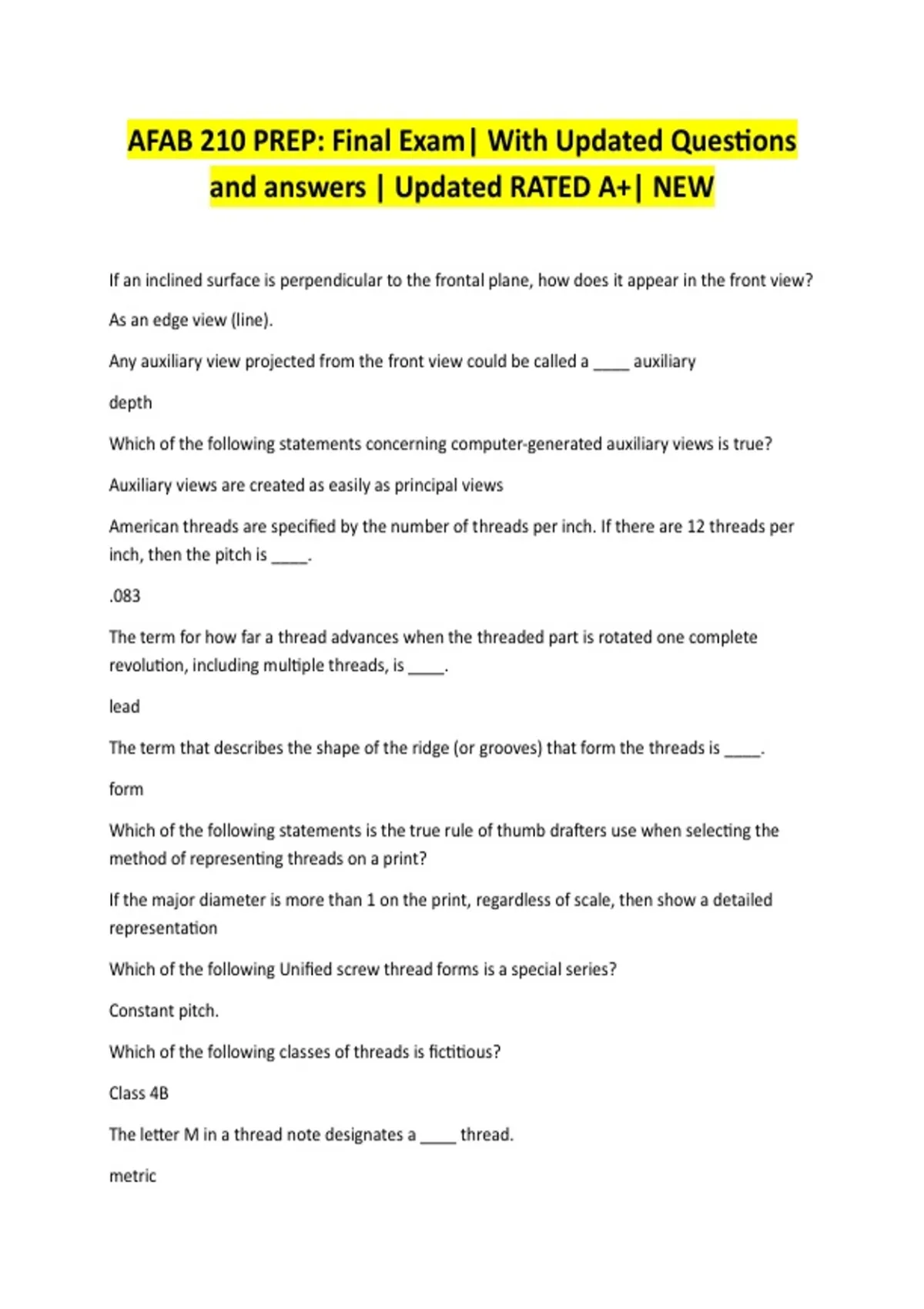

AFAB 210 PREP: Final Exam| With Updated Ques ons
and answers | Updated RATED A+| NEW
If an inclined surface is perpendicular to the frontal plane, how does it appear in the front view?
As an edge view (line).
Any auxiliary view projected from the front view could be called a ____ auxiliary
depth
Which of the following statements concerning computer-generated auxiliary views is true?
Auxiliary views are created as easily as principal views
American threads are specified by the number of threads per inch. If there are 12 threads per
inch, then the pitch is ____.
.083
The term for how far a thread advances when the threaded part is rotated one complete
revolu*on, including mul*ple threads, is ____.
lead
The term that describes the shape of the ridge (or grooves) that form the threads is ____.
form
Which of the following statements is the true rule of thumb dra+ers use when selec*ng the
method of represen*ng threads on a print?
If the major diameter is more than 1 on the print, regardless of scale, then show a detailed
representa*on
Which of the following Unified screw thread forms is a special series?
Constant pitch.
Which of the following classes of threads is fic**ous?
Class 4B
The le0er M in a thread note designates a ____ thread.
metric
,A ____ dimension features a numeric value used to describe the theore*cal exact size or
loca*on in GD&T.
basic
Material condi*on modifiers can be used to indicate that a ____ tolerance can be applied.
bonus
Which of the following symbols is no longer used according to the current standard?
Encircled S (regardless of feature size)
Specific points, lines, or areas of contact can be specified with ____.
datum targets
Which of the following GD&T controls is not a form tolerance?
Runout.
The condi*on of a surface having all elements in one plane is ____.
flatness
The condi*on of a surface, median plane, or axis exis*ng at a right angle to a datum plane or
axis is known as ____.
perpendicularity
A geometric tolerance that can be measured with a dial indicator to determine the varia*on of
surface points as the part is rotated about a datum axis is ____.
runout
It is important to note that a surface could be perfectly cylindrical, but if it is not ____ with the
datum axis,then runout can occur.
coaxial
A double layer feature control frame is used for a ____ tolerance
composite
A local note may use a ____ that associates the indicated feature to one of the numbered
general notes.
flag
, Three of the following terms are similar. Which term does not belong?
Broach.
Beveled edges on parts are called ____.
chamfers
A pa0ern of ridges and grooves cut into a cylindrical surface for the purpose of providing a grip
is called a
knurl
special machine using a cu0er that progressively "punches" a shape with a series of cu<ng
teeth is called a
broach
Which of the following terms is not covered by surface texture specifica*ons?
Flatness.
Specifically, the fine irregulari*es in the texture of the surface are defined as
surface roughness
Which of the following is not a choice for a lay symbol
L
Which of the following is not a choice for placing a surface texture symbol on a view?
Center line of a cylinder
A number under the horizontal bar on the right side of the check mark symbol specifies the
____.
sampling length
AFAB 115 Final Study Guide
What does the aircra+ structures basic construc*on consists of?
The fuselage, wings, empennage, landing gear, and powerplants.
What should the bearing strength of the sheet metal and the shear strength of the rivet be?
rela*vely equal
