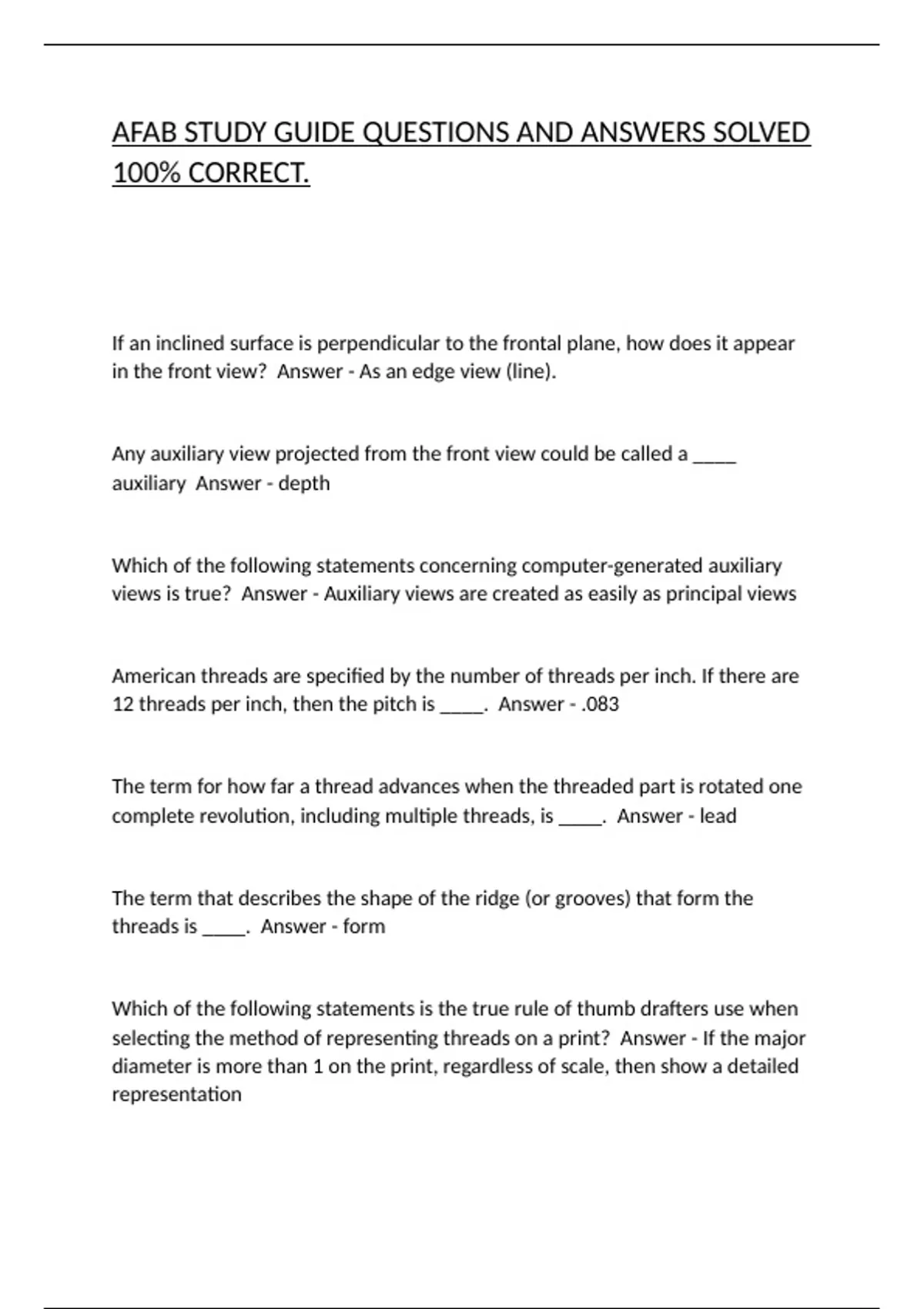

AFAB STUDY GUIDE QUESTIONS AND ANSWERS SOLVED
100% CORRECT.
If an inclined surface is perpendicular to the frontal plane, how does it appear
in the front view? Answer - As an edge view (line).
Any auxiliary view projected from the front view could be called a ____
auxiliary Answer - depth
Which of the following statements concerning computer-generated auxiliary
views is true? Answer - Auxiliary views are created as easily as principal views
American threads are specified by the number of threads per inch. If there are
12 threads per inch, then the pitch is ____. Answer - .083
The term for how far a thread advances when the threaded part is rotated one
complete revolution, including multiple threads, is ____. Answer - lead
The term that describes the shape of the ridge (or grooves) that form the
threads is ____. Answer - form
Which of the following statements is the true rule of thumb drafters use when
selecting the method of representing threads on a print? Answer - If the major
diameter is more than 1 on the print, regardless of scale, then show a detailed
representation
