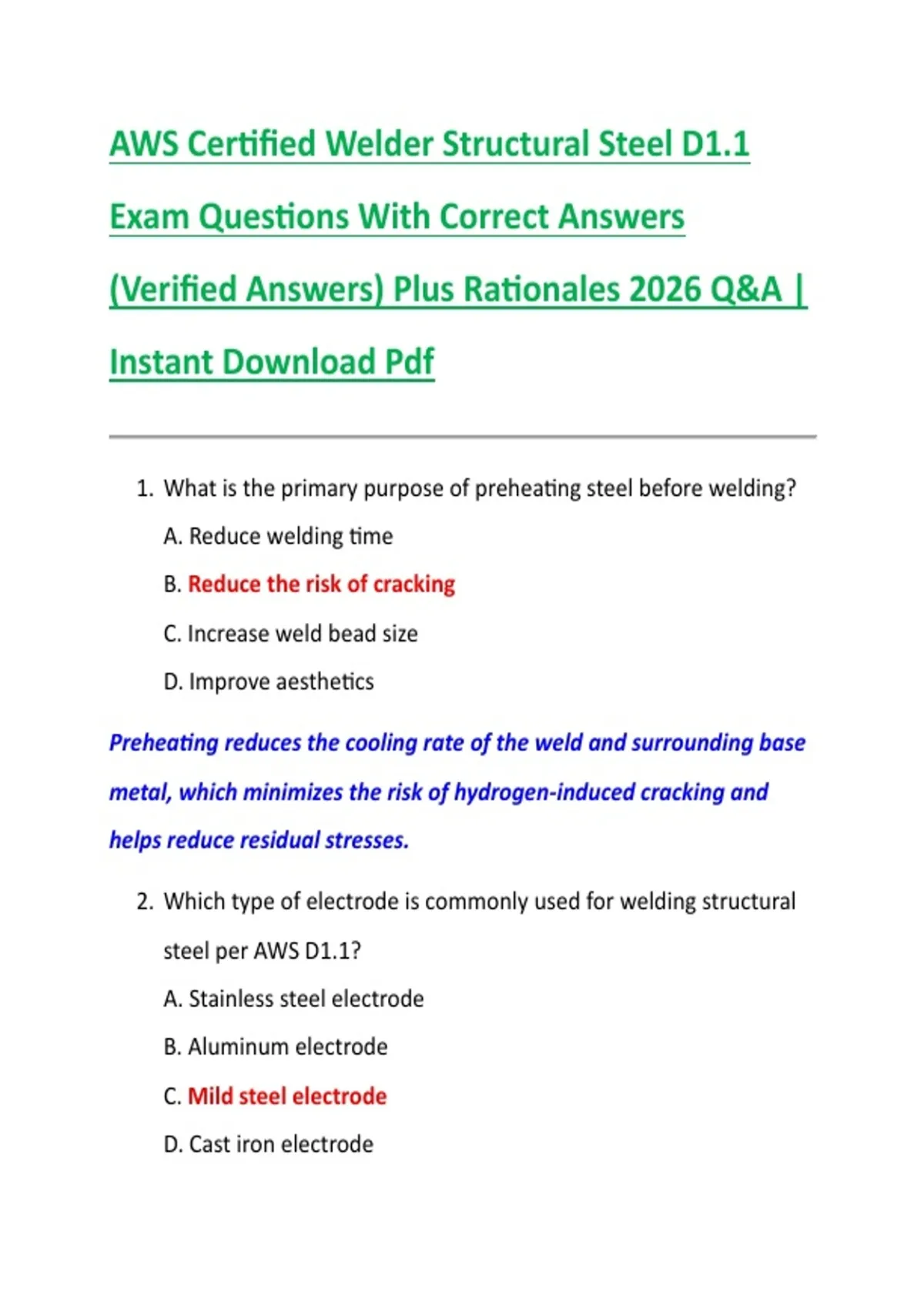

AWS Certified Welder Structural Steel D1.1
Exam Questions With Correct Answers
(Verified Answers) Plus Rationales 2026 Q&A |
Instant Download Pdf
1. What is the primary purpose of preheating steel before welding?
A. Reduce welding time
B. Reduce the risk of cracking
C. Increase weld bead size
D. Improve aesthetics
Preheating reduces the cooling rate of the weld and surrounding base
metal, which minimizes the risk of hydrogen-induced cracking and
helps reduce residual stresses.
2. Which type of electrode is commonly used for welding structural
steel per AWS D1.1?
A. Stainless steel electrode
B. Aluminum electrode
C. Mild steel electrode
D. Cast iron electrode
,Mild steel electrodes are compatible with structural carbon steels and
meet AWS specifications for D1.1 welding.
3. What is the recommended interpass temperature for welding
high-strength low-alloy steel?
A. 100°F (38°C)
B. 200°F (93°C)
C. 250°F (121°C)
D. 400°F (204°C)
Maintaining the interpass temperature below the maximum
recommended ensures that the steel retains its mechanical properties
and avoids excessive hardness.
4. In shielded metal arc welding (SMAW), what is the purpose of the
flux coating on the electrode?
A. Reduce current
B. Protect the weld from atmospheric contamination
C. Increase deposition rate
D. Cool the weld
The flux coating melts during welding, forming a slag that protects the
molten metal from oxygen and nitrogen in the atmosphere,
preventing porosity and defects.
, 5. Which type of joint is commonly used for connecting two plates
edge-to-edge in structural steelwork?
A. Lap joint
B. T-joint
C. Corner joint
D. Butt joint
Butt joints join two pieces end-to-end, which is typical in structural
steel to achieve a continuous member with full-strength welds.
6. What is the purpose of post-weld heat treatment (PWHT)?
A. Improve paint adhesion
B. Relieve residual stress and reduce hardness
C. Increase weld bead thickness
D. Speed up welding
PWHT is applied to high-strength or thick materials to relieve residual
stresses, prevent cracking, and restore ductility.
7. Which welding position is designated as 1G according to AWS
standards?
A. Vertical position
B. Flat position
C. Horizontal position
D. Overhead position
, 1G indicates a flat groove weld where the plate is positioned
horizontally and the welding is performed from above.
8. In a fillet weld, which dimension is most critical to ensure proper
strength?
A. Weld length
B. Leg length
C. Root gap
D. Weld color
The leg length of a fillet weld directly affects the throat size, which
determines the weld's load-carrying capacity.
9. What is the primary concern when welding near previously
hardened areas of steel?
A. Weld color
B. Cracking due to high hardness
C. Electrical conductivity
D. Reduced deposition
High hardness in the heat-affected zone increases susceptibility to
cracking. Proper preheating and interpass control are essential.
10. Which welding process produces the least spatter?
A. SMAW
B. Gas Metal Arc Welding (GMAW)
