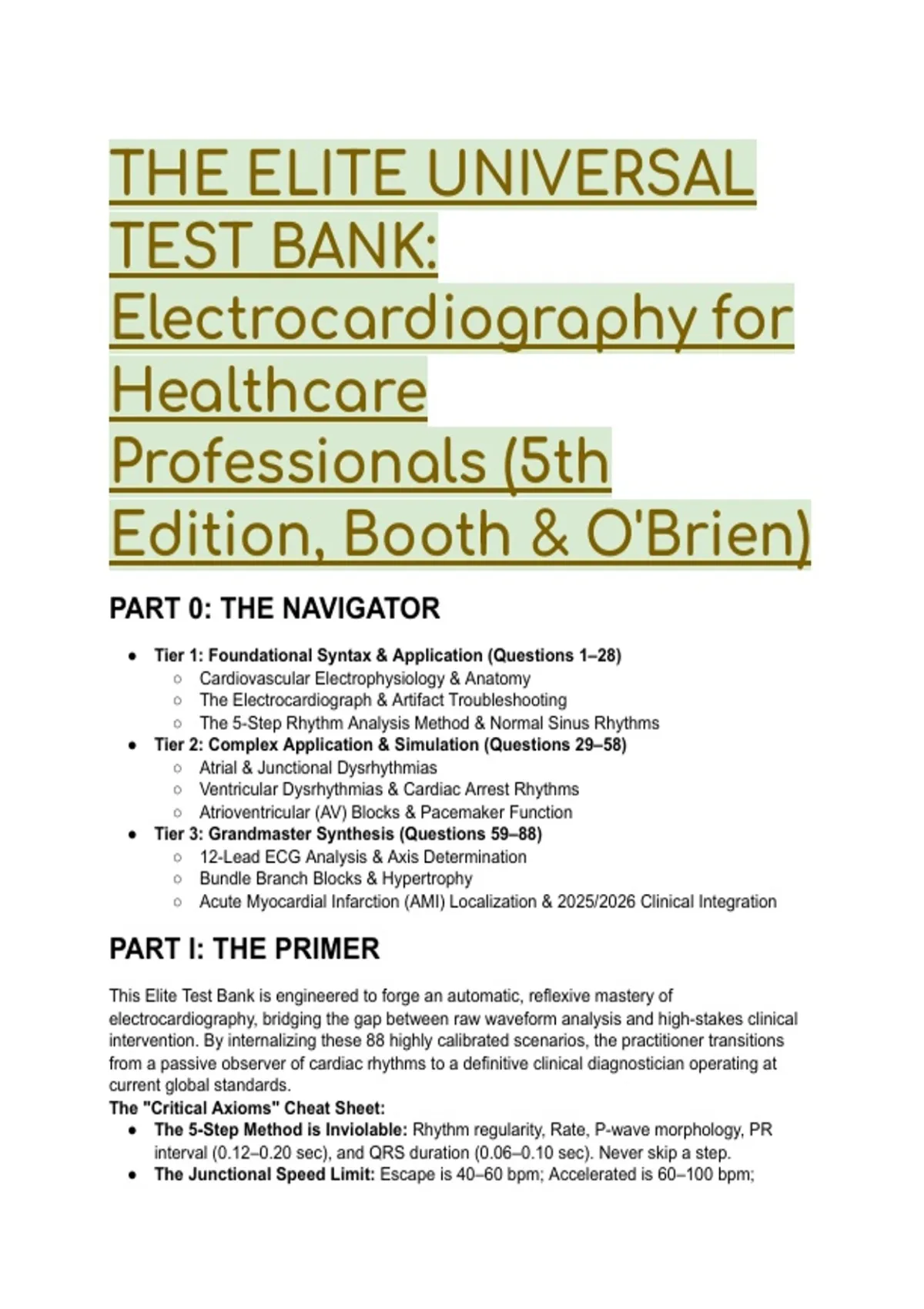

THE ELITE UNIVERSAL
TEST BANK:
Electrocardiography for
Healthcare
Professionals (5th
Edition, Booth & O'Brien)
PART 0: THE NAVIGATOR
● Tier 1: Foundational Syntax & Application (Questions 1–28)
○ Cardiovascular Electrophysiology & Anatomy
○ The Electrocardiograph & Artifact Troubleshooting
○ The 5-Step Rhythm Analysis Method & Normal Sinus Rhythms
● Tier 2: Complex Application & Simulation (Questions 29–58)
○ Atrial & Junctional Dysrhythmias
○ Ventricular Dysrhythmias & Cardiac Arrest Rhythms
○ Atrioventricular (AV) Blocks & Pacemaker Function
● Tier 3: Grandmaster Synthesis (Questions 59–88)
○ 12-Lead ECG Analysis & Axis Determination
○ Bundle Branch Blocks & Hypertrophy
○ Acute Myocardial Infarction (AMI) Localization & 2025/2026 Clinical Integration
PART I: THE PRIMER
This Elite Test Bank is engineered to forge an automatic, reflexive mastery of
electrocardiography, bridging the gap between raw waveform analysis and high-stakes clinical
intervention. By internalizing these 88 highly calibrated scenarios, the practitioner transitions
from a passive observer of cardiac rhythms to a definitive clinical diagnostician operating at
current global standards.
The "Critical Axioms" Cheat Sheet:
● The 5-Step Method is Inviolable: Rhythm regularity, Rate, P-wave morphology, PR
interval (0.12–0.20 sec), and QRS duration (0.06–0.10 sec). Never skip a step.
● The Junctional Speed Limit: Escape is 40–60 bpm; Accelerated is 60–100 bpm;
, Tachycardia is >100 bpm. Inverted or absent P-waves dictate the junctional origin.
● The Ventricular Width: Any QRS complex measuring \ge 0.12 seconds originates in the
ventricles or suffers from a supraventricular conduction delay (Bundle Branch Block).
● The Ischemia-Injury-Infarct Continuum: ST depression indicates ischemia; ST
elevation indicates acute injury; pathological Q-waves indicate irreversible infarction.
● Axis Determination (Leads I & aVF): Both positive = Normal Axis. Lead I positive, aVF
negative = Left Axis Deviation. Lead I negative, aVF positive = Right Axis Deviation.
Parameter Standard Measurement Clinical Implication of Variance
Small Box 0.04 seconds Fundamental unit of horizontal
time measurement.
Large Box 0.20 seconds 5 small boxes; used for the 300
rapid-rate calculation method.
PR Interval 0.12 – 0.20 seconds >0.20 sec indicates AV block;
<0.12 sec indicates accessory
pathway or junctional origin.
QRS Duration 0.06 – 0.10 seconds \ge 0.12 sec indicates
ventricular origin or bundle
branch block.
Standard Gain 10 mm/mV Controls vertical amplitude;
half-standard (5 mm/mV) is
used for massive voltage (e.g.,
LVH).
PART II: THE ELITE TEST BANK
Tier 1 - Foundational Syntax & Application
Q1: A technician is preparing a patient with a right below-the-knee amputation for a standard
12-lead ECG. Based on the principles of standard limb lead placement, which action is the
MOST ACCURATE? A) Place the right leg electrode on the right lower abdomen and the left leg
electrode on the left lower abdomen. B) Place the right leg electrode on the right thigh and leave
the left leg electrode on the left lower leg. C) Omit the right leg electrode entirely, as it is only a
ground wire. D) Place the right leg electrode on the patient's right arm to maintain distance.
● The Answer: A (Place the right leg electrode on the right lower abdomen and the left leg
electrode on the left lower abdomen.)
● Distractor Analysis:
○ A is incorrect: Limb electrodes must be placed symmetrically to maintain the
integrity of Einthoven's Triangle.
○ B is incorrect: Placing electrodes at asymmetrical distal/proximal points alters the
electrical geometry and introduces artifact.
○ D is incorrect: Moving a leg lead to an arm completely alters the designated
electrical vectors of the standard bipolar leads.
The Mentor's Analysis: Symmetrical placement is non-negotiable for limb leads. When facing an
amputation or cast, the immediate priority is moving the electrodes proximally, but equally, on
both sides. By utilizing symmetrical repositioning, the clinician bypasses the common trap of
altering the geometric axis of the recording. Professional/Academic Intuition: Einthoven's
Triangle requires geometric balance; always match limb lead placement bilaterally.
Q2: During continuous monitoring of a 65-year-old male, the tracing displays a thick, fuzzy
,baseline that obscures the P-waves. The QRS complexes are visible but distorted. Based on
the principles of artifact troubleshooting, which action is FIRST? A) Provide the patient with a
warm blanket to stop shivering. B) Instruct the patient to hold their breath for 10 seconds. C)
Unplug nearby non-essential medical equipment and check the ground wire. D) Re-prep the
skin with an alcohol swab and replace the electrodes.
● The Answer: C (Unplug nearby non-essential medical equipment and check the ground
wire.)
● Distractor Analysis:
○ A is incorrect: A warm blanket treats somatic tremor (choppy, erratic spikes), not the
thick, uniform fuzziness of AC interference.
○ B is incorrect: Breath-holding resolves a wandering baseline caused by respiratory
excursion.
○ D is incorrect: Skin prep addresses wandering baseline or loss of capture, not AC
interference.
The Mentor's Analysis: The morphology of the artifact dictates the intervention. When facing a
thick, fuzzy baseline, the immediate priority is identifying electrical bleed. By utilizing AC
interference protocols, the technician bypasses the common trap of unnecessarily disrupting the
patient's physical setup. Professional/Academic Intuition: Choppy = Muscle (Somatic); Wavy =
Breathing/Sweat (Wandering); Fuzzy = Electrical (AC).
Q3: A rhythm strip generated at 25 mm/sec reveals exactly 4 large boxes between consecutive
R-waves. The rhythm is perfectly regular. Based on the 1500 method, what is the MOST
ACCURATE heart rate? A) 60 bpm B) 75 bpm C) 100 bpm D) 150 bpm
● The Answer: B (75 bpm)
● Distractor Analysis:
○ A is incorrect: 60 bpm corresponds to 5 large boxes ( = 60).
○ C is incorrect: 100 bpm corresponds to 3 large boxes ( = 100).
○ D is incorrect: 150 bpm corresponds to 2 large boxes.
The Mentor's Analysis: Precise rate calculation is the foundation of rhythm interpretation. When
facing a regular rhythm, the immediate priority is the 1500 method (or 300 sequence). By
utilizing small box division (1500/20), the clinician bypasses the common trap of the inaccurate
6-second times-ten estimation on regular rhythms. Professional/Academic Intuition: The
6-second method is for irregular rhythms; the 1500 method is for clinical precision.
Q4: A 45-year-old patient presents with a regular rhythm. The PR interval is measured at 0.16
seconds, and the QRS complex measures 0.08 seconds. Based on the 5-step method of rhythm
analysis, which conclusion is the MOST ACCURATE? A) The patient has a first-degree AV
block. B) The patient has a bundle branch block. C) The atrial and ventricular conduction times
are within normal limits. D) The rhythm originates from the AV junction.
● The Answer: C (The atrial and ventricular conduction times are within normal limits.)
● Distractor Analysis:
○ A is incorrect: A first-degree AV block requires a PR interval > 0.20 seconds.
○ B is incorrect: A bundle branch block requires a QRS \ge 0.12 seconds.
○ D is incorrect: Junctional rhythms have shortened PR intervals (< 0.12s) or
inverted/absent P-waves.
The Mentor's Analysis: Time is tissue in electrophysiology. When facing interval measurements,
the immediate priority is comparing them to the hard physiological limits. By utilizing normal
threshold parameters, the clinician bypasses the common trap of over-diagnosing benign
tracings. Professional/Academic Intuition: Memorize the hard decks: PR max is 0.20s; QRS
max is 0.10s.
, Q5: When placing the precordial leads for a 12-lead ECG, the 4th intercostal space at the right
sternal border is located. Based on Booth & O'Brien's placement guidelines, which electrode is
placed at this exact location? A) V1 B) V2 C) V3 D) V4R
● The Answer: A (V1)
● Distractor Analysis:
○ B is incorrect: V2 is at the 4th ICS, left sternal border.
○ C is incorrect: V3 is placed midway between V2 and V4.
○ D is incorrect: V4R is used for right ventricular infarction, placed on the right
mid-clavicular line, 5th ICS.
The Mentor's Analysis: Proper precordial placement ensures diagnostic accuracy for septal and
anterior views. When facing chest lead application, the immediate priority is finding the Angle of
Louis to locate the 2nd rib, dropping down to the 4th ICS for V1/V2. By utilizing strict anatomical
landmarks, the technician bypasses the common trap of "eyeballing" lead placement, which
alters the QRS morphology. Professional/Academic Intuition: V1 and V2 are the only standard
leads placed in the 4th intercostal space.
Q6: An ECG tracing shows a regular rhythm at 48 bpm. The P-waves are upright and uniform,
there is one P-wave for every QRS, and the PR interval is 0.18 seconds. Based on the
parameters of sinus node function, which conclusion is the MOST ACCURATE? A) Junctional
Escape Rhythm B) Sinus Bradycardia C) Second-degree AV Block Type I D) Idioventricular
Rhythm
● The Answer: B (Sinus Bradycardia)
● Distractor Analysis:
○ A is incorrect: Junctional rhythms feature inverted, absent, or retrograde P-waves
with PR <0.12s.
○ C is incorrect: Second-degree Type I exhibits progressively lengthening PR
intervals.
○ D is incorrect: Idioventricular rhythms have wide QRS complexes and absent
P-waves.
The Mentor's Analysis: Rate determines the specific nomenclature of sinus rhythms. When
facing a slow, regular rhythm with normal P-waves, the immediate priority is confirming the SA
node as the pacemaker. By utilizing P-wave morphology, the clinician bypasses the common
trap of confusing sinus bradycardia with junctional escape. Professional/Academic Intuition:
Upright P in Lead II means the impulse originated high in the SA node, regardless of the
speed.
Q7: A patient's ECG reveals a rhythm that irregularly speeds up during inspiration and slows
down during expiration. All P-waves are uniform, and PR/QRS intervals are normal. Based on
sinus rhythm classifications, which action is the MOST ACCURATE? A) Prepare for immediate
transcutaneous pacing. B) Administer Atropine for symptomatic block. C) Document the rhythm
as Sinus Dysrhythmia, a normal physiological variant. D) Prepare for synchronous
cardioversion.
● The Answer: C (Document the rhythm as Sinus Dysrhythmia, a normal physiological
variant.)
● Distractor Analysis:
○ A is incorrect: Pacing is for hemodynamically unstable bradycardia or high-degree
blocks.
○ B is incorrect: Atropine is not indicated; this is a vagally-mediated respiratory
response.
○ D is incorrect: Cardioversion is for unstable tachycardias.
