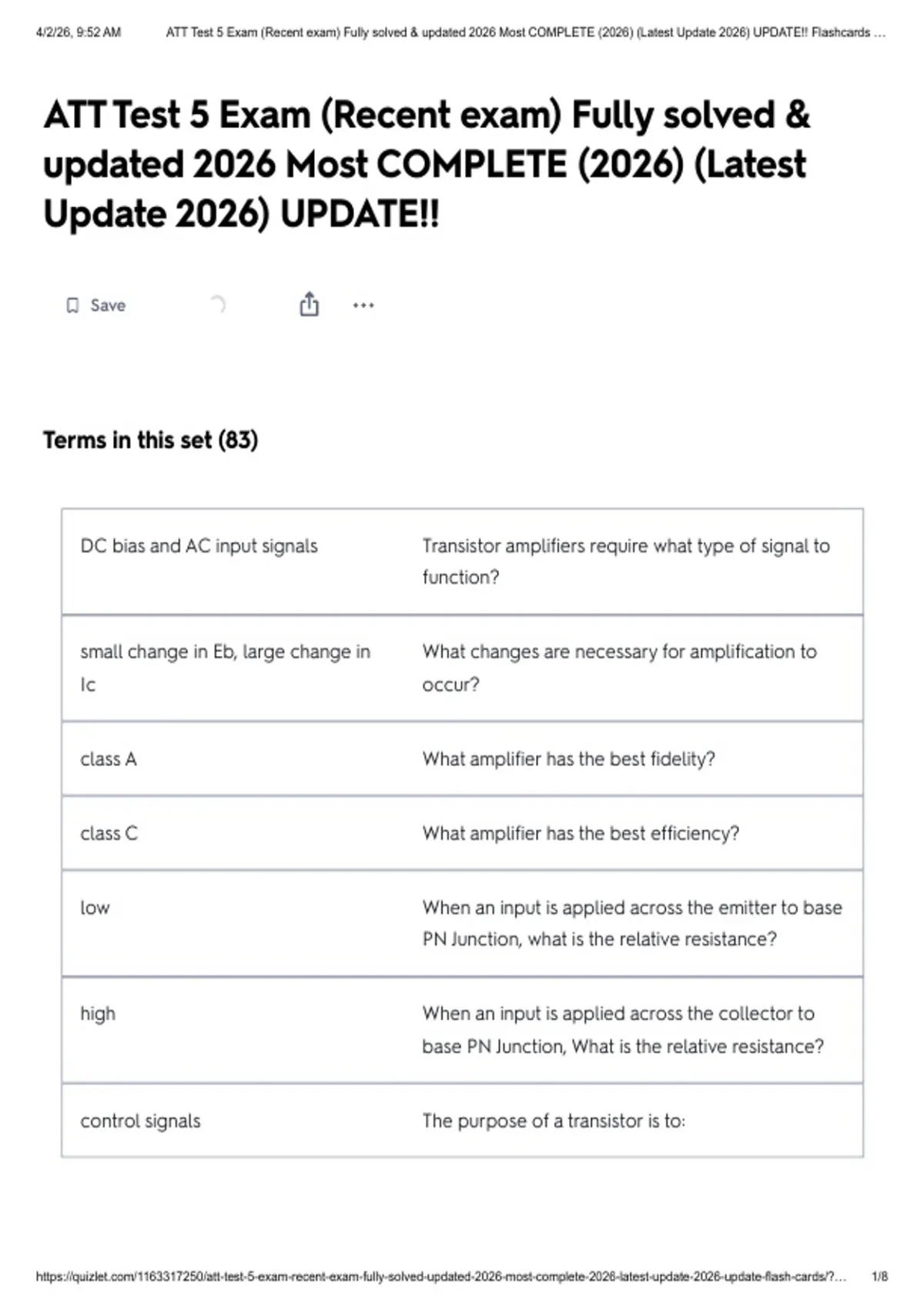

ATT Test 5 Exam (Recent exam) Fully solved &
updated 2026 Most COMPLETE (2026) (Latest
Update 2026) UPDATE!!
Save
Terms in this set (83)
DC bias and AC input signals Transistor amplifiers require what type of signal to
function?
small change in Eb, large change in What changes are necessary for amplification to
Ic occur?
class A What amplifier has the best fidelity?
class C What amplifier has the best efficiency?
low When an input is applied across the emitter to base
PN Junction, what is the relative resistance?
high When an input is applied across the collector to
base PN Junction, What is the relative resistance?
control signals The purpose of a transistor is to:
https://quizlet.com/1163317250/att-test-5-exam-recent-exam-fully-solved-updated-2026-most-complete-2026-latest-update-2026-update-flash-cards/?… 1/8
, 4/2/26, 9:52 AM ATT Test 5 Exam (Recent exam) Fully solved & updated 2026 Most COMPLETE (2026) (Latest Update 2026) UPDATE!! Flashcards …
common base What type of amplifier configuration has the input
applied to the emitter and the output taken from
the collector?
resistance measurements To determine the faulty component in a diode
limiter or clamper; use ______________
high What is the relative resistance of a reverse biased
collector to base PN junction?
common base Which amplifier configuration has low input
resistance and high output resistance?
common collector What type of amplifier configuration has the input
applied to the base and the output taken from the
emitter?
5 How many electrodes does a pentode have?
waveform measurements To determine if a diode limiter or clamper circuit is
operating normally, you use _______
When does limiting action occurs in When the diode is forward biased.
a parallel limiter?
Forward bias The capacitor in a clamper circuit has a fast charge
path when diode is _____
Resistance measurement To determine faulty component in a diode limiter or
clamper circuit, you use ____.
Collector current (Ic) stops What happens in a transistor when the saturation
increasing point is reached?
