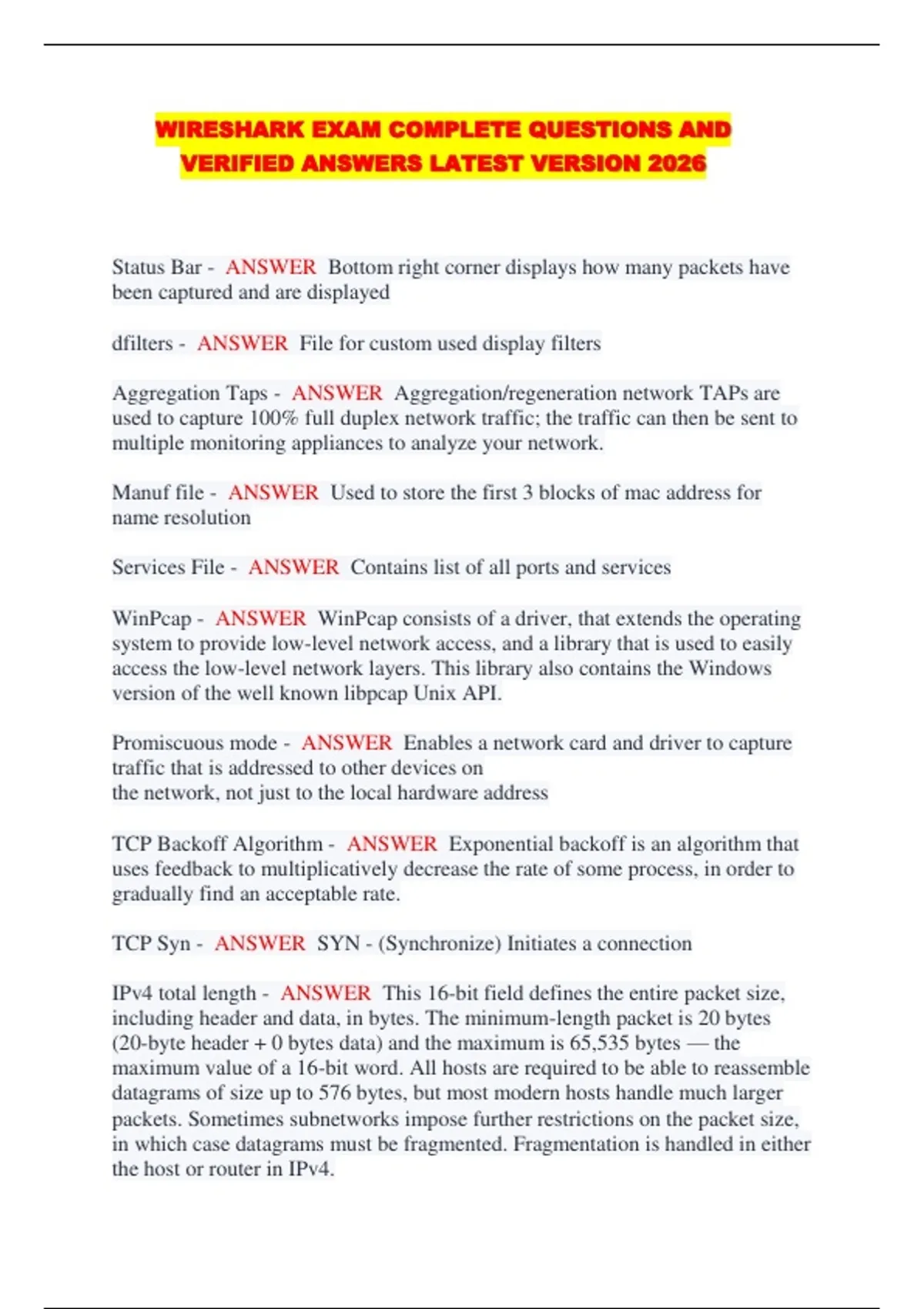

WIRESHARK EXAM COMPLETE QUESTIONS AND
VERIFIED ANSWERS LATEST VERSION 2026
Status Bar - ANSWER Bottom right corner displays how many packets have
been captured and are displayed
dfilters - ANSWER File for custom used display filters
Aggregation Taps - ANSWER Aggregation/regeneration network TAPs are
used to capture 100% full duplex network traffic; the traffic can then be sent to
multiple monitoring appliances to analyze your network.
Manuf file - ANSWER Used to store the first 3 blocks of mac address for
name resolution
Services File - ANSWER Contains list of all ports and services
WinPcap - ANSWER WinPcap consists of a driver, that extends the operating
system to provide low-level network access, and a library that is used to easily
access the low-level network layers. This library also contains the Windows
version of the well known libpcap Unix API.
Promiscuous mode - ANSWER Enables a network card and driver to capture
traffic that is addressed to other devices on
the network, not just to the local hardware address
TCP Backoff Algorithm - ANSWER Exponential backoff is an algorithm that
uses feedback to multiplicatively decrease the rate of some process, in order to
gradually find an acceptable rate.
TCP Syn - ANSWER SYN - (Synchronize) Initiates a connection
IPv4 total length - ANSWER This 16-bit field defines the entire packet size,
including header and data, in bytes. The minimum-length packet is 20 bytes
(20-byte header + 0 bytes data) and the maximum is 65,535 bytes — the
maximum value of a 16-bit word. All hosts are required to be able to reassemble
datagrams of size up to 576 bytes, but most modern hosts handle much larger
packets. Sometimes subnetworks impose further restrictions on the packet size,
in which case datagrams must be fragmented. Fragmentation is handled in either
the host or router in IPv4.
, IPv4 Data Link Padding - ANSWER
Proxy ARP - ANSWER Proxy ARP is a technique by which a device on a
given network ANSWER s the ARP queries for a network address that is not
on that network. The ARP Proxy is aware of the location of the traffic's
destination, and offers its own MAC address as (ostensibly final) destination.
TCP Retransmission Timeout - ANSWER Retransmissions are the result of
packet loss and are triggered when the sender's TCP retransmission timeout
(RTO) timer expires or a receiver sends Duplicate Acknowledgments to request
a missing segment
Monitor Mode - ANSWER In order to capture all traffic that the adapter can
receive, the adapter must be put into "monitor mode", sometimes called "rfmon
mode". In this mode, the driver doesn't make the adapter a member of any
service set.
TCP Stream Index - ANSWER the Stream Index value in TCP
conversations begins at 0 and counts up by 1 for each TCP conversation seen in
the tra
Routing Overview - ANSWER Pg. 32
Initial Sequence Number - ANSWER The SYN packets synchronize the
sequence numbers to ensure both sides know each other's starting sequence
numbers (the Initial Sequence Number, or ISN). This is how they will keep
track of the sequence of data exchanged between them.
tcp.analysis.flags - ANSWER Packets have been flagged with TCP issues or
notifications (will not work if Analyze TCP Sequence Numbers is disabled in
the TCP preferences)
Total Length Field - ANSWER This field defines the length of the IP header
and any valid data (this does not include any data link padding). In the example
shown in Figure 203, the total length field value is 1500 bytes. The first 20
bytes of that is the IP header—this indicates that the remaining packet length
(not including any data link padding) is 1480 bytes.
Unusual IP addresses - ANSWER The IP source address cannot be the
loopback address (127.0.0.0/8), a multicast address or a broadcast address.
VERIFIED ANSWERS LATEST VERSION 2026
Status Bar - ANSWER Bottom right corner displays how many packets have
been captured and are displayed
dfilters - ANSWER File for custom used display filters
Aggregation Taps - ANSWER Aggregation/regeneration network TAPs are
used to capture 100% full duplex network traffic; the traffic can then be sent to
multiple monitoring appliances to analyze your network.
Manuf file - ANSWER Used to store the first 3 blocks of mac address for
name resolution
Services File - ANSWER Contains list of all ports and services
WinPcap - ANSWER WinPcap consists of a driver, that extends the operating
system to provide low-level network access, and a library that is used to easily
access the low-level network layers. This library also contains the Windows
version of the well known libpcap Unix API.
Promiscuous mode - ANSWER Enables a network card and driver to capture
traffic that is addressed to other devices on
the network, not just to the local hardware address
TCP Backoff Algorithm - ANSWER Exponential backoff is an algorithm that
uses feedback to multiplicatively decrease the rate of some process, in order to
gradually find an acceptable rate.
TCP Syn - ANSWER SYN - (Synchronize) Initiates a connection
IPv4 total length - ANSWER This 16-bit field defines the entire packet size,
including header and data, in bytes. The minimum-length packet is 20 bytes
(20-byte header + 0 bytes data) and the maximum is 65,535 bytes — the
maximum value of a 16-bit word. All hosts are required to be able to reassemble
datagrams of size up to 576 bytes, but most modern hosts handle much larger
packets. Sometimes subnetworks impose further restrictions on the packet size,
in which case datagrams must be fragmented. Fragmentation is handled in either
the host or router in IPv4.
, IPv4 Data Link Padding - ANSWER
Proxy ARP - ANSWER Proxy ARP is a technique by which a device on a
given network ANSWER s the ARP queries for a network address that is not
on that network. The ARP Proxy is aware of the location of the traffic's
destination, and offers its own MAC address as (ostensibly final) destination.
TCP Retransmission Timeout - ANSWER Retransmissions are the result of
packet loss and are triggered when the sender's TCP retransmission timeout
(RTO) timer expires or a receiver sends Duplicate Acknowledgments to request
a missing segment
Monitor Mode - ANSWER In order to capture all traffic that the adapter can
receive, the adapter must be put into "monitor mode", sometimes called "rfmon
mode". In this mode, the driver doesn't make the adapter a member of any
service set.
TCP Stream Index - ANSWER the Stream Index value in TCP
conversations begins at 0 and counts up by 1 for each TCP conversation seen in
the tra
Routing Overview - ANSWER Pg. 32
Initial Sequence Number - ANSWER The SYN packets synchronize the
sequence numbers to ensure both sides know each other's starting sequence
numbers (the Initial Sequence Number, or ISN). This is how they will keep
track of the sequence of data exchanged between them.
tcp.analysis.flags - ANSWER Packets have been flagged with TCP issues or
notifications (will not work if Analyze TCP Sequence Numbers is disabled in
the TCP preferences)
Total Length Field - ANSWER This field defines the length of the IP header
and any valid data (this does not include any data link padding). In the example
shown in Figure 203, the total length field value is 1500 bytes. The first 20
bytes of that is the IP header—this indicates that the remaining packet length
(not including any data link padding) is 1480 bytes.
Unusual IP addresses - ANSWER The IP source address cannot be the
loopback address (127.0.0.0/8), a multicast address or a broadcast address.
