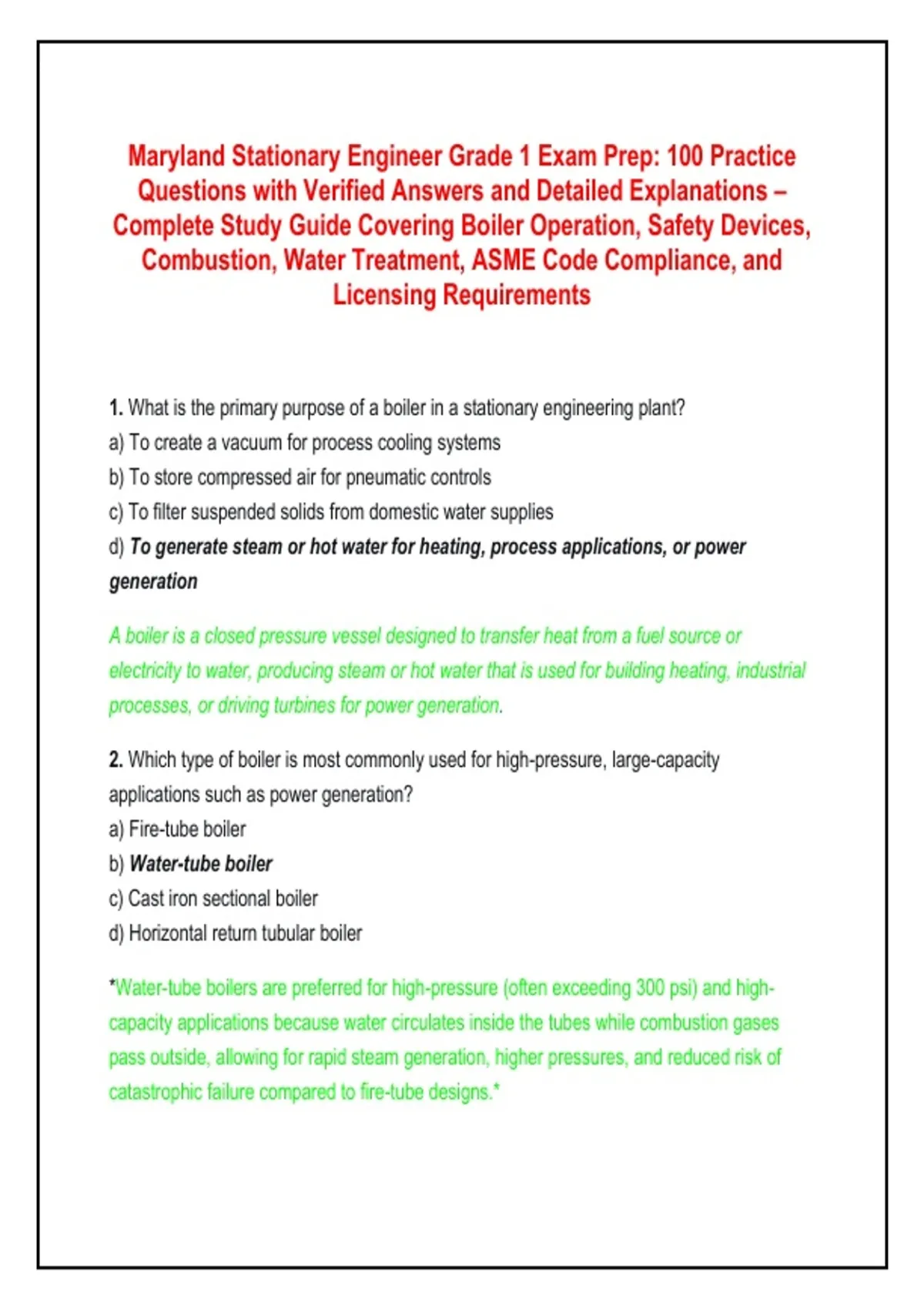

Maryland Stationary Engineer Grade 1 Exam Prep: 100 Practice
Questions with Verified Answers and Detailed Explanations –
Complete Study Guide Covering Boiler Operation, Safety Devices,
Combustion, Water Treatment, ASME Code Compliance, and
Licensing Requirements
1. What is the primary purpose of a boiler in a stationary engineering plant?
a) To create a vacuum for process cooling systems
b) To store compressed air for pneumatic controls
c) To filter suspended solids from domestic water supplies
d) To generate steam or hot water for heating, process applications, or power
generation
A boiler is a closed pressure vessel designed to transfer heat from a fuel source or
electricity to water, producing steam or hot water that is used for building heating, industrial
processes, or driving turbines for power generation.
2. Which type of boiler is most commonly used for high-pressure, large-capacity
applications such as power generation?
a) Fire-tube boiler
b) Water-tube boiler
c) Cast iron sectional boiler
d) Horizontal return tubular boiler
*Water-tube boilers are preferred for high-pressure (often exceeding 300 psi) and high-
capacity applications because water circulates inside the tubes while combustion gases
pass outside, allowing for rapid steam generation, higher pressures, and reduced risk of
catastrophic failure compared to fire-tube designs.*
,3. In a fire-tube boiler, what is the path of the combustion gases?
a) Outside the tubes with water flowing inside the tubes
b) Through the tubes with water surrounding the tubes
c) Through the steam drum only, bypassing the tubes
d) Through a separate economizer before entering the furnace
Fire-tube boilers derive their name from the fact that hot combustion gases travel through
the tubes while the water to be heated surrounds them, allowing heat transfer through the
tube walls to generate steam or hot water.
4. What is the primary function of refractory material installed in a boiler?
a) To increase thermal conductivity between tubes
b) To insulate and protect the boiler structure from extreme high temperatures
c) To chemically treat feedwater to prevent scale
d) To filter particulate matter from flue gases
Refractory materials line the combustion chamber and other high-temperature areas to
contain heat within the furnace, protect the steel pressure vessel from thermal damage, and
improve overall efficiency by minimizing heat loss to the surroundings.
5. What three elements are required to achieve complete combustion of fuel in a boiler?
a) Fuel, oxygen, and nitrogen
b) Fuel, water, and carbon dioxide
c) Fuel, air (oxygen), and sufficient ignition temperature
d) Fuel, excess air, and catalytic converters
Complete combustion requires the proper mixture of fuel and oxygen (from air), sufficient
temperature to maintain the combustion reaction, and adequate time for the reaction to go
to completion, producing carbon dioxide and water vapor while minimizing unburned fuel
and carbon monoxide.
6. What is the primary function of a burner management system (BMS) on a boiler?
a) To regulate feedwater flow based on steam demand
,b) To control blowdown frequency to maintain water chemistry
c) To safely sequence the startup, operation, and shutdown of burners through
interlocked safety controls
d) To monitor flue gas temperature for efficiency calculations
A burner management system ensures safe burner operation by verifying purge cycles,
monitoring flame presence, checking safety interlocks, and automatically shutting down the
fuel supply if unsafe conditions are detected during startup, operation, or shutdown.
7. How does excess air affect boiler combustion efficiency?
a) Excess air always increases efficiency by ensuring complete combustion
b) Excess air is necessary for complete combustion but excessive amounts reduce
efficiency by carrying heat up the stack
c) Excess air has no measurable effect on boiler efficiency
d) Excess air decreases steam pressure without affecting fuel consumption
While some excess air is required to ensure complete combustion and prevent carbon
monoxide formation, too much excess air wastes energy by heating air that is not needed
for combustion and carrying sensible heat out through the flue gas stack, lowering overall
efficiency.
8. What is the purpose of a low-water fuel cutoff on a steam boiler?
a) To maintain proper water temperature during operation
b) To shut off the fuel supply if water level drops below a safe operating level
c) To automatically add chemical treatment to feedwater
d) To regulate steam pressure by modulating the burner
A low-water fuel cutoff is a critical safety device that interrupts the fuel supply to the burner
when the water level falls below the lowest safe operating point, preventing overheating and
catastrophic failure of the boiler pressure vessel.
9. What is the function of a safety valve on a steam boiler?
a) To automatically add feedwater when steam pressure drops
, b) To regulate burner firing rate based on steam demand
c) To automatically relieve excess pressure to prevent over-pressurization of the
boiler
d) To drain condensate from steam distribution lines
Safety valves are the primary overpressure protection device on a boiler, designed to
automatically open at a set pressure and release steam to prevent the boiler pressure from
exceeding the maximum allowable working pressure (MAWP).
10. What is the purpose of boiler blowdown?
a) To add fresh water to the boiler during operation
b) To remove dissolved solids and suspended solids from the boiler water to prevent
scale and carryover
c) To reduce steam pressure during low demand periods
d) To test safety valve operation under pressure
Blowdown removes concentrated impurities from the boiler water, controlling total dissolved
solids (TDS) and suspended solids that would otherwise form scale on heat transfer
surfaces or cause carryover of water into steam lines.
11. What is the function of a steam trap in a condensate return system?
a) To allow steam to pass while blocking condensate
b) To allow condensate to pass while blocking steam
c) To regulate steam pressure in distribution lines
d) To filter particulates from steam before reaching equipment
Steam traps automatically discharge condensate, air, and non-condensable gases from
steam lines while preventing the escape of live steam, maintaining system efficiency and
preventing water hammer.
12. What is the primary hazard of water hammer in steam piping?
a) Reduced steam temperature
b) Increased fuel consumption
Questions with Verified Answers and Detailed Explanations –
Complete Study Guide Covering Boiler Operation, Safety Devices,
Combustion, Water Treatment, ASME Code Compliance, and
Licensing Requirements
1. What is the primary purpose of a boiler in a stationary engineering plant?
a) To create a vacuum for process cooling systems
b) To store compressed air for pneumatic controls
c) To filter suspended solids from domestic water supplies
d) To generate steam or hot water for heating, process applications, or power
generation
A boiler is a closed pressure vessel designed to transfer heat from a fuel source or
electricity to water, producing steam or hot water that is used for building heating, industrial
processes, or driving turbines for power generation.
2. Which type of boiler is most commonly used for high-pressure, large-capacity
applications such as power generation?
a) Fire-tube boiler
b) Water-tube boiler
c) Cast iron sectional boiler
d) Horizontal return tubular boiler
*Water-tube boilers are preferred for high-pressure (often exceeding 300 psi) and high-
capacity applications because water circulates inside the tubes while combustion gases
pass outside, allowing for rapid steam generation, higher pressures, and reduced risk of
catastrophic failure compared to fire-tube designs.*
,3. In a fire-tube boiler, what is the path of the combustion gases?
a) Outside the tubes with water flowing inside the tubes
b) Through the tubes with water surrounding the tubes
c) Through the steam drum only, bypassing the tubes
d) Through a separate economizer before entering the furnace
Fire-tube boilers derive their name from the fact that hot combustion gases travel through
the tubes while the water to be heated surrounds them, allowing heat transfer through the
tube walls to generate steam or hot water.
4. What is the primary function of refractory material installed in a boiler?
a) To increase thermal conductivity between tubes
b) To insulate and protect the boiler structure from extreme high temperatures
c) To chemically treat feedwater to prevent scale
d) To filter particulate matter from flue gases
Refractory materials line the combustion chamber and other high-temperature areas to
contain heat within the furnace, protect the steel pressure vessel from thermal damage, and
improve overall efficiency by minimizing heat loss to the surroundings.
5. What three elements are required to achieve complete combustion of fuel in a boiler?
a) Fuel, oxygen, and nitrogen
b) Fuel, water, and carbon dioxide
c) Fuel, air (oxygen), and sufficient ignition temperature
d) Fuel, excess air, and catalytic converters
Complete combustion requires the proper mixture of fuel and oxygen (from air), sufficient
temperature to maintain the combustion reaction, and adequate time for the reaction to go
to completion, producing carbon dioxide and water vapor while minimizing unburned fuel
and carbon monoxide.
6. What is the primary function of a burner management system (BMS) on a boiler?
a) To regulate feedwater flow based on steam demand
,b) To control blowdown frequency to maintain water chemistry
c) To safely sequence the startup, operation, and shutdown of burners through
interlocked safety controls
d) To monitor flue gas temperature for efficiency calculations
A burner management system ensures safe burner operation by verifying purge cycles,
monitoring flame presence, checking safety interlocks, and automatically shutting down the
fuel supply if unsafe conditions are detected during startup, operation, or shutdown.
7. How does excess air affect boiler combustion efficiency?
a) Excess air always increases efficiency by ensuring complete combustion
b) Excess air is necessary for complete combustion but excessive amounts reduce
efficiency by carrying heat up the stack
c) Excess air has no measurable effect on boiler efficiency
d) Excess air decreases steam pressure without affecting fuel consumption
While some excess air is required to ensure complete combustion and prevent carbon
monoxide formation, too much excess air wastes energy by heating air that is not needed
for combustion and carrying sensible heat out through the flue gas stack, lowering overall
efficiency.
8. What is the purpose of a low-water fuel cutoff on a steam boiler?
a) To maintain proper water temperature during operation
b) To shut off the fuel supply if water level drops below a safe operating level
c) To automatically add chemical treatment to feedwater
d) To regulate steam pressure by modulating the burner
A low-water fuel cutoff is a critical safety device that interrupts the fuel supply to the burner
when the water level falls below the lowest safe operating point, preventing overheating and
catastrophic failure of the boiler pressure vessel.
9. What is the function of a safety valve on a steam boiler?
a) To automatically add feedwater when steam pressure drops
, b) To regulate burner firing rate based on steam demand
c) To automatically relieve excess pressure to prevent over-pressurization of the
boiler
d) To drain condensate from steam distribution lines
Safety valves are the primary overpressure protection device on a boiler, designed to
automatically open at a set pressure and release steam to prevent the boiler pressure from
exceeding the maximum allowable working pressure (MAWP).
10. What is the purpose of boiler blowdown?
a) To add fresh water to the boiler during operation
b) To remove dissolved solids and suspended solids from the boiler water to prevent
scale and carryover
c) To reduce steam pressure during low demand periods
d) To test safety valve operation under pressure
Blowdown removes concentrated impurities from the boiler water, controlling total dissolved
solids (TDS) and suspended solids that would otherwise form scale on heat transfer
surfaces or cause carryover of water into steam lines.
11. What is the function of a steam trap in a condensate return system?
a) To allow steam to pass while blocking condensate
b) To allow condensate to pass while blocking steam
c) To regulate steam pressure in distribution lines
d) To filter particulates from steam before reaching equipment
Steam traps automatically discharge condensate, air, and non-condensable gases from
steam lines while preventing the escape of live steam, maintaining system efficiency and
preventing water hammer.
12. What is the primary hazard of water hammer in steam piping?
a) Reduced steam temperature
b) Increased fuel consumption
