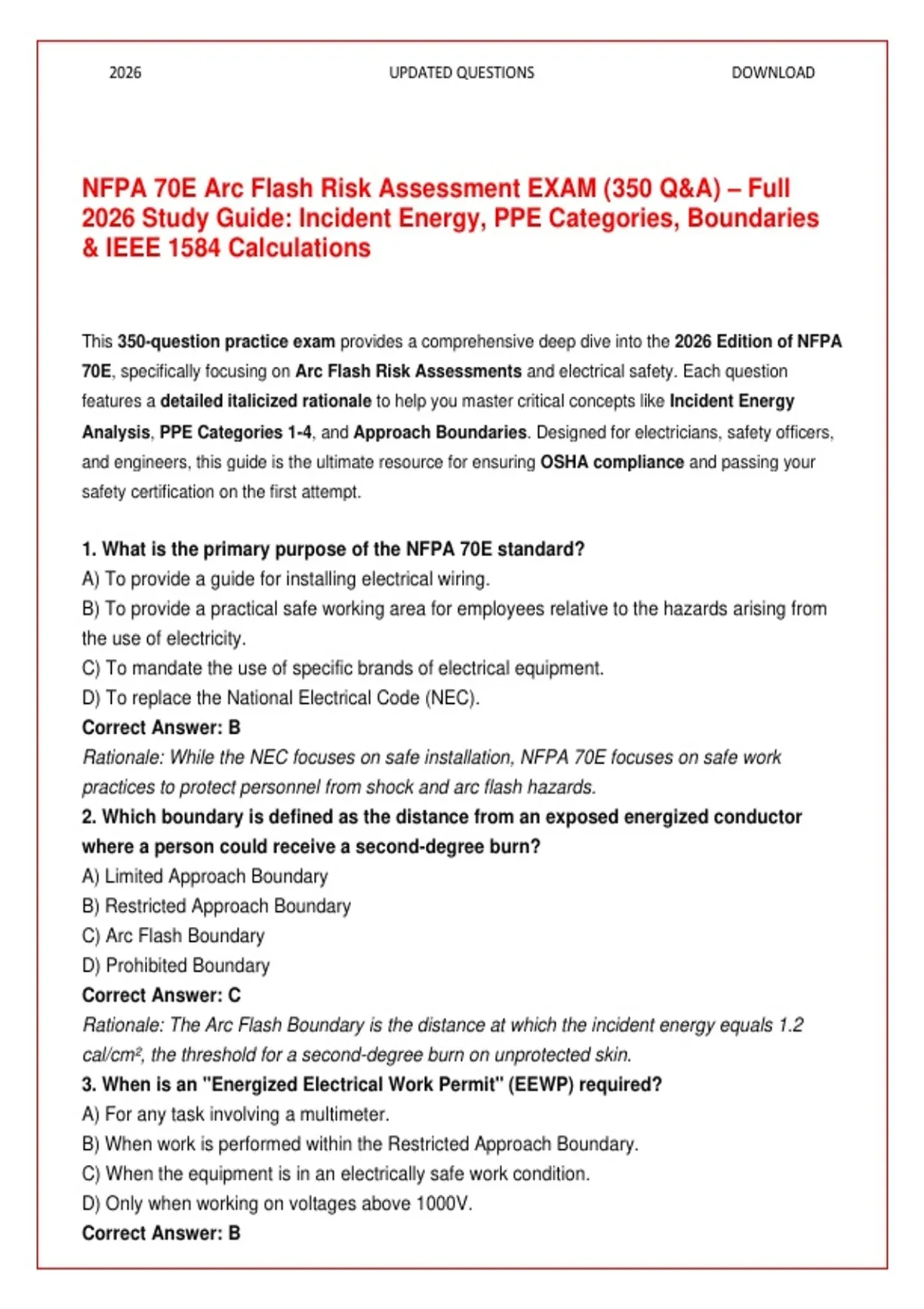

NFPA 70E Arc Flash Risk Assessment EXAM (350 Q&A) – Full
2026 Study Guide: Incident Energy, PPE Categories, Boundaries
& IEEE 1584 Calculations
This 350-question practice exam provides a comprehensive deep dive into the 2026 Edition of NFPA
70E, specifically focusing on Arc Flash Risk Assessments and electrical safety. Each question
features a detailed italicized rationale to help you master critical concepts like Incident Energy
Analysis, PPE Categories 1-4, and Approach Boundaries. Designed for electricians, safety officers,
and engineers, this guide is the ultimate resource for ensuring OSHA compliance and passing your
safety certification on the first attempt.
1. What is the primary purpose of the NFPA 70E standard?
A) To provide a guide for installing electrical wiring.
B) To provide a practical safe working area for employees relative to the hazards arising from
the use of electricity.
C) To mandate the use of specific brands of electrical equipment.
D) To replace the National Electrical Code (NEC).
Correct Answer: B
Rationale: While the NEC focuses on safe installation, NFPA 70E focuses on safe work
practices to protect personnel from shock and arc flash hazards.
2. Which boundary is defined as the distance from an exposed energized conductor
where a person could receive a second-degree burn?
A) Limited Approach Boundary
B) Restricted Approach Boundary
C) Arc Flash Boundary
D) Prohibited Boundary
Correct Answer: C
Rationale: The Arc Flash Boundary is the distance at which the incident energy equals 1.2
cal/cm², the threshold for a second-degree burn on unprotected skin.
3. When is an "Energized Electrical Work Permit" (EEWP) required?
A) For any task involving a multimeter.
B) When work is performed within the Restricted Approach Boundary.
C) When the equipment is in an electrically safe work condition.
D) Only when working on voltages above 1000V.
Correct Answer: B
, 2026 UPDATED QUESTIONS DOWNLOAD
Rationale: Per NFPA 70E 130.2(B), an EEWP is required when working within the Restricted
Approach Boundary or when the task poses an increased risk of arc flash.
4. According to the Hierarchy of Risk Controls, which is the LEAST effective method?
A) Substitution
B) Administrative Controls
C) Personal Protective Equipment (PPE)
D) Engineering Controls
Correct Answer: C
Rationale: PPE is the final line of defense; it does not remove the hazard and is subject to
human error or equipment failure.
5. What is the minimum voltage at which an Arc Flash Risk Assessment must be
performed?
A) 30 Volts
B) 50 Volts
C) 120 Volts
D) 480 Volts
Correct Answer: B
Rationale: NFPA 70E requires assessments and protection for systems operating at 50 volts or
more.
6. Which method of selecting PPE is allowed by NFPA 70E?
A) Incident Energy Analysis Method
B) Arc Flash PPE Category Method
C) Both A and B
D) Neither A nor B
Correct Answer: C
Rationale: Personnel must use one of these two methods, but they are not permitted to use
both methods on the same piece of equipment.
7. If the Incident Energy Analysis Method is used, what information must be on the
equipment label?
A) The PPE Category (1-4).
B) At least one of: Incident energy at the working distance, minimum arc rating of clothing, or
site-specific level of PPE.
C) The name of the electrician who installed it.
D) The price of the PPE required.
Correct Answer: B
Rationale: Labels for the Incident Energy Method must provide the specific energy level so
workers can choose appropriately rated PPE.
8. What is the "Working Distance" typically used for arc flash calculations in low-
voltage (600V and below) switchgear?
, 2026 UPDATED QUESTIONS DOWNLOAD
A) 12 inches
B) 18 inches
C) 24 inches
D) 36 inches
Correct Answer: B
Rationale: 18 inches (455 mm) is the industry standard working distance for most low-voltage
power distribution equipment assessments.
9. What does "ATPV" stand for in relation to arc-rated clothing?
A) Arc Thermal Performance Value
B) Automatic Temperature Pressure Valve
C) Arc Tension Protection Variable
D) Actual Thermal Power Verification
Correct Answer: A
Rationale: ATPV is the incident energy on a material that results in a 50% probability that heat
transfer will be sufficient to cause a second-degree burn.
10. PPE Category 2 requires a minimum arc rating of:
A) 4 cal/cm²
B) 8 cal/cm²
C) 25 cal/cm²
D) 40 cal/cm²
Correct Answer: B
Rationale: Category 1 is 4 cal, Category 2 is 8 cal, Category 3 is 25 cal, and Category 4 is 40
cal.
11. Which of the following is a "Qualified Person" according to NFPA 70E?
A) Anyone with an electrical license.
B) A person who has demonstrated skills and knowledge related to the construction and
operation of electrical equipment and has received safety training.
C) A supervisor with 20 years of experience.
D) Someone who has read the NFPA 70E handbook.
Correct Answer: B
Rationale: Being qualified is task-specific and requires both technical knowledge and safety
training to recognize and avoid hazards.
12. What is the first step in achieving an "Electrically Safe Work Condition"?
A) Putting on a face shield.
B) Determining all possible sources of electrical supply.
C) Verifying the absence of voltage.
D) Applying lockout/tagout devices.
Correct Answer: B
, 2026 UPDATED QUESTIONS DOWNLOAD
Rationale: You cannot safely de-energize until you identify every source of power to the
equipment.
13. A "Restricted Approach Boundary" is a distance from an exposed energized
conductor where:
A) Unqualified persons are allowed if wearing a vest.
B) There is an increased risk of shock due to electrical arc-over combined with inadvertent
movement.
C) Only heavy-duty PPE is required.
D) No tools are allowed.
Correct Answer: B
Rationale: This boundary is closer than the Limited Approach Boundary and requires specific
shock-protection techniques and equipment.
14. Arc Flash PPE Category 4 requires which of the following?
A) Safety glasses only.
/B) An arc flash suit hood and arc-rated suit.
C) A leather apron.
D) Short-sleeved cotton shirt.
Correct Answer: B
Rationale: Category 4 (40 cal/cm²) is high-energy and requires a full "moon suit" or arc flash
suit for protection.
15. What is the "Limited Approach Boundary" for a fixed circuit part energized at 480V?
A) 1 foot
B) 3 feet 6 inches
C) 10 feet
D) 42 inches
Correct Answer: B
Rationale: Per Table 130.4(E)(a), the Limited Approach Boundary for 480V is 3 feet 6 inches
(1.0 meter).
16. Which of the following materials is PROHIBITED for use as underlayers beneath arc-
rated PPE?
A) 100% Cotton
B) Wool
C) Polyester
D) Silk
Correct Answer: C
Rationale: Synthetic materials like polyester, nylon, and spandex can melt to the skin during an
arc flash, causing catastrophic injuries.
17. When must a "Job Safety Planning" session be completed?
A) Once a year.
