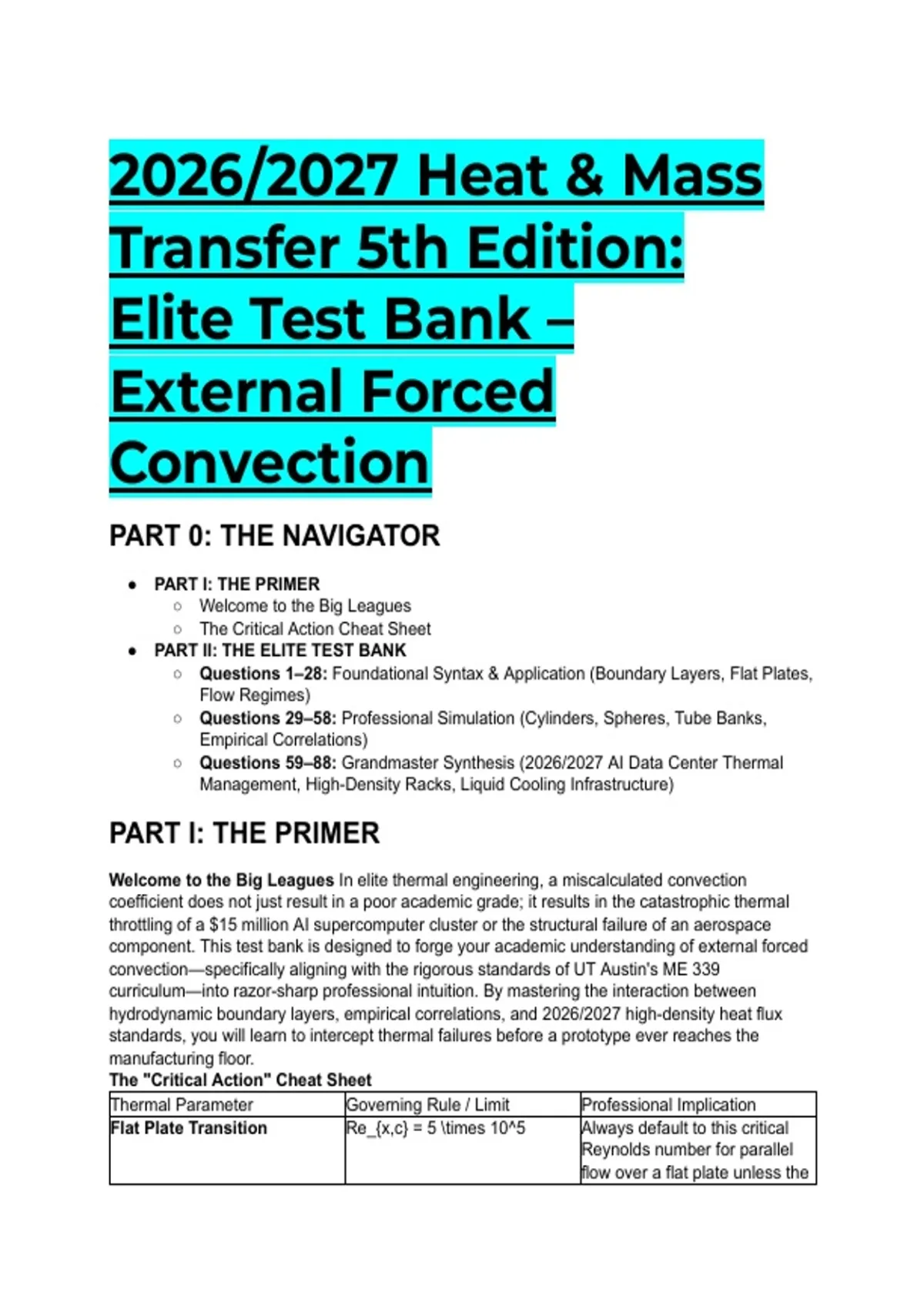

2026/2027 Heat & Mass
Transfer 5th Edition:
Elite Test Bank –
External Forced
Convection
PART 0: THE NAVIGATOR
● PART I: THE PRIMER
○ Welcome to the Big Leagues
○ The Critical Action Cheat Sheet
● PART II: THE ELITE TEST BANK
○ Questions 1–28: Foundational Syntax & Application (Boundary Layers, Flat Plates,
Flow Regimes)
○ Questions 29–58: Professional Simulation (Cylinders, Spheres, Tube Banks,
Empirical Correlations)
○ Questions 59–88: Grandmaster Synthesis (2026/2027 AI Data Center Thermal
Management, High-Density Racks, Liquid Cooling Infrastructure)
PART I: THE PRIMER
Welcome to the Big Leagues In elite thermal engineering, a miscalculated convection
coefficient does not just result in a poor academic grade; it results in the catastrophic thermal
throttling of a $15 million AI supercomputer cluster or the structural failure of an aerospace
component. This test bank is designed to forge your academic understanding of external forced
convection—specifically aligning with the rigorous standards of UT Austin's ME 339
curriculum—into razor-sharp professional intuition. By mastering the interaction between
hydrodynamic boundary layers, empirical correlations, and 2026/2027 high-density heat flux
standards, you will learn to intercept thermal failures before a prototype ever reaches the
manufacturing floor.
The "Critical Action" Cheat Sheet
Thermal Parameter Governing Rule / Limit Professional Implication
Flat Plate Transition Re_{x,c} = 5 \times 10^5 Always default to this critical
Reynolds number for parallel
flow over a flat plate unless the
,Thermal Parameter Governing Rule / Limit Professional Implication
flow is artificially tripped earlier.
Prandtl Number (Pr) Pr = \nu / \alpha Dictates boundary layer ratios.
If Pr \ll 1 (liquid metals), the
thermal layer dominates. If Pr
\gg 1 (oils), the hydrodynamic
layer dominates.
Churchill-Bernstein Re_D \cdot Pr \ge 0.2 The ultimate diagnostic
equation for cylinders in
cross-flow, valid across the
entire Re_D spectrum, provided
this product limit is respected.
Tube Bank Velocity V_{max} Reynolds numbers
(Re_{D,max}) for
Zukauskas/Grimison
correlations are strictly based
on the maximum fluid velocity
at the minimum cross-sectional
area.
2027 AI Thermal Density > 120 kW to 600 kW Traditional air cooling is
physically obsolete.
Direct-to-Chip (D2C) liquid
cooling or two-phase immersion
is mathematically mandatory.
PART II: THE ELITE TEST BANK
Questions 1–28: Foundational Syntax & Application
Q1: An engineer is evaluating the forced convection of liquid sodium (Pr \approx 0.005) and
engine oil (Pr \approx 10,000) over identical isothermal flat plates at identical free-stream
velocities. Which statement accurately describes the boundary layer development? A) The
engine oil will develop a thermal boundary layer significantly thicker than its hydrodynamic
boundary layer. B) The liquid sodium will develop a hydrodynamic boundary layer significantly
thicker than its thermal boundary layer. C) The liquid sodium will exhibit a thermal boundary
layer that extends far beyond its hydrodynamic boundary layer. D) Both fluids will exhibit
identical hydrodynamic and thermal boundary layer thicknesses because the free-stream
velocities are equal.
● The Answer: C (The liquid sodium will exhibit a thermal boundary layer that extends far
beyond its hydrodynamic boundary layer.)
● Distractor Analysis:
○ A is incorrect: High Pr fluids (oils) have a high momentum diffusivity relative to
thermal diffusivity, meaning the hydrodynamic layer is thicker.
○ B is incorrect: Low Pr fluids (liquid metals) diffuse heat much faster than
momentum.
○ D is incorrect: This violates the fundamental definition of the Prandtl number, which
governs the ratio of these two boundary layers.
The Mentor's Analysis: The Prandtl number (Pr = \nu / \alpha) dictates the physical landscape
,of your thermal problem. A Pr \ll 1[span_6](start_span)[span_6](end_span) means thermal
diffusivity (\alpha) dominates; heat travels faster than the fluid's momentum can organize into a
boundary layer. Professional Intuition: Always check the fluid's Pr before selecting a
correlation. Applying standard air/water correlations to liquid metals or heavy oils will result in
catastrophic predictive failures.
Q2: A fluid flows over a sharp-edged flat plate. At a distance x from the leading edge, the
Reynolds number (Re_x) is calculated to be 4 \times 10^5. Assuming no artificial tripping, what
is the MOST APPROPRIATE analytical approach to determine the local friction coefficient
(C_{f,x})? A) Utilize the Blasius similarity solution for laminar boundary layers. B) Apply the 1/7th
power law velocity profile for turbulent flow. C) Use a mixed boundary layer correlation to
account for the transition region. D) Calculate the pressure drag coefficient and add it to the
turbulent friction drag.
● The Answer: A (Utilize the Blasius similarity solution for laminar boundary layers.)
● Distractor Analysis:
○ B and C are incorrect: The critical Reynolds number for a flat plate is 5 \times 10^5.
At 4 \times 10^5, the flow is strictly laminar.
○ D is incorrect: For parallel flow over a flat plate, pressure drag (C_{D,pressure}) is
essentially zero; drag is purely frictional.
The Mentor's Analysis: Precision requires respecting the transition point. Until Re_x hits 5
\times 10^5, you are operating in the laminar regime governed by the Blasius solution.
Professional Intuition: Do not prematurely anticipate turbulence. If the math says laminar, use
laminar correlations, or you will over-predict the heat transfer coefficient and under-size your
cooling system.
Q3: In external forced convection over a flat plate, how does the local heat transfer coefficient
(h_x) behave in the laminar regime as the distance x from the leading edge increases? A) It
increases linearly with x. B) It remains constant regardless of x. C) It decreases proportionally to
x^{-0.5}. D) It decreases proportionally to x^{-0.2}.
● The Answer: C (It decreases proportionally to x^{-0.5}.)
● Distractor Analysis:
○ A and B are incorrect: The thermal boundary layer thickens as x increases, which
increases thermal resistance and reduces the heat transfer coefficient.
○ D is incorrect: This is the decay rate for the turbulent regime, not the laminar
regime.
The Mentor's Analysis: As the boundary layer grows, it acts as an increasingly thick blanket of
insulation. In the laminar regime, Nu_x \propto Re_x^{0.5}, which mathematically means h_x
\propto x^{-0.5}. Professional Intuition: The leading edge of any plate does the heaviest lifting
in heat transfer. If you need maximum cooling, focus your design efforts on the leading edge.
Q4: A printed circuit board (PCB) is modeled as a flat plate subjected to a uniform heat flux
(q''_s) rather than an isothermal surface temperature (T_s). How will the local Nusselt number
(Nu_x) for this plate compare to an identical plate with an isothermal surface? A) The uniform
heat flux Nu_x will be lower because the surface temperature varies. B) The uniform heat flux
Nu_x will be approximately 36% higher in the laminar regime. C) The uniform heat flux Nu_x will
be identical, as Nu_x is independent of thermal boundary conditions. D) The uniform heat flux
Nu_x will be exactly 4% lower in the turbulent regime.
● The Answer: B (The uniform heat flux Nu_x will be approximately 36% higher in the
laminar regime.)
● Distractor Analysis:
○ A and C are incorrect: The boundary condition fundamentally alters the temperature
, gradient at the wall. Uniform heat flux mathematically forces a steeper temperature
gradient near the wall, increasing Nu_x.
○ D is incorrect: In the turbulent regime, the uniform heat flux Nu_x is roughly 4%
higher, not lower.
The Mentor's Analysis: Electronic components generate a constant wattage (heat flux), they
do not sit at a constant temperature. Using an isothermal correlation for a uniform heat flux
problem introduces a massive 36% error in the laminar regime. Professional Intuition: Always
match your correlation to the physical reality of the heat source. PCBs are flux-driven, not
temperature-driven.
Q5: An engineer is evaluating the total drag force on a blunt cylindrical strut exposed to
high-velocity cross-flow. The Reynolds number (Re_D) is 10^6. What is the PRIMARY
component of the total drag force? A) Purely friction drag due to the massive surface area. B)
Pressure drag (form drag) caused by flow separation and the resulting wake. C)
Buoyancy-driven drag caused by the temperature differential. D) Induced drag caused by the
generation of lift.
● The Answer: B (Pressure drag (form drag) caused by flow separation and the resulting
wake.)
● Distractor Analysis:
○ A is incorrect: Friction drag is dominant at very low Reynolds numbers (Re_D < 10)
or on streamlined bodies (flat plates). For blunt bodies at high Re_D, pressure drag
overwhelms friction drag.
○ C is incorrect: Buoyancy applies to natural convection, not forced external drag.
○ D is incorrect: Cylinders in uniform cross-flow do not generate lift unless rotating.
The Mentor's Analysis: For blunt bodies like cylinders and spheres, the flow cannot navigate
the adverse pressure gradient on the rear half. It separates, creating a massive low-pressure
wake. The pressure differential between the front stagnation point and the rear wake dictates
the drag. Professional Intuition: If you want to reduce drag on a blunt body, don't polish it to
reduce friction; streamline the rear to delay separation and minimize the wake.
Q6: When evaluating the convective heat transfer over a flat plate where heating begins at a
distance \xi from the leading edge (an unheated starting length), what occurs to the thermal
boundary layer? A) It develops identically to the hydrodynamic boundary layer but is offset by
the distance \xi. B) It begins developing at \xi and grows within an already established
hydrodynamic boundary layer. C) It prevents the hydrodynamic boundary layer from
transitioning to turbulent flow. D) It instantly matches the thickness of the hydrodynamic
boundary layer at x = \xi.
● The Answer: B (It begins developing at \xi and grows within an already established
hydrodynamic boundary layer.)
● Distractor Analysis:
○ A and D are incorrect: The hydrodynamic layer started at x=0. When heating starts
at x=\xi, the fluid already has a velocity profile. The thermal layer must grow inside
this moving fluid, changing the standard Nu_x relationship.
○ C is incorrect: Thermal boundary conditions do not dictate hydrodynamic transition.
The Mentor's Analysis: The unheated starting length is a classic electronics cooling scenario:
the PCB leading edge has no chips, and the heat source starts centimeters back. Because the
fluid is already moving, the convection coefficient right at x=\xi is theoretically infinite and decays
differently. Professional Intuition: Unheated starting lengths act as thermal resets. Use the
specific \xi correlation to avoid severely underestimating local cooling performance.
Q7: Which dimensionless parameter represents the ratio of total convective heat transfer to
