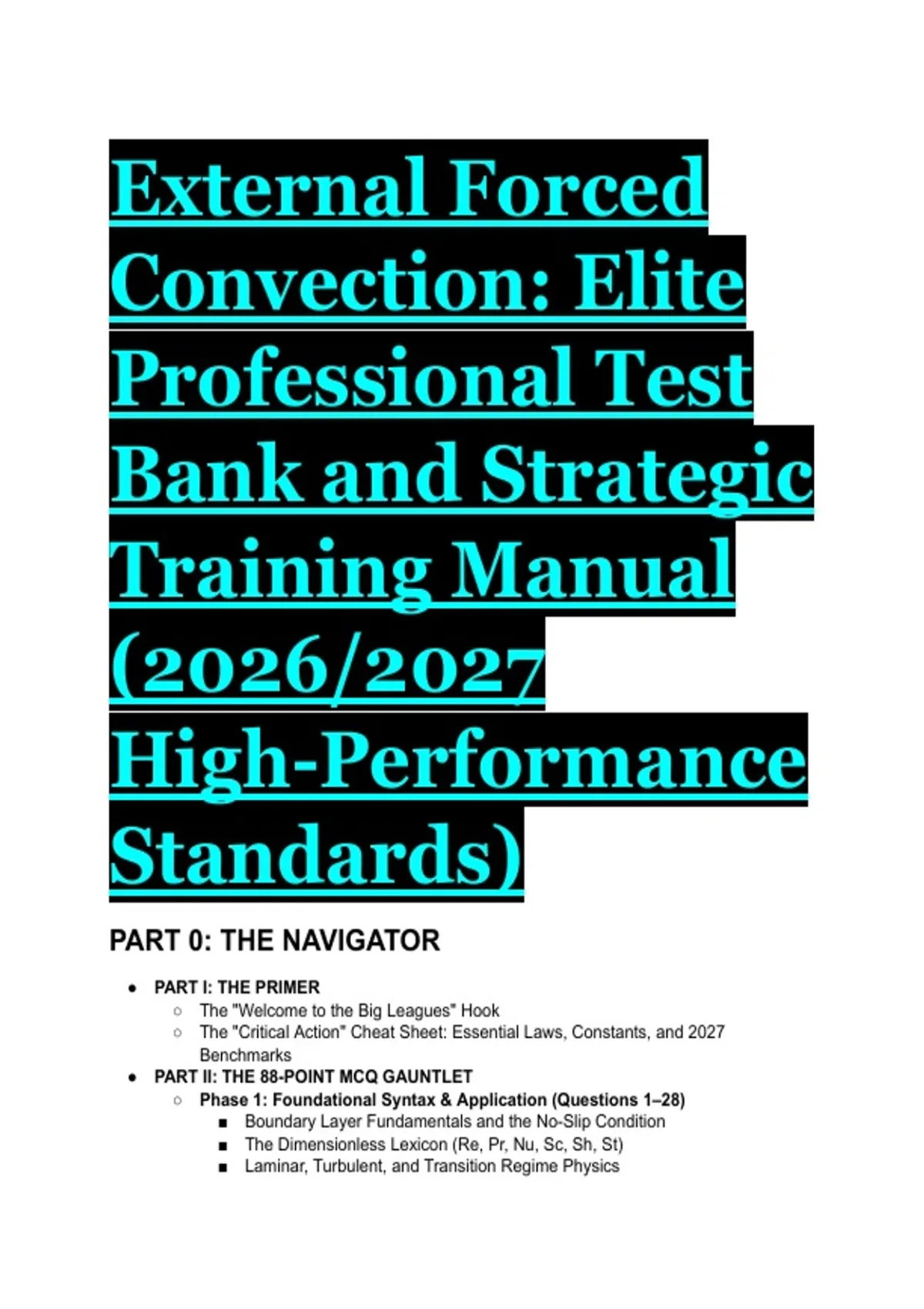

External Forced
Convection: Elite
Professional Test
Bank and Strategic
Training Manual
(2026/2027
High-Performance
Standards)
PART 0: THE NAVIGATOR
● PART I: THE PRIMER
○ The "Welcome to the Big Leagues" Hook
○ The "Critical Action" Cheat Sheet: Essential Laws, Constants, and 2027
Benchmarks
● PART II: THE 88-POINT MCQ GAUNTLET
○ Phase 1: Foundational Syntax & Application (Questions 1–28)
■ Boundary Layer Fundamentals and the No-Slip Condition
■ The Dimensionless Lexicon (Re, Pr, Nu, Sc, Sh, St)
■ Laminar, Turbulent, and Transition Regime Physics
, ■ Property Evaluation and Film Temperature Protocols
○ Phase 2: Professional Simulation (Questions 29–58)
■ Flat Plate Scenarios: Unheated Lengths and Flux Variances
■ Cylinder and Sphere Dynamics: Separation and Wake Control
■ Tube Bank Optimization: Aligned vs. Staggered Arrays
■ Environmental and Structural Heat Loss Calculations
○ Phase 3: Grandmaster Synthesis (Questions 59–88)
■ 2027 AI/GPU Thermal Management: Liquid and Hybrid Strategies
■ EV Battery Thermal Management Systems (BTMS) and Immersion
■ Simultaneous Heat and Mass Transfer: Industrial Drying and Evaporation
■ Advanced Aerospace Aerodynamic Heating and Ablation
■ Systemic Failures: Scale, Corrosion, and Thermal Throttling
PART I: THE PRIMER
The "Welcome to the Big Leagues" Hook
Mastery in external forced convection is the critical differentiator between an academic graduate
and a lead thermal architect capable of managing 2027-scale power densities. This test bank is
engineered to purge the common misconceptions—such as the over-reliance on air cooling for
1500W chips or the failure to account for adverse pressure gradients in sensor arrays—that
lead to catastrophic field failures and multi-million dollar warranty liabilities. By internalizing
these 88 scenarios, the practitioner develops the professional intuition required to navigate the
high-stakes transition from traditional air-cooled infrastructure to the advanced liquid and
immersion cooling paradigms of the AI revolution.
The "Critical Action" Cheat Sheet
● The Foundation (Newton’s Law of Cooling): q'' = h(T_s - T_\infty). In forced convection,
h is not a fluid property but a local consequence of flow field dynamics, surface geometry,
and the thermal boundary layer's resistance.
● The Hard Deck (Critical Reynolds Number): For a flat plate, the transition to turbulence
generally occurs at Re_{x,c} \approx 5 \times 10^5. Beyond this point, eddy-driven mixing
increases the Nusselt number (Nu) by nearly an order of magnitude, a shift that must be
planned for in 2026 electronics placement.
● The 2027 Thermal Benchmark: High-performance AI GPUs (Nvidia B300/Rubin) now
exceed 1400W per die, producing heat fluxes up to 860 kW/m². At these densities, air
cooling (h \approx 50 \text{ W/m}^2\cdot\text{K}) is physically incapable of preventing
junction meltdown; liquid systems (h \approx 5000+ \text{ W/m}^2\cdot\text{K}) are the
new baseline.
● The Transport Analogy (Chilton-Colburn): j_H = j_m = f/2. For dilute systems, the heat
transfer j-factor is identical to the mass transfer j-factor. This allows the derivation of the
mass transfer coefficient (h_m) from existing heat transfer data by replacing Pr with Sc
and Nu with Sh.
PART II: THE ELITE TEST BANK
,Phase 1: Foundational Syntax & Application
Q1: A fluid is in external forced convection over a non-porous flat plate. According to the
NO-SLIP CONDITION as defined in 2026/2027 continuum mechanics, what is the relative
velocity of the fluid at the exact solid-fluid interface (y = 0)? A) The velocity matches the
free-stream velocity U_\infty due to momentum conservation. B) The velocity is exactly zero
relative to the surface due to viscous forces. C) The velocity is approximately 10% of U_\infty
due to molecular slip. D) The velocity is zero in laminar flow but non-zero in turbulent flow due to
eddy impingement.
● The Answer: B (The velocity is exactly zero relative to the surface due to viscous forces.)
● Distractor Analysis:
○ A is incorrect: This describes an "inviscid" flow, which is a mathematical idealization
not present in real-world convection where viscosity \mu > 0.
○ C is incorrect: Molecular slip only occurs in extremely rarefied gases (high Knudsen
number), which is outside the scope of standard 2026 industrial fluid mechanics.
○ D is incorrect: The no-slip condition is a fundamental boundary condition that holds
for both laminar and turbulent regimes; even in turbulence, a thin viscous sublayer
remains stagnant at the wall.
The Mentor's Analysis: The no-slip condition is why all heat transfer at the wall must occur via
pure conduction. Because the fluid isn't moving at y=0, the energy must first diffuse through a
stagnant layer before it can be "swept away" by advection. As a lead practitioner, you realize
that h is essentially a measure of how thin you can make that stagnant layer.
Q2: A 2027 design team is evaluating a new dielectric coolant for an immersion-cooled AI
server. The PRANDTL NUMBER (Pr) of the fluid is reported as 150. What does this value
PRIMARILY indicate about the boundary layer physics? A) The thermal boundary layer is
significantly thicker than the velocity boundary layer. B) The velocity boundary layer is
significantly thicker than the thermal boundary layer. C) The flow is guaranteed to be turbulent
regardless of the Reynolds number. D) The fluid has zero thermal conductivity.
● The Answer: B (The velocity boundary layer is significantly thicker than the thermal
boundary layer.)
● Distractor Analysis:
○ A is incorrect: This would be true for liquid metals where Pr \ll 1, where heat diffuses
faster than momentum.
○ C is incorrect: Turbulence is determined by the Reynolds number, though Pr affects
how heat is transported within that turbulence.
○ D is incorrect: Pr is a ratio of finite properties (\nu/\alpha); a zero conductivity would
make Pr infinite.
The Mentor's Analysis: High Pr fluids, like the dielectric oils used in 2027 immersion racks,
"trap" heat in a very thin thermal boundary layer while the momentum effects (viscosity) reach
deep into the flow. This means your temperature gradients are extremely steep. If your surface
is even slightly rough, those roughness elements will poke right through the thermal layer,
causing massive, unpredictable spikes in local h.
Q3: When calculating the convection coefficient for a 2026 EV battery cooling plate, the
practitioner must evaluate fluid properties at the FILM TEMPERATURE (T_f). Which of the
following is the MOST APPROPRIATE definition of T_f? A) T_f = T_s - T_\infty B) T_f = (T_s +
T_\infty) / 2 C) T_f = (T_s + T_\infty) / 4 D) T_f = T_{ambient} + 15^\circ\text{C}
● The Answer: B (T_f = (T_s + T_\infty) / 2)
, ● Distractor Analysis:
○ A is incorrect: This is the temperature driving force, used in Newton’s Law, not for
property lookups.
○ C is incorrect: This has no physical basis in standard heat transfer correlations.
○ D is incorrect: This is a "rule of thumb" that lacks the precision required for
high-performance 2026 certification.
The Mentor's Analysis: Property variation across the boundary layer is non-linear. Viscosity, in
particular, can change by 50% between the wall and the free-stream. The film temperature is
the industry-standard "average" that allows us to use constant-property correlations with
reasonable accuracy. Failing to use T_f is a rookie error that can lead to a 15% error in your
predicted heat flux.
Q4: In 2027 high-density electronics cooling, the NUSSELT NUMBER (Nu) is often the central
target of a simulation. Physically, what does a Nu of 100 REPRESENT? A) The convective heat
transfer is 100 times more effective than conduction through a stagnant fluid layer of the same
thickness. B) The surface temperature is 100 degrees higher than the fluid temperature. C) The
fluid is moving at 100 m/s. D) The thermal boundary layer is 100 times thicker than the plate.
● The Answer: A (The convective heat transfer is 100 times more effective than conduction
through a stagnant fluid layer of the same thickness.)
● Distractor Analysis:
○ B is incorrect: Nu is a dimensionless ratio of gradients, not a temperature
measurement.
○ C is incorrect: Velocity is represented by the Reynolds number, not the Nusselt
number.
○ D is incorrect: Nu is inversely proportional to the boundary layer thickness; a high
Nu implies a very thin layer.
The Mentor's Analysis: Think of Nu as your "Convection Multiplier." If Nu is 1, you might as
well be cooling your chip with a block of solid plastic. When we design for 2027 AI loads, we are
hunting for Nu values in the hundreds or thousands. If your Nu is low, you need to increase your
Re (velocity) or change your fluid to something with a better Pr.
Q5: For a flat plate in parallel flow, the transition from LAMINAR TO TURBULENT flow is
generally accepted to occur at a CRITICAL REYNOLDS NUMBER (Re_{x,c}) of 5 \times 10^5.
What is the IMMEDIATE professional implication for the local heat transfer coefficient (h_x) at
this transition point? A) h_x drops to near zero as the flow becomes disorganized. B) h_x
remains constant, but the pressure drop increases. C) h_x increases sharply due to enhanced
mixing by turbulent eddies. D) h_x decreases because the boundary layer becomes thicker.
● The Answer: C (h_x increases sharply due to enhanced mixing by turbulent eddies.)
● Distractor Analysis:
○ A is incorrect: Disorganization (turbulence) is the primary driver of high convection
rates.
○ B is incorrect: Convection and momentum are coupled; an increase in friction
always accompanies an increase in heat transfer in the transition.
○ D is incorrect: While the boundary layer does thicken faster in turbulence, the
mixing effect far outweighs the resistance of the extra thickness.
The Mentor's Analysis: Transition is a "gift" for cooling. In laminar flow, heat has to "crawl"
through fluid layers. In turbulence, the fluid "reaches out" and grabs the heat, physically moving
it into the core flow. In 2027, we often use "trip wires" or turbulators to force this transition earlier
(Re \approx 10^5) to maximize cooling on a short plate.
Q6: A 2026 industrial process involves EXTERNAL MASS TRANSFER where a species A
