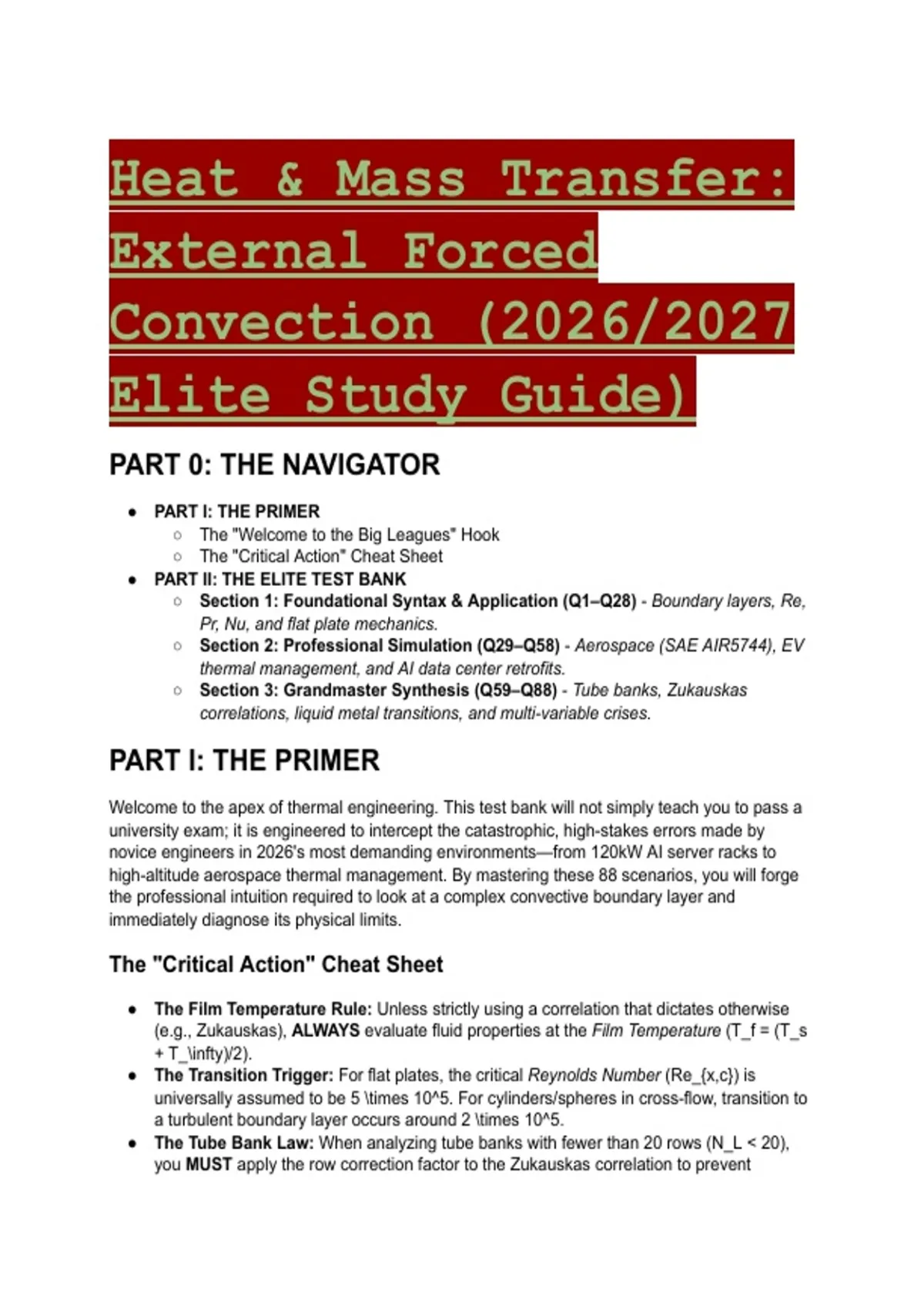

Heat & Mass Transfer:
External Forced
Convection (2026/2027
Elite Study Guide)
PART 0: THE NAVIGATOR
● PART I: THE PRIMER
○ The "Welcome to the Big Leagues" Hook
○ The "Critical Action" Cheat Sheet
● PART II: THE ELITE TEST BANK
○ Section 1: Foundational Syntax & Application (Q1–Q28) - Boundary layers, Re,
Pr, Nu, and flat plate mechanics.
○ Section 2: Professional Simulation (Q29–Q58) - Aerospace (SAE AIR5744), EV
thermal management, and AI data center retrofits.
○ Section 3: Grandmaster Synthesis (Q59–Q88) - Tube banks, Zukauskas
correlations, liquid metal transitions, and multi-variable crises.
PART I: THE PRIMER
Welcome to the apex of thermal engineering. This test bank will not simply teach you to pass a
university exam; it is engineered to intercept the catastrophic, high-stakes errors made by
novice engineers in 2026's most demanding environments—from 120kW AI server racks to
high-altitude aerospace thermal management. By mastering these 88 scenarios, you will forge
the professional intuition required to look at a complex convective boundary layer and
immediately diagnose its physical limits.
The "Critical Action" Cheat Sheet
● The Film Temperature Rule: Unless strictly using a correlation that dictates otherwise
(e.g., Zukauskas), ALWAYS evaluate fluid properties at the Film Temperature (T_f = (T_s
+ T_\infty)/2).
● The Transition Trigger: For flat plates, the critical Reynolds Number (Re_{x,c}) is
universally assumed to be 5 \times 10^5. For cylinders/spheres in cross-flow, transition to
a turbulent boundary layer occurs around 2 \times 10^5.
● The Tube Bank Law: When analyzing tube banks with fewer than 20 rows (N_L < 20),
you MUST apply the row correction factor to the Zukauskas correlation to prevent
, catastrophic under-design of the heat exchanger.
● The Altitude Imperative (SAE AIR5744): At high altitudes, air density (\rho) plummets.
While the Nusselt number (Nu) correlations remain valid at sea level, the resulting
convective heat transfer coefficient (h) drops severely, requiring radiation to be factored
into external flow calculations.
Fluid Type Prandtl Number (Pr) Boundary Layer Relationship
Liquid Metals Pr \ll 1 (e.g., 0.01) Thermal layer is much thicker
than velocity layer.
Gases (Air) Pr \approx 0.7 Thermal and velocity layers are
roughly equal.
Heavy Oils Pr \gg 1 (e.g., 1000) Velocity layer is much thicker
than thermal layer.
PART II: THE ELITE TEST BANK
Section 1: Foundational Syntax & Application
Q1: An engineer is evaluating external forced convection over an isothermal flat plate. The fluid
is engine oil (Pr = 3000). Which physical characteristic BEST describes the boundary layer
development? A) The velocity boundary layer and thermal boundary layer develop at the exact
same rate. B) The thermal boundary layer develops significantly faster and is thicker than the
velocity boundary layer. C) The velocity boundary layer is significantly thicker than the thermal
boundary layer. D) The flow will immediately transition to turbulence due to the high viscosity.
● The Answer: C (The velocity boundary layer is significantly thicker than the thermal
boundary layer.)
● Distractor Analysis: A is incorrect: This only occurs when Pr \approx 1 (gases). B is
incorrect: This occurs in liquid metals (Pr \ll 1). D is incorrect: High viscosity suppresses
turbulence, delaying the critical Reynolds number.
The Mentor's Analysis: The Prandtl number (Pr = \nu/\alpha) dictates the ratio of momentum
diffusivity to thermal diffusivity. A massive Pr means momentum diffuses rapidly while heat
crawls. Professional Intuition: In oils, heat is trapped in a paper-thin layer near the wall while
the velocity profile extends far into the free stream.
Q2: When calculating the average friction coefficient (C_f) for a flat plate with a mixed boundary
layer (transitioning at Re_c = 5 \times 10^5), which calculation method is MOST
APPROPRIATE? A) Integrate the laminar correlation from x=0 to L. B) Subtract the fictitious
laminar momentum from the turbulent correlation to account for the leading edge. C) Evaluate
the turbulent correlation exclusively at T_\infty. D) Use the Blasius exact solution for the entire
plate length.
● The Answer: B (Subtract the fictitious laminar momentum from the turbulent correlation
to account for the leading edge.)
● Distractor Analysis: A and D are incorrect: They ignore the turbulent region entirely,
vastly underpredicting drag. C is incorrect: Fluid properties must be evaluated at T_f, not
T_\infty.
The Mentor's Analysis: The mixed boundary layer correlation (e.g., Nu = (0.037 Re^{4/5} -
A)Pr^{1/3}) relies on an adjustment factor (A). This factor physically subtracts the excess heat
transfer/drag that the turbulent equation artificially assumes existed at the leading edge.
Q3: A flat plate is subjected to a uniform surface heat flux (q''_s) rather than a uniform surface
temperature. How does the local Nusselt number (Nu_x) compare to an isothermal plate under
, identical flow conditions? A) It is approximately 36% higher in laminar flow and 4% higher in
turbulent flow. B) It is identical, as boundary conditions do not affect dimensionless parameters.
C) It is lower due to the unheated starting length effect. D) It decreases exponentially along the
length of the plate.
● The Answer: A (It is approximately 36% higher in laminar flow and 4% higher in turbulent
flow.)
● Distractor Analysis: B is a classic novice trap: The thermal boundary condition
fundamentally alters the temperature gradient at the wall. C and D are mathematically
false.
The Mentor's Analysis: Constant heat flux forces the surface temperature to constantly rise
along the plate to maintain the energy transfer rate. This steepens the thermal gradient at the
wall compared to an isothermal plate, resulting in a higher local convection coefficient.
Q4: In 2026, a thermal engineer uses CFD to model cross-flow over a circular cylinder (Re_D =
10^4). At what approximate angle (\theta) from the forward stagnation point should they expect
the boundary layer to separate? A) 0^\circ B) 80^\circ C) 140^\circ D) 180^\circ
● The Answer: B (80^\circ)
● Distractor Analysis: A is incorrect: This is the stagnation point. C is incorrect: 140^\circ
is the separation point for a turbulent boundary layer (Re_D > 2 \times 10^5). D is
incorrect: Flow never stays attached to the rear stagnation point.
The Mentor's Analysis: At Re_D = 10^4, the boundary layer remains laminar. Laminar
boundary layers lack the momentum to overcome the adverse pressure gradient on the rear half
of the cylinder, causing early separation and a massive wake. Professional Intuition: Tripping
the flow to turbulence delays separation to 140^\circ, radically reducing pressure drag.
Q5: An engineering firm designs a tubular heat exchanger. The Zukauskas correlation is utilized
for the tube bank. At which temperature MUST all fluid properties be evaluated to ensure
validity? A) The film temperature (T_f). B) The surface temperature of the tubes (T_s). C) The
arithmetic mean of the fluid inlet and outlet temperatures (T_m). D) The free-stream inlet
temperature (T_{in}).
● The Answer: C (The arithmetic mean of the fluid inlet and outlet temperatures (T_m).)
● Distractor Analysis: A is a lethal trap: While flat plates and single cylinders use T_f,
Zukauskas explicitly requires properties at T_m (except for Pr_s, evaluated at T_s). B and
D are incorrect applications of boundary layer theory.
The Mentor's Analysis: Different empirical correlations are built on different foundational
assumptions. Zukauskas formulated his massive dataset based on the bulk mean temperature
of the fluid passing through the bank. Using T_f here will result in a failed design.
Q6: A technician notices a sharp decrease in the local heat transfer coefficient (h_x)
immediately downstream of the leading edge of a flat plate. What is the PRIMARY physical
mechanism causing this decrease? A) The fluid is losing its kinetic energy to the wall. B) The
thermal boundary layer is thickening, increasing thermal resistance. C) The flow is transitioning
to turbulence. D) Buoyancy forces are counteracting the forced convection.
● The Answer: B (The thermal boundary layer is thickening, increasing thermal resistance.)
● Distractor Analysis: A describes momentum loss, not heat transfer. C is incorrect:
Transition to turbulence increases h_x. D is incorrect: This describes mixed free/forced
convection.
The Mentor's Analysis: Convection is fundamentally conduction through the stagnant fluid
layer at the wall (h = k_f / \delta_t). As you move downstream, this insulating blanket (\delta_t)
grows thicker. Thicker insulation equals a lower h_x.
Q7: You calculate the pressure drop across a 2026-standard staggered tube bank. The
External Forced
Convection (2026/2027
Elite Study Guide)
PART 0: THE NAVIGATOR
● PART I: THE PRIMER
○ The "Welcome to the Big Leagues" Hook
○ The "Critical Action" Cheat Sheet
● PART II: THE ELITE TEST BANK
○ Section 1: Foundational Syntax & Application (Q1–Q28) - Boundary layers, Re,
Pr, Nu, and flat plate mechanics.
○ Section 2: Professional Simulation (Q29–Q58) - Aerospace (SAE AIR5744), EV
thermal management, and AI data center retrofits.
○ Section 3: Grandmaster Synthesis (Q59–Q88) - Tube banks, Zukauskas
correlations, liquid metal transitions, and multi-variable crises.
PART I: THE PRIMER
Welcome to the apex of thermal engineering. This test bank will not simply teach you to pass a
university exam; it is engineered to intercept the catastrophic, high-stakes errors made by
novice engineers in 2026's most demanding environments—from 120kW AI server racks to
high-altitude aerospace thermal management. By mastering these 88 scenarios, you will forge
the professional intuition required to look at a complex convective boundary layer and
immediately diagnose its physical limits.
The "Critical Action" Cheat Sheet
● The Film Temperature Rule: Unless strictly using a correlation that dictates otherwise
(e.g., Zukauskas), ALWAYS evaluate fluid properties at the Film Temperature (T_f = (T_s
+ T_\infty)/2).
● The Transition Trigger: For flat plates, the critical Reynolds Number (Re_{x,c}) is
universally assumed to be 5 \times 10^5. For cylinders/spheres in cross-flow, transition to
a turbulent boundary layer occurs around 2 \times 10^5.
● The Tube Bank Law: When analyzing tube banks with fewer than 20 rows (N_L < 20),
you MUST apply the row correction factor to the Zukauskas correlation to prevent
, catastrophic under-design of the heat exchanger.
● The Altitude Imperative (SAE AIR5744): At high altitudes, air density (\rho) plummets.
While the Nusselt number (Nu) correlations remain valid at sea level, the resulting
convective heat transfer coefficient (h) drops severely, requiring radiation to be factored
into external flow calculations.
Fluid Type Prandtl Number (Pr) Boundary Layer Relationship
Liquid Metals Pr \ll 1 (e.g., 0.01) Thermal layer is much thicker
than velocity layer.
Gases (Air) Pr \approx 0.7 Thermal and velocity layers are
roughly equal.
Heavy Oils Pr \gg 1 (e.g., 1000) Velocity layer is much thicker
than thermal layer.
PART II: THE ELITE TEST BANK
Section 1: Foundational Syntax & Application
Q1: An engineer is evaluating external forced convection over an isothermal flat plate. The fluid
is engine oil (Pr = 3000). Which physical characteristic BEST describes the boundary layer
development? A) The velocity boundary layer and thermal boundary layer develop at the exact
same rate. B) The thermal boundary layer develops significantly faster and is thicker than the
velocity boundary layer. C) The velocity boundary layer is significantly thicker than the thermal
boundary layer. D) The flow will immediately transition to turbulence due to the high viscosity.
● The Answer: C (The velocity boundary layer is significantly thicker than the thermal
boundary layer.)
● Distractor Analysis: A is incorrect: This only occurs when Pr \approx 1 (gases). B is
incorrect: This occurs in liquid metals (Pr \ll 1). D is incorrect: High viscosity suppresses
turbulence, delaying the critical Reynolds number.
The Mentor's Analysis: The Prandtl number (Pr = \nu/\alpha) dictates the ratio of momentum
diffusivity to thermal diffusivity. A massive Pr means momentum diffuses rapidly while heat
crawls. Professional Intuition: In oils, heat is trapped in a paper-thin layer near the wall while
the velocity profile extends far into the free stream.
Q2: When calculating the average friction coefficient (C_f) for a flat plate with a mixed boundary
layer (transitioning at Re_c = 5 \times 10^5), which calculation method is MOST
APPROPRIATE? A) Integrate the laminar correlation from x=0 to L. B) Subtract the fictitious
laminar momentum from the turbulent correlation to account for the leading edge. C) Evaluate
the turbulent correlation exclusively at T_\infty. D) Use the Blasius exact solution for the entire
plate length.
● The Answer: B (Subtract the fictitious laminar momentum from the turbulent correlation
to account for the leading edge.)
● Distractor Analysis: A and D are incorrect: They ignore the turbulent region entirely,
vastly underpredicting drag. C is incorrect: Fluid properties must be evaluated at T_f, not
T_\infty.
The Mentor's Analysis: The mixed boundary layer correlation (e.g., Nu = (0.037 Re^{4/5} -
A)Pr^{1/3}) relies on an adjustment factor (A). This factor physically subtracts the excess heat
transfer/drag that the turbulent equation artificially assumes existed at the leading edge.
Q3: A flat plate is subjected to a uniform surface heat flux (q''_s) rather than a uniform surface
temperature. How does the local Nusselt number (Nu_x) compare to an isothermal plate under
, identical flow conditions? A) It is approximately 36% higher in laminar flow and 4% higher in
turbulent flow. B) It is identical, as boundary conditions do not affect dimensionless parameters.
C) It is lower due to the unheated starting length effect. D) It decreases exponentially along the
length of the plate.
● The Answer: A (It is approximately 36% higher in laminar flow and 4% higher in turbulent
flow.)
● Distractor Analysis: B is a classic novice trap: The thermal boundary condition
fundamentally alters the temperature gradient at the wall. C and D are mathematically
false.
The Mentor's Analysis: Constant heat flux forces the surface temperature to constantly rise
along the plate to maintain the energy transfer rate. This steepens the thermal gradient at the
wall compared to an isothermal plate, resulting in a higher local convection coefficient.
Q4: In 2026, a thermal engineer uses CFD to model cross-flow over a circular cylinder (Re_D =
10^4). At what approximate angle (\theta) from the forward stagnation point should they expect
the boundary layer to separate? A) 0^\circ B) 80^\circ C) 140^\circ D) 180^\circ
● The Answer: B (80^\circ)
● Distractor Analysis: A is incorrect: This is the stagnation point. C is incorrect: 140^\circ
is the separation point for a turbulent boundary layer (Re_D > 2 \times 10^5). D is
incorrect: Flow never stays attached to the rear stagnation point.
The Mentor's Analysis: At Re_D = 10^4, the boundary layer remains laminar. Laminar
boundary layers lack the momentum to overcome the adverse pressure gradient on the rear half
of the cylinder, causing early separation and a massive wake. Professional Intuition: Tripping
the flow to turbulence delays separation to 140^\circ, radically reducing pressure drag.
Q5: An engineering firm designs a tubular heat exchanger. The Zukauskas correlation is utilized
for the tube bank. At which temperature MUST all fluid properties be evaluated to ensure
validity? A) The film temperature (T_f). B) The surface temperature of the tubes (T_s). C) The
arithmetic mean of the fluid inlet and outlet temperatures (T_m). D) The free-stream inlet
temperature (T_{in}).
● The Answer: C (The arithmetic mean of the fluid inlet and outlet temperatures (T_m).)
● Distractor Analysis: A is a lethal trap: While flat plates and single cylinders use T_f,
Zukauskas explicitly requires properties at T_m (except for Pr_s, evaluated at T_s). B and
D are incorrect applications of boundary layer theory.
The Mentor's Analysis: Different empirical correlations are built on different foundational
assumptions. Zukauskas formulated his massive dataset based on the bulk mean temperature
of the fluid passing through the bank. Using T_f here will result in a failed design.
Q6: A technician notices a sharp decrease in the local heat transfer coefficient (h_x)
immediately downstream of the leading edge of a flat plate. What is the PRIMARY physical
mechanism causing this decrease? A) The fluid is losing its kinetic energy to the wall. B) The
thermal boundary layer is thickening, increasing thermal resistance. C) The flow is transitioning
to turbulence. D) Buoyancy forces are counteracting the forced convection.
● The Answer: B (The thermal boundary layer is thickening, increasing thermal resistance.)
● Distractor Analysis: A describes momentum loss, not heat transfer. C is incorrect:
Transition to turbulence increases h_x. D is incorrect: This describes mixed free/forced
convection.
The Mentor's Analysis: Convection is fundamentally conduction through the stagnant fluid
layer at the wall (h = k_f / \delta_t). As you move downstream, this insulating blanket (\delta_t)
grows thicker. Thicker insulation equals a lower h_x.
Q7: You calculate the pressure drop across a 2026-standard staggered tube bank. The
