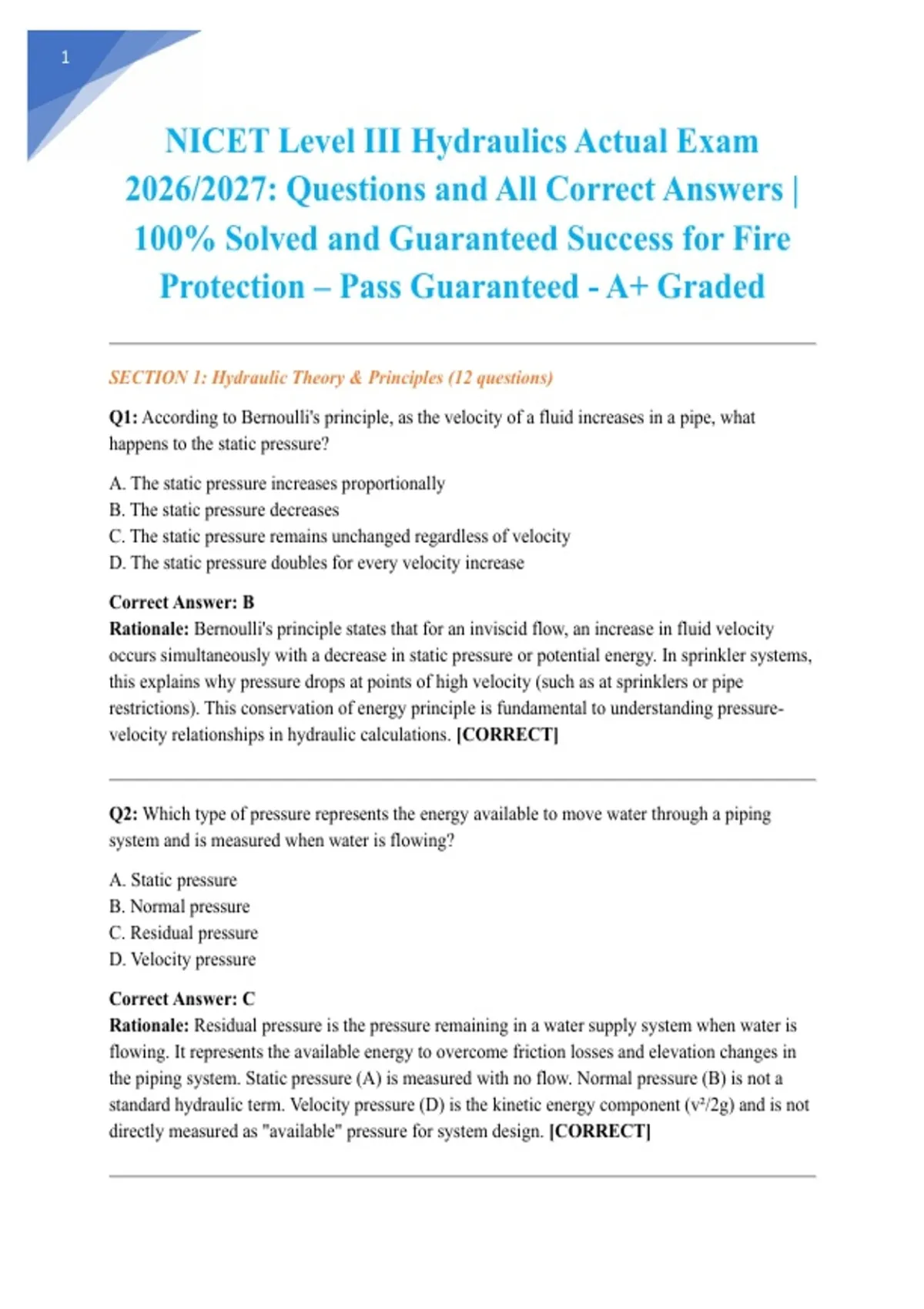

NICET Level III Hydraulics Actual Exam
2026/2027: Questions and All Correct Answers |
100% Solved and Guaranteed Success for Fire
Protection – Pass Guaranteed - A+ Graded
SECTION 1: Hydraulic Theory & Principles (12 questions)
Q1: According to Bernoulli's principle, as the velocity of a fluid increases in a pipe, what
happens to the static pressure?
A. The static pressure increases proportionally
B. The static pressure decreases
C. The static pressure remains unchanged regardless of velocity
D. The static pressure doubles for every velocity increase
Correct Answer: B
Rationale: Bernoulli's principle states that for an inviscid flow, an increase in fluid velocity
occurs simultaneously with a decrease in static pressure or potential energy. In sprinkler systems,
this explains why pressure drops at points of high velocity (such as at sprinklers or pipe
restrictions). This conservation of energy principle is fundamental to understanding pressure-
velocity relationships in hydraulic calculations. [CORRECT]
Q2: Which type of pressure represents the energy available to move water through a piping
system and is measured when water is flowing?
A. Static pressure
B. Normal pressure
C. Residual pressure
D. Velocity pressure
Correct Answer: C
Rationale: Residual pressure is the pressure remaining in a water supply system when water is
flowing. It represents the available energy to overcome friction losses and elevation changes in
the piping system. Static pressure (A) is measured with no flow. Normal pressure (B) is not a
standard hydraulic term. Velocity pressure (D) is the kinetic energy component (v²/2g) and is not
directly measured as "available" pressure for system design. [CORRECT]
,2
Q3: The Reynolds number is used to determine which characteristic of fluid flow?
A. The chemical composition of the water
B. Whether flow is laminar or turbulent
C. The temperature of the water supply
D. The pipe material compatibility
Correct Answer: B
Rationale: The Reynolds number (Re = ρvD/μ) is a dimensionless quantity used to predict flow
patterns. For pipe flow, Re < 2,000 indicates laminar flow, Re > 4,000 indicates turbulent flow,
and 2,000-4,000 is transitional. NFPA 13 hydraulic calculations assume turbulent flow (Re >
4,000), which is the basis for using the Hazen-Williams formula rather than laminar flow
equations. [CORRECT]
Q4: What phenomenon occurs when the pressure in a piping system drops below the vapor
pressure of the liquid, causing vapor bubbles to form and subsequently collapse, potentially
damaging pump components?
A. Water hammer
B. Cavitation
C. Hydraulic gradient failure
D. Static pressure reversal
Correct Answer: B
Rationale: Cavitation occurs when local pressure drops below the liquid's vapor pressure,
forming vapor bubbles that implode when pressure recovers. This causes pitting of impellers,
noise, vibration, and reduced pump performance. In fire pumps, cavitation is prevented by
ensuring adequate Net Positive Suction Head (NPSH) available exceeds NPSH required. Water
hammer (A) is pressure surge from rapid valve closure. [CORRECT]
Q5: In hydraulic calculations, velocity pressure is calculated using which formula?
A. Pv = v²/2g
B. Pv = ρgh
C. Pv = Q × A
D. Pv = C × d²
Correct Answer: A
Rationale: Velocity pressure (Pv) represents kinetic energy per unit weight and is calculated as
Pv = v²/2g, where v = velocity (ft/s) and g = acceleration due to gravity (32.2 ft/s²). In NFPA 13
calculations, velocity pressure is typically ignored for most sprinkler calculations (except for
, 3
specific applications like ESFR sprinklers or momentum transfer calculations) because it is small
compared to friction losses. [CORRECT]
Q6: Which statement about the hydraulic gradient is correct?
A. It represents the rate of pressure increase per unit length of pipe
B. It is the slope of the total head line and represents friction loss per unit length
C. It always remains horizontal regardless of flow conditions
D. It is only applicable to standpipe systems, not sprinkler systems
Correct Answer: B
Rationale: The hydraulic gradient (or friction loss gradient) represents the rate of energy loss
due to friction per unit length of pipe, typically expressed as psi/ft or ft/ft. It slopes downward in
the direction of flow, with steeper slopes indicating higher friction loss. The total head line slopes
parallel to the hydraulic gradient, while the pressure grade line accounts for elevation changes.
[CORRECT]
Q7: Water hammer in a sprinkler system is best prevented by which method?
A. Increasing water temperature to reduce viscosity
B. Using slow-opening valves and properly sized air chambers or surge suppressors
C. Eliminating all pipe fittings to create straight runs
D. Operating the system at maximum possible pressure
Correct Answer: B
Rationale: Water hammer (hydraulic shock) results from rapid deceleration of water creating
pressure surges. Prevention includes: slow-opening valves (deluge valve clappers, butterfly
valves with controlled opening), air chambers, surge suppressors, pressure relief valves, and
avoiding sudden valve closures. Rapid valve operation (deluge systems) and high velocities
exacerbate water hammer. Temperature (A), straight pipe (C), and maximum pressure (D) are not
preventive measures. [CORRECT]
Q8: For water at 60°F, which property remains essentially constant regardless of pressure
changes in typical sprinkler system operating ranges?
A. Density
B. Viscosity
C. Vapor pressure
D. Both A and B
