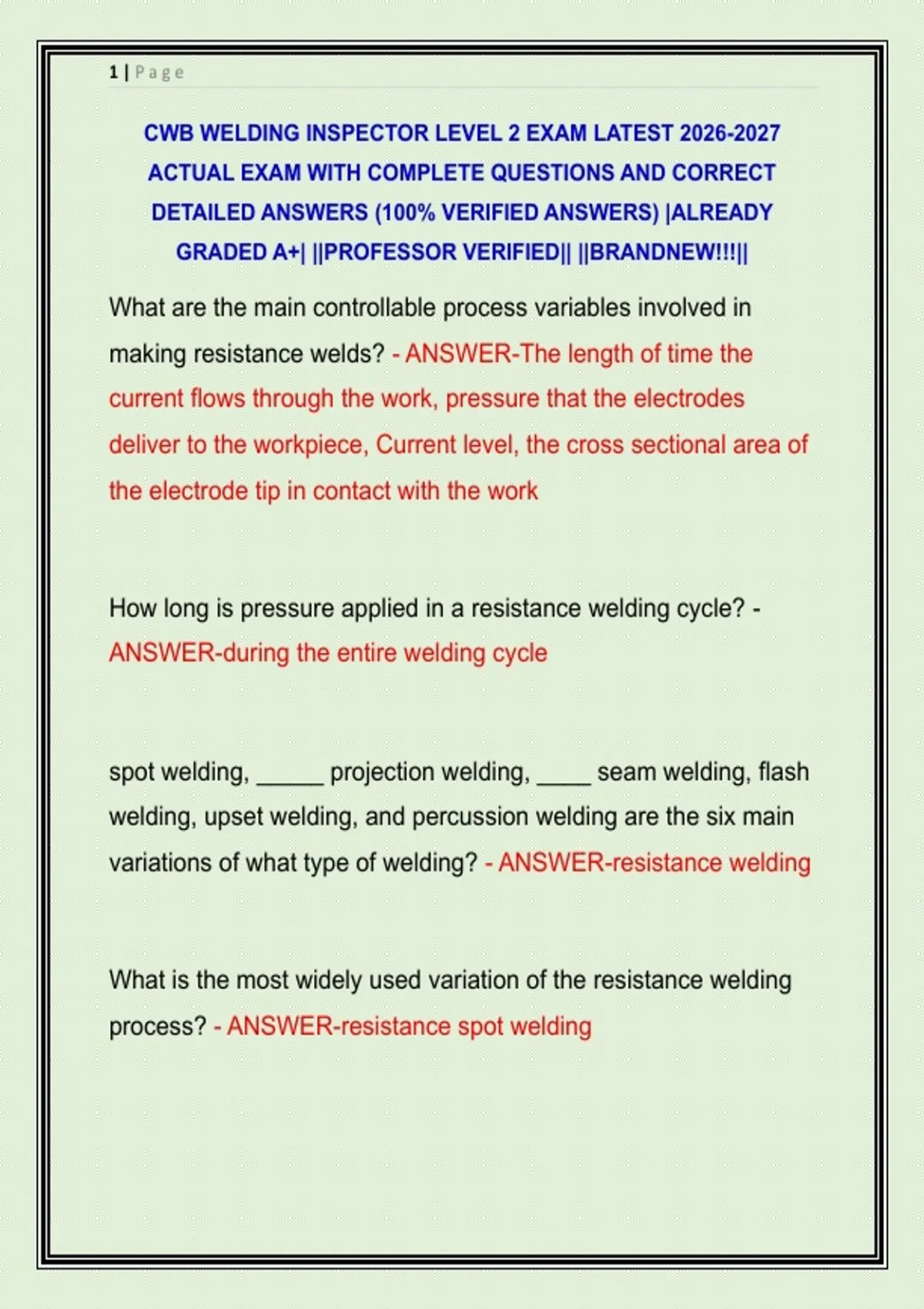

1|Page
CWB WELDING INSPECTOR LEVEL 2 EXAM LATEST 2026-2027
ACTUAL EXAM WITH COMPLETE QUESTIONS AND CORRECT
DETAILED ANSWERS (100% VERIFIED ANSWERS) |ALREADY
GRADED A+| ||PROFESSOR VERIFIED|| ||BRANDNEW!!!||
What are the main controllable process variables involved in
making resistance welds? - ANSWER-The length of time the
current flows through the work, pressure that the electrodes
deliver to the workpiece, Current level, the cross sectional area of
the electrode tip in contact with the work
How long is pressure applied in a resistance welding cycle? -
ANSWER-during the entire welding cycle
spot welding, _____ projection welding, ____ seam welding, flash
welding, upset welding, and percussion welding are the six main
variations of what type of welding? - ANSWER-resistance welding
What is the most widely used variation of the resistance welding
process? - ANSWER-resistance spot welding
,2|Page
What is the main disadvantage of the spot welding process? -
ANSWER-material thickness is limited
What makes resistance projection welding different from
resistance spot welding? - ANSWER-protrusions or embossments
are made in the material to concentrate heat generation
A welding process in which a weld is produced in a butt joint by
slowly bring the parts together and applying pressure while a high
density of current fuses the mating surfaces. - ANSWER-flash
welding
What welding process do the following characteristics describe?
-some force is applied before the welding current is switched on
-typically no melting occurs
-only parts with interfaces equal in cross-sectional area can be
joined
-higher quality joints are required for adequate resistance heating
- ANSWER-upset welding
,3|Page
what welding process is similar to flash and upset welding, but
produces an arc by a rapid electrical discharge over a decreasing
air gap, with pressure applied during or immediately after
electrical discharge - ANSWER-percussion welding
A welding process in which an atomic bond between two surfaces
is produce through the application of pressure and heat -
ANSWER-Diffusion welding
In continuously fed wire welding processes, wire feed speed is
directly proportional to ____ ____. An increase in WFS results in
an increase in ____ ___ and penetration. - ANSWER-welding
current
______ is the sum of the arc voltage and the voltage drop in the
remaining parts of the electrical circuit. - ANSWER-Output voltage
A substance with metallic properties and composed of two or
more chemical elements of which at least one is a metal. -
ANSWER-Alloy
, 4|Page
A considerable amount of ______ can be produced by the flow of
electrical current in a circuit. - ANSWER-Heat
_____ usually don't conduct electricity unless sufficient energy is
applied. - ANSWER-Gases
The ionized gas region between energized electrodes is called a
______. - ANSWER-Plasma
A welding arc is intensely hot, with temperatures that can exceed
_______ °C - ANSWER-30000
The fraction of the overall energy that is available to melt the
electrode/filler metal and the workpiece is termed the _____ -
ANSWER-Arc efficiency
The distance from the tip of the welding electrode to the adjacent
surface of the weld pool. - ANSWER-Arc Length
