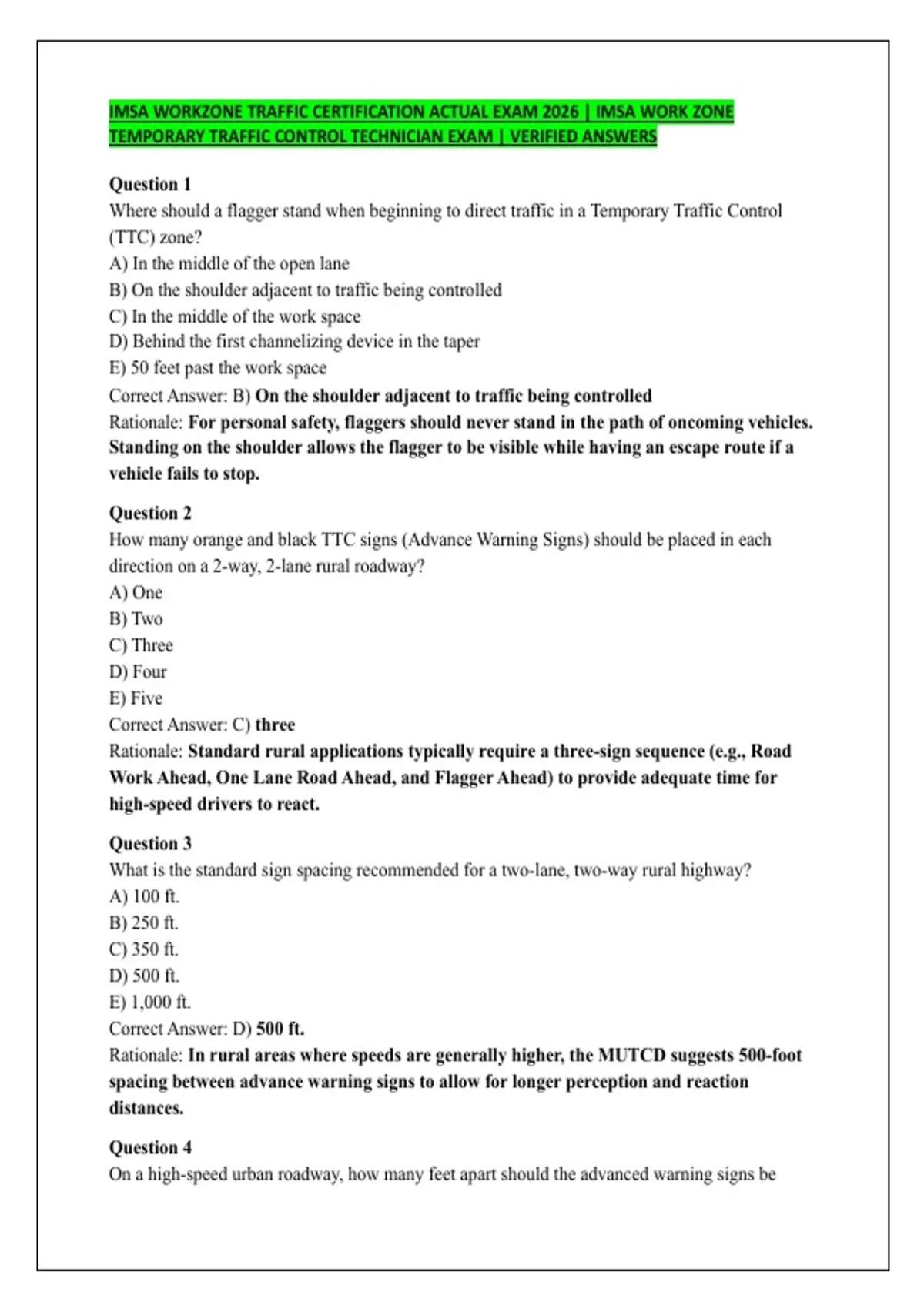

IMSA WORKZONE TRAFFIC CERTIFICATION ACTUAL EXAM 2026 | IMSA WORK ZONE
TEMPORARY TRAFFIC CONTROL TECHNICIAN EXAM | VERIFIED ANSWERS
Question 1
Where should a flagger stand when beginning to direct traffic in a Temporary Traffic Control
(TTC) zone?
A) In the middle of the open lane
B) On the shoulder adjacent to traffic being controlled
C) In the middle of the work space
D) Behind the first channelizing device in the taper
E) 50 feet past the work space
Correct Answer: B) On the shoulder adjacent to traffic being controlled
Rationale: For personal safety, flaggers should never stand in the path of oncoming vehicles.
Standing on the shoulder allows the flagger to be visible while having an escape route if a
vehicle fails to stop.
Question 2
How many orange and black TTC signs (Advance Warning Signs) should be placed in each
direction on a 2-way, 2-lane rural roadway?
A) One
B) Two
C) Three
D) Four
E) Five
Correct Answer: C) three
Rationale: Standard rural applications typically require a three-sign sequence (e.g., Road
Work Ahead, One Lane Road Ahead, and Flagger Ahead) to provide adequate time for
high-speed drivers to react.
Question 3
What is the standard sign spacing recommended for a two-lane, two-way rural highway?
A) 100 ft.
B) 250 ft.
C) 350 ft.
D) 500 ft.
E) 1,000 ft.
Correct Answer: D) 500 ft.
Rationale: In rural areas where speeds are generally higher, the MUTCD suggests 500-foot
spacing between advance warning signs to allow for longer perception and reaction
distances.
Question 4
On a high-speed urban roadway, how many feet apart should the advanced warning signs be
, 2
spaced?
A) 100 ft.
B) 200 ft.
C) 350 ft.
D) 500 ft.
E) 600 ft.
Correct Answer: C) 350 ft
Rationale: High-speed urban settings require closer spacing than rural settings (350 ft vs
500 ft) due to higher traffic density and the frequency of intersections or driveways.
Question 5
For additional emphasis on a high-speed urban roadway, where may signs be posted in addition
to the right-hand side?
A) On the back of work trucks
B) Suspended from overhead wires
C) On the left-hand side of the highway
D) Only at the exit of the work zone
E) On the pavement itself
Correct Answer: C) on the left hand side of the highway
Rationale: Dual-mounting signs (placing them on both the left and right sides) increases
visibility on multi-lane or high-speed roads where large vehicles might block the view of a
single sign.
Question 6
"Taper length" is best defined as:
A) The total length of the work zone
B) The distance required to safely route traffic from one lane to another
C) The length of the buffer space
D) The distance between the flagger and the workers
E) The height of the traffic cones
Correct Answer: B) The distance required to safely route traffic from one lane to another
Rationale: A taper is a series of channelizing devices placed at an angle to move traffic out
of its normal path into a new lane or around a work space.
Question 7
The calculation of the required taper length (L) is based on which two primary factors?
A) Time of day and weather conditions
B) Number of workers and size of equipment
C) Speed of traffic and width of the lane closed
D) Type of pavement and age of the road
E) Distance to the nearest intersection
, 3
Correct Answer: C) speed and width of lane closed
Rationale: The formula for taper length (e.g., L=WS for 45mph+) directly uses the width of
the offset (W) and the speed (S) to determine the appropriate distance for safe merging.
Question 8
What is the maximum distance in feet between channelizing devices in a taper?
A) 10 feet
B) 20 feet
C) Equal in feet to the speed limit
D) Twice the speed limit
E) 100 feet regardless of speed
Correct Answer: C) equal in feet to the speed limit
Rationale: To maintain a visual "wall" that prevents vehicles from entering the work area,
devices should be spaced no further apart (in feet) than the numerical value of the speed
limit (in MPH).
Question 9
If the stripes on a barricade start at the upper right side and angle down to the lower left side,
what does this indicate to the driver?
A) Traffic should pass to the right
B) Traffic should pass to the left
C) The road is closed to all traffic
D) Traffic should stop immediately
E) Speed should be reduced by 50%
Correct Answer: B) traffic should pass to the left
Rationale: Barricade stripes are directional; the stripes slope downward toward the side on
which traffic is intended to pass.
Question 10
At night or on high-speed roads (>45 mph), traffic cones shall be:
A) At least 18" tall and solid orange
B) At least 28" tall and solid orange
C) At least 28" tall and retroreflectorized with white and orange bands
D) Any height as long as they have a light on top
E) Replaced by Type III barricades
Correct Answer: C) at least 28" tall and retroreflectorized with at least two white bands and
two orange bands
Rationale: Larger cones are required for higher speeds for better visibility, and
retroreflectorization is mandatory for night visibility as per MUTCD standards.
