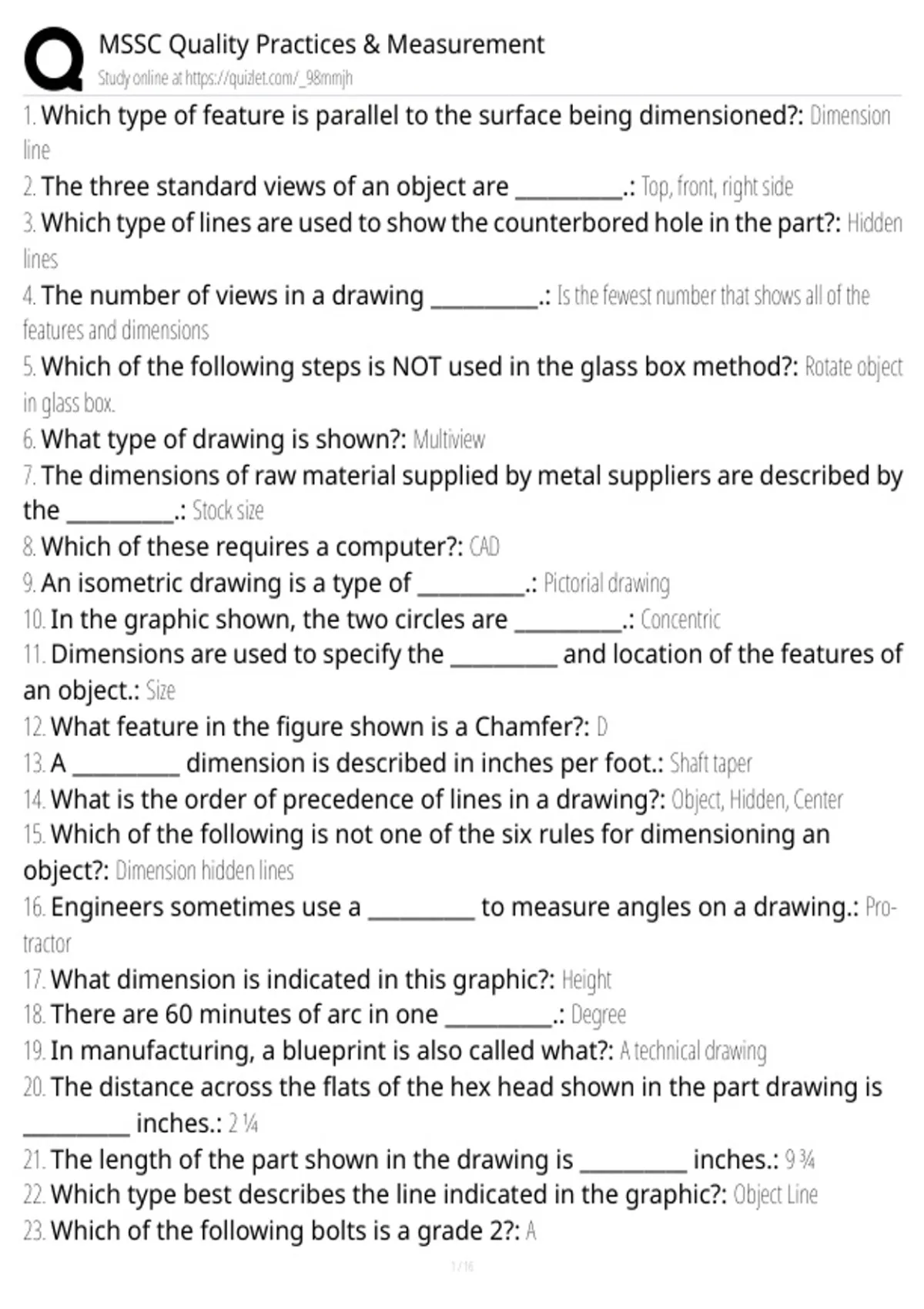

MSSC Quality Practices & Measurement
Study online at https://quizlet.com/_98mmjh
1. Which type of feature is parallel to the surface being dimensioned?: Dimension
line
2. The three standard views of an object are __________.: Top, front, right side
3. Which type of lines are used to show the counterbored hole in the part?: Hidden
lines
4. The number of views in a drawing __________.: Is the fewest number that shows all of the
features and dimensions
5. Which of the following steps is NOT used in the glass box method?: Rotate object
in glass box.
6. What type of drawing is shown?: Multiview
7. The dimensions of raw material supplied by metal suppliers are described by
the __________.: Stock size
8. Which of these requires a computer?: CAD
9. An isometric drawing is a type of __________.: Pictorial drawing
10. In the graphic shown, the two circles are __________.: Concentric
11. Dimensions are used to specify the __________ and location of the features of
an object.: Size
12. What feature in the figure shown is a Chamfer?: D
13. A __________ dimension is described in inches per foot.: Shaft taper
14. What is the order of precedence of lines in a drawing?: Object, Hidden, Center
15. Which of the following is not one of the six rules for dimensioning an
object?: Dimension hidden lines
16. Engineers sometimes use a __________ to measure angles on a drawing.: Pro-
tractor
17. What dimension is indicated in this graphic?: Height
18. There are 60 minutes of arc in one __________.: Degree
19. In manufacturing, a blueprint is also called what?: A technical drawing
20. The distance across the flats of the hex head shown in the part drawing is
__________ inches.: 2 ¼
21. The length of the part shown in the drawing is __________ inches.: 9 ¾
22. Which type best describes the line indicated in the graphic?: Object Line
23. Which of the following bolts is a grade 2?: A
, MSSC Quality Practices & Measurement
Study online at https://quizlet.com/_98mmjh
24. The hole shown in the graphic is a __________ hole.: Counterbore
25. What are the two types of assembly drawings?: Exploded and basic
26. A sectional view __________.: All of the above
27. Which of the following is not used to specify a threaded fastener?: Minor diameter
28. Two types of threads are __________.: Internal and external
29. In the assembly drawing shown, part 3 screws into part __________.: 4
30. The material that will be used to create the gear is indicated in the part
drawing's title block to be __________.: Cast iron
31. In a threaded fastener assembly what is designed to protect the threads?: -
Shank
32. Manufacturing workers can use a calibrated torque wrench to __________.: -
Measure the proper amount of torque
33. The part of a drawing that indicates that the drawing has the most up to date
information on it is __________.: Drawing revision level
34. What type hole is shown in the figure?: Counterbored
35. The minor diameter of a screw thread is measured at the __________.: Root of
screw thread
36. Section lines in a sectional view are __________.: All of the above
37. To establish on a drawing that 1/4 inch equals 1 inch, the designer would
write __________.: 1/4=1
38. Metals treated by __________ processes become soft.: Annealing
39. Where would you look in a title block to see if there has been changes?: Revision
number
40. Section lines on a blueprint indicate __________.: A surface that has been cut
41. A screw with fine thread is represented on a drawing with what designation?-
: UNF
42. What is the depth of the countersink in the image?: 0.12 inches
43. What is placed at the arrowheads of the cutting plane line to identify the
cutting plane with the proper sectional view?: Capital letter
44. Assembly drawings rely on reference letters or numbers to __________.: Identify
the individual parts
, MSSC Quality Practices & Measurement
Study online at https://quizlet.com/_98mmjh
45. If a feature on a drawing is drawn 3 inches long and the scale is 1:4, what is
the actual dimension on the object?: 12"
46. The specifications for the length of produced parts is 5.146 inches with a
tolerance of ± 0.005. Is a part that has been produced at 5.140 inches out of
spec?: Yes, it is out of spec
47. Which dimension on a production drawing has the most accuracy?: The one with
the most "tolerance" decimal places
48. A datum feature symbol can be connected to __________.: Any of the above
49. The graphic shown is an example of __________ dimensioning.: Baseline
50. If 4 percent of 1200 production pieces are out of spec, how many are out of
spec?: 48
51. A part measuring 2.54 inches is out of spec if the specification is __________.-
: 2.00 ± .53
52. A running fit is also called a(n) __________.: Sliding fit
53. Form, profile, orientation, location and runout are shown by __________.: GD&T
54. If a drawing shows a part with a diameter of 1.275 ± .003, what is the
minimum and maximum size allowed?: 1.272, 1.278
55. The equipment at a workstation is supposed to produce parts at 2.593, per
the part drawing, and has a spec limit of ± 0.004. Is a part that has been
produced at 2.590 out of spec?: No, it is within spec
56. A part measuring 44.85 mm in a process with a tolerance of 45mm ± .28 is
considered __________.: Out of Spec, above the upper tolerance limit
57. Datums are a point of reference to establish __________.
- Job tasks: Datum features
58. The maximum material condition for the part shown is __________.: 15.75
59. The least material condition for the part shown is __________.: 0.75
60. Geometric Dimensioning and Tolerancing uses __________ to represent fea-
tures and tolerances.: Symbols
61. Examples of __________ tolerance describe the form and orientation of a
part.: Profile
62. Which of the following part lengths is out of spec if the specification calls for
a part length of 3.202 (± 0.003)?: 3.197
