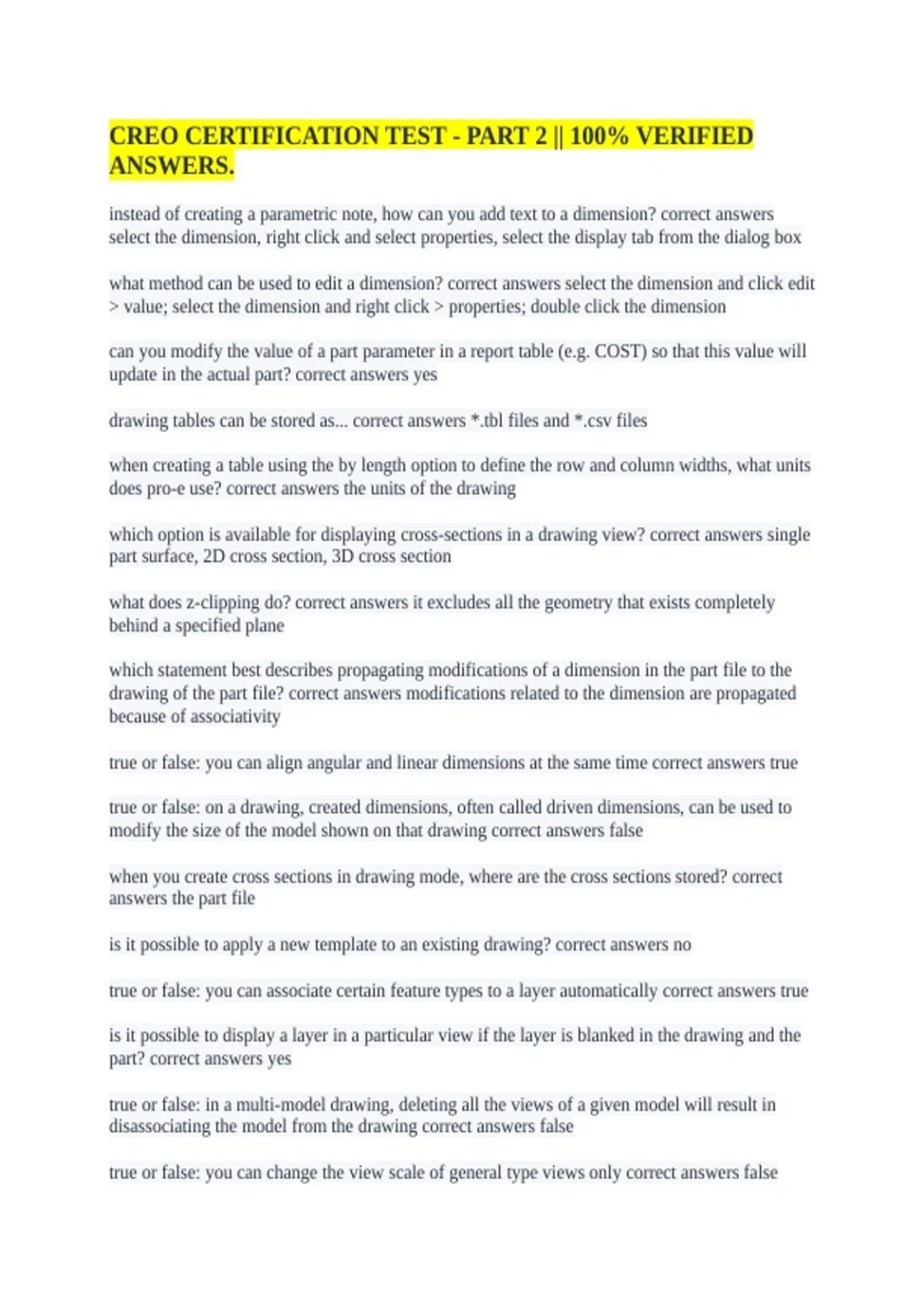

CREO CERTIFICATION TEST - PART 2 || 100% VERIFIED
ANSWERS.
instead of creating a parametric note, how can you add text to a dimension? correct answers
select the dimension, right click and select properties, select the display tab from the dialog box
what method can be used to edit a dimension? correct answers select the dimension and click edit
> value; select the dimension and right click > properties; double click the dimension
can you modify the value of a part parameter in a report table (e.g. COST) so that this value will
update in the actual part? correct answers yes
drawing tables can be stored as... correct answers *.tbl files and *.csv files
when creating a table using the by length option to define the row and column widths, what units
does pro-e use? correct answers the units of the drawing
which option is available for displaying cross-sections in a drawing view? correct answers single
part surface, 2D cross section, 3D cross section
what does z-clipping do? correct answers it excludes all the geometry that exists completely
behind a specified plane
which statement best describes propagating modifications of a dimension in the part file to the
drawing of the part file? correct answers modifications related to the dimension are propagated
because of associativity
true or false: you can align angular and linear dimensions at the same time correct answers true
true or false: on a drawing, created dimensions, often called driven dimensions, can be used to
modify the size of the model shown on that drawing correct answers false
when you create cross sections in drawing mode, where are the cross sections stored? correct
answers the part file
is it possible to apply a new template to an existing drawing? correct answers no
true or false: you can associate certain feature types to a layer automatically correct answers true
is it possible to display a layer in a particular view if the layer is blanked in the drawing and the
part? correct answers yes
true or false: in a multi-model drawing, deleting all the views of a given model will result in
disassociating the model from the drawing correct answers false
true or false: you can change the view scale of general type views only correct answers false
