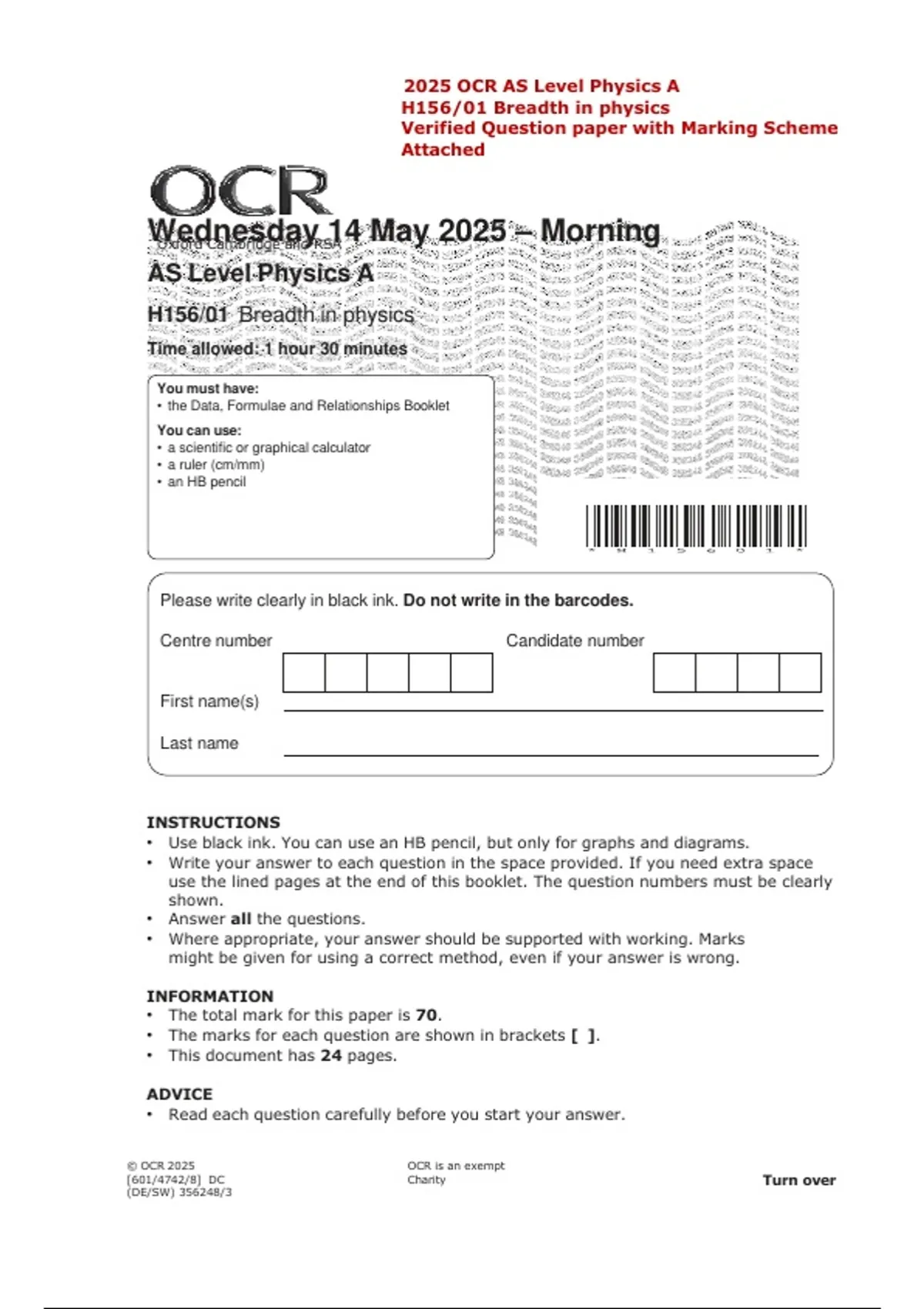

2025 OCR AS Level Physics A
H156/01 Breadth in physics
Verified Question paper with Marking Scheme
Attached
Wednesday 14 May 2025 – Morning
Oxford Cambridge and RSA
AS Level Physics A
H156/01 Breadth in physics
Time allowed: 1 hour 30 minutes
You must have:
• the Data, Formulae and Relationships Booklet
You can use:
• a scientific or graphical calculator
• a ruler (cm/mm)
• an HB pencil
Please write clearly in black ink. Do not write in the barcodes.
Centre number Candidate number
First name(s)
Last name
INSTRUCTIONS
• Use black ink. You can use an HB pencil, but only for graphs and diagrams.
• Write your answer to each question in the space provided. If you need extra space
use the lined pages at the end of this booklet. The question numbers must be clearly
shown.
• Answer all the questions.
• Where appropriate, your answer should be supported with working. Marks
might be given for using a correct method, even if your answer is wrong.
INFORMATION
• The total mark for this paper is 70.
• The marks for each question are shown in brackets [ ].
• This document has 24 pages.
ADVICE
• Read each question carefully before you start your answer.
© OCR 2025 OCR is an exempt
[601/4742/8] DC Charity Turn over
(DE/SW) 356248/3
, 2
Section A
You should spend a maximum of 25 minutes on this
section. Write your answer to each question in the
box provided.
1 A metal wire has cross-sectional area of 4.0 × 10–6m2. The number density of charge
carriers in the metal is 8.5 × 1028 m–3. The current in the wire is 1.5A.
Calculate the mean drift velocity of the charge carriers.
A 4.4 × 10–6ms–1
B 2.8 × 10–5ms–1
C 3.6 × 10–4ms–1
D 8.2 × 10–4ms–1
Your answer [1]
2 A beam of length 4.0m is pivoted at its centre.
Two equal and opposite forces of magnitude 2100N are applied to opposite ends of the beam,
as shown.
beam pivot
2100 N
2100 N
What is the torque due to the two forces shown?
A 2700Nm
B 3200Nm
C 5400Nm
D 6400Nm
Your answer [1]
© OCR 2025
, 3
3 Four resistors, each of resistance 10Ω, are connected in a network, as shown.
X Y
What is the total resistance between points X and Y?
A 2.5Ω
B 10Ω
C 25Ω
D 40Ω
Your answer [1]
4 Which is a possible wavelength of ultraviolet radiation?
A 10–6 m
B 10–8 m
C 10–10 m
D 10–12 m
Your answer [1]
5 The diagram shows a sound wave in an open pipe of length 1.4m.
1.4 m
The speed of the wave is 330 ms–1.
Calculate the frequency of the wave.
A 160Hz
B 240Hz
C 350Hz
D 710Hz
© OCR 2025 Turn over
, 4
Your answer [1]
