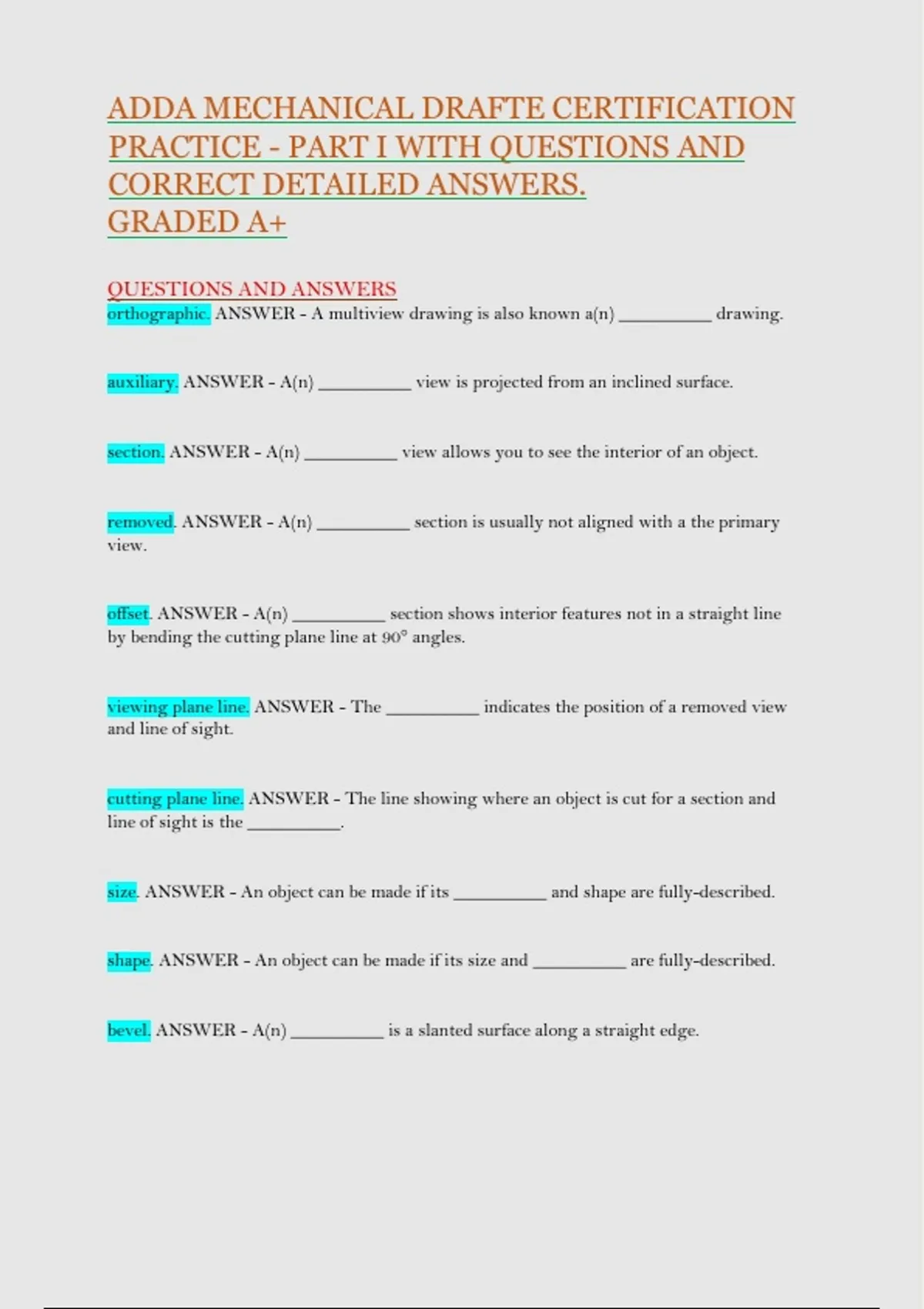

Content preview

ADDA MECHANICAL DRAFTE CERTIFICATION
PRACTICE - PART I WITH QUESTIONS AND
CORRECT DETAILED ANSWERS.
GRADED A+

QUESTIONS AND ANSWERS
orthographic. ANSWER - A multiview drawing is also known a(n) __________ drawing.


auxiliary. ANSWER - A(n) __________ view is projected from an inclined surface.


section. ANSWER - A(n) __________ view allows you to see the interior of an object.


removed. ANSWER - A(n) __________ section is usually not aligned with a the primary
view.


offset. ANSWER - A(n) __________ section shows interior features not in a straight line
by bending the cutting plane line at 90° angles.


viewing plane line. ANSWER - The __________ indicates the position of a removed view
and line of sight.


cutting plane line. ANSWER - The line showing where an object is cut for a section and
line of sight is the __________.


size. ANSWER - An object can be made if its __________ and shape are fully-described.


shape. ANSWER - An object can be made if its size and __________ are fully-described.


bevel. ANSWER - A(n) __________ is a slanted surface along a straight edge.
