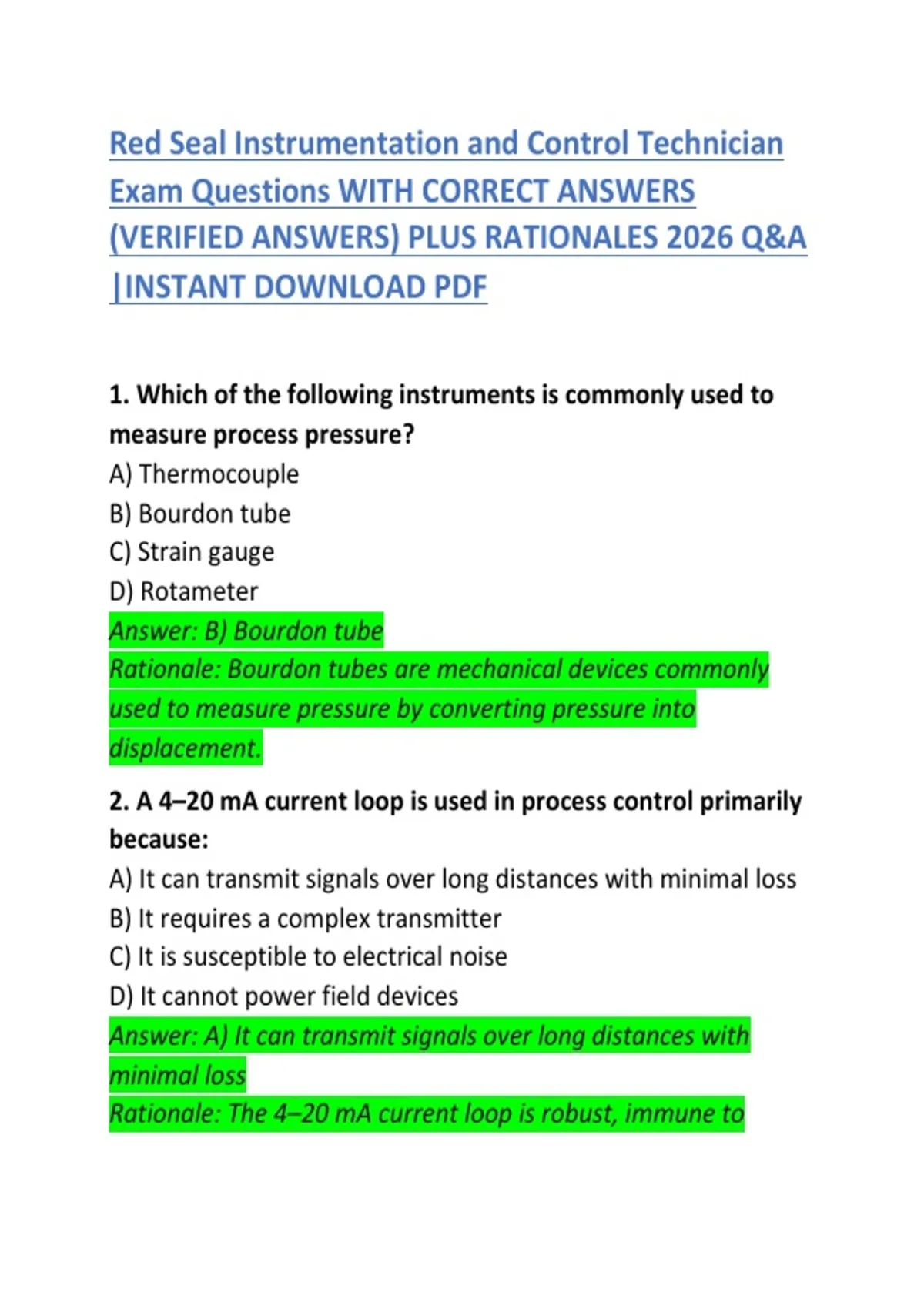

Red Seal Instrumentation and Control Technician
Exam Questions WITH CORRECT ANSWERS
(VERIFIED ANSWERS) PLUS RATIONALES 2026 Q&A
|INSTANT DOWNLOAD PDF
1. Which of the following instruments is commonly used to
measure process pressure?
A) Thermocouple
B) Bourdon tube
C) Strain gauge
D) Rotameter
Answer: B) Bourdon tube
Rationale: Bourdon tubes are mechanical devices commonly
used to measure pressure by converting pressure into
displacement.
2. A 4–20 mA current loop is used in process control primarily
because:
A) It can transmit signals over long distances with minimal loss
B) It requires a complex transmitter
C) It is susceptible to electrical noise
D) It cannot power field devices
Answer: A) It can transmit signals over long distances with
minimal loss
Rationale: The 4–20 mA current loop is robust, immune to
,electrical noise, and can power some devices while transmitting
signals.
3. Which of the following is an example of an analog sensor?
A) Limit switch
B) Thermocouple
C) Push button
D) Selector switch
Answer: B) Thermocouple
Rationale: Thermocouples generate a continuous analog
voltage proportional to temperature.
4. The primary purpose of a PID controller is to:
A) Start and stop a pump
B) Maintain a process variable at a setpoint
C) Convert analog signals to digital
D) Detect faults in a system
Answer: B) Maintain a process variable at a setpoint
Rationale: PID controllers adjust control outputs to keep the
process variable close to the desired setpoint using
proportional, integral, and derivative actions.
5. Which of the following components is considered a final
control element in a process control system?
A) Temperature transmitter
B) Control valve
C) PLC
D) Flow sensor
Answer: B) Control valve
,Rationale: The final control element directly manipulates the
process (e.g., opening/closing a valve) to maintain the desired
variable.
6. A HART communication protocol allows:
A) Only analog transmission
B) Digital communication over a current loop
C) Wireless signal transmission only
D) Mechanical signal adjustment
Answer: B) Digital communication over a current loop
Rationale: HART allows digital signals to be superimposed on a
4–20 mA analog signal for diagnostics and configuration.
7. Which type of transmitter converts a physical variable into
a standard 4–20 mA signal?
A) Pressure gauge
B) Temperature controller
C) Smart transmitter
D) Limit switch
Answer: C) Smart transmitter
Rationale: Smart transmitters sense a process variable and
convert it into a standardized signal (typically 4–20 mA).
8. Which of the following is a common fieldbus protocol in
industrial instrumentation?
A) Modbus
B) HTTP
C) FTP
D) SMTP
, Answer: A) Modbus
Rationale: Modbus is a widely used industrial protocol for
connecting instruments and controllers in automation systems.
9. In process instrumentation, a “deadband” refers to:
A) The range over which a sensor produces maximum output
B) A range of input change that does not produce output
change
C) The maximum pressure a system can handle
D) A control system fault
Answer: B) A range of input change that does not produce
output change
Rationale: Deadband prevents unnecessary control adjustments
due to minor fluctuations.
10. Which type of sensor uses a resistance change to measure
temperature?
A) Thermocouple
B) RTD (Resistance Temperature Detector)
C) Thermistor
D) Both B and C
Answer: D) Both B and C
Rationale: RTDs and thermistors change resistance with
temperature, making them effective for temperature
measurement.
11. What is the primary advantage of using digital signals over
analog signals in control systems?
A) Digital signals are immune to noise
