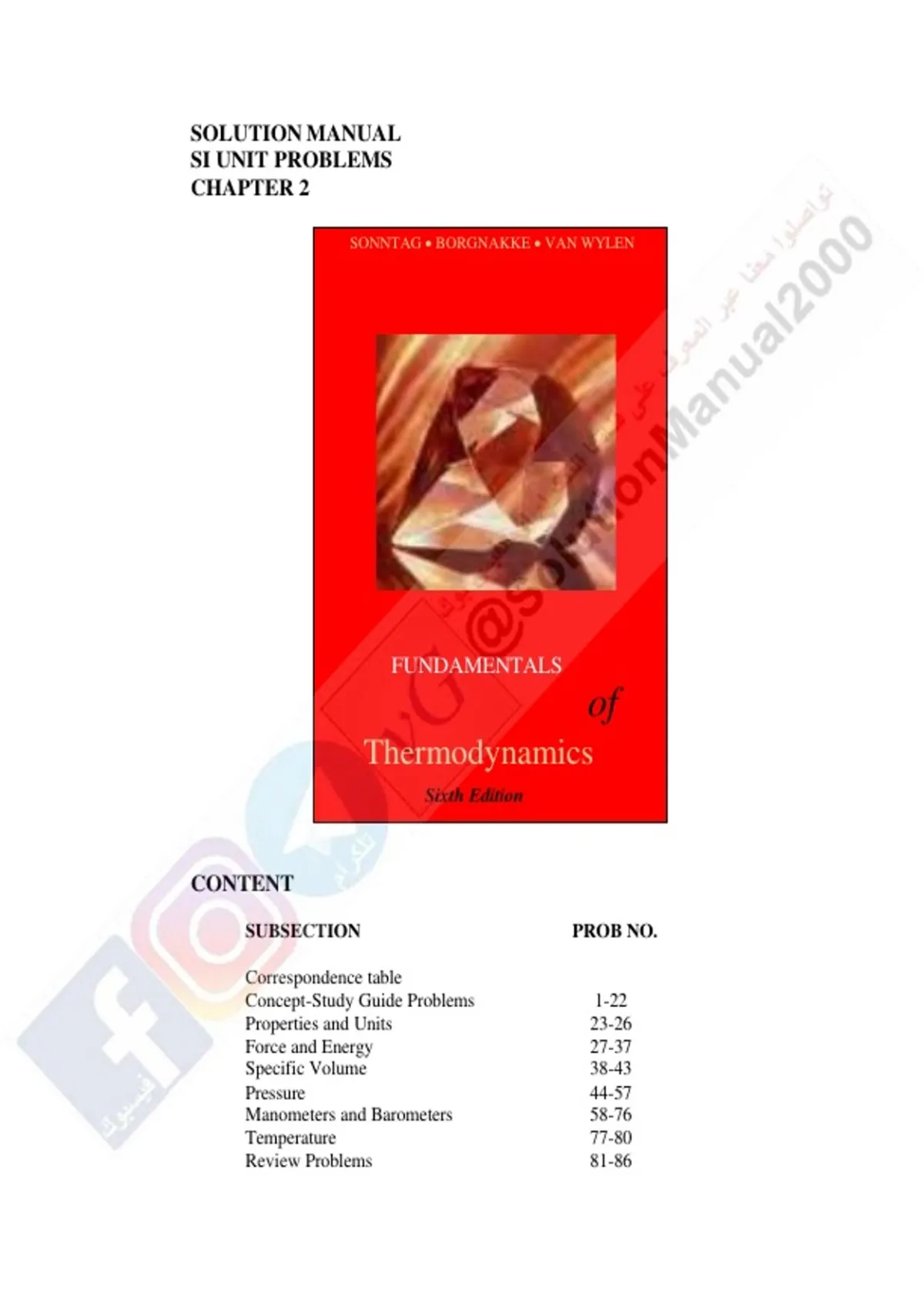

SOLUTION MANUAL
SI UNIT PROBLEMS
CHAPTER 2
SONNTAG • BORGNAKKE • VAN WYLEN
FUNDAMENTALS
of
Thermodynamics
Sixth Edition
CONTENT
SUBSECTION PROB NO.
Correspondence table
Concept-Study Guide Problems 1-22
Properties and Units 23-26
Force and Energy 27-37
Specific Volume 38-43
Pressure 44-57
Manometers and Barometers 58-76
Temperature 77-80
Review Problems 81-86
, Sonntag, Borgnakke and van Wylen
Correspondence table
CHAPTER 2 6th edition Sonntag/Borgnakke/Wylen
The correspondence between the problem set in this sixth edition versus the
problem set in the 5'th edition text. Problems that are new are marked new and
those that are only slightly altered are marked as modified (mod).
Study guide problems 2.1-2.22 and 2.23-2.26 are all new problems.
New 5th Ed. New 5th Ed. New 5th Ed.
27 1 47 new 67 24
28 new 48 16 68 new
29 2 49 17 69 new
30 new 50 new 70 23
31 3 51 new 71 new
32 new 52 19 72 30
33 5 53 new 73 32
34 6 54 34 74 33
35 7 55 29 75 new
36 9 56 new 76 37
37 10 57 28 mod 77 27
38 12 58 new 78 new
39 new 59 20 79 38
40 new 60 26 80 new
41 new 61 new 81 31
42 11 62 21 82 new
43 13 63 new 83 22
44 new 64 new 84 35
45 18 65 15 85 36
46 14 66 new 86 new
English Unit Problems
New 5th Ed. SI New 5th Ed. SI
87 new - 97 43E 43
88 new 11 98 new 50
89 new 12 99 new 53
90 new 19 100 45E 70
91 new 20 101 46E 45
92 new 24 102 new 82
93 39E 33 103 48E 55
94 40E - 104 new 80
95 new 47 105 47E 77
96 42E 42
Design and Open ended problems 106-116 are from 5th edition problems 2.50-
2.60
, Sonntag, Borgnakke and van Wylen
Concept-Study Guide Problems
2.1
Make a control volume around the turbine in the steam power plant in Fig. 1.1 and
list the flows of mass and energy that are there.
Solution:
We see hot high pressure steam flowing in 1
at state 1 from the steam drum through a
flow control (not shown). The steam leaves
at a lower pressure to the condenser (heat W
T
exchanger) at state 2. A rotating shaft gives
a rate of energy (power) to the electric
generator set. 2
, Sonntag, Borgnakke and van Wylen
2.2
Make a control volume around the whole power plant in Figure 1.2 and with the help
of Fig. 1.1 list what flows of mass and energy are in or out and any storage of
energy. Make sure you know what is inside and what is outside your chosen C.V.
Solution:
Boiler Smoke
building stack
Coal conveyor system Storage
gypsum
cb Coal
storage
flue
gas
Turbine house
Dock
Combustion air Flue gas
Underground Welectrical
power cable m Storage for later
transport out: m
District heating
Cold return m Gypsum, fly ash, slag Coal
Hot water m
m
SI UNIT PROBLEMS
CHAPTER 2
SONNTAG • BORGNAKKE • VAN WYLEN
FUNDAMENTALS
of
Thermodynamics
Sixth Edition
CONTENT
SUBSECTION PROB NO.
Correspondence table
Concept-Study Guide Problems 1-22
Properties and Units 23-26
Force and Energy 27-37
Specific Volume 38-43
Pressure 44-57
Manometers and Barometers 58-76
Temperature 77-80
Review Problems 81-86
, Sonntag, Borgnakke and van Wylen
Correspondence table
CHAPTER 2 6th edition Sonntag/Borgnakke/Wylen
The correspondence between the problem set in this sixth edition versus the
problem set in the 5'th edition text. Problems that are new are marked new and
those that are only slightly altered are marked as modified (mod).
Study guide problems 2.1-2.22 and 2.23-2.26 are all new problems.
New 5th Ed. New 5th Ed. New 5th Ed.
27 1 47 new 67 24
28 new 48 16 68 new
29 2 49 17 69 new
30 new 50 new 70 23
31 3 51 new 71 new
32 new 52 19 72 30
33 5 53 new 73 32
34 6 54 34 74 33
35 7 55 29 75 new
36 9 56 new 76 37
37 10 57 28 mod 77 27
38 12 58 new 78 new
39 new 59 20 79 38
40 new 60 26 80 new
41 new 61 new 81 31
42 11 62 21 82 new
43 13 63 new 83 22
44 new 64 new 84 35
45 18 65 15 85 36
46 14 66 new 86 new
English Unit Problems
New 5th Ed. SI New 5th Ed. SI
87 new - 97 43E 43
88 new 11 98 new 50
89 new 12 99 new 53
90 new 19 100 45E 70
91 new 20 101 46E 45
92 new 24 102 new 82
93 39E 33 103 48E 55
94 40E - 104 new 80
95 new 47 105 47E 77
96 42E 42
Design and Open ended problems 106-116 are from 5th edition problems 2.50-
2.60
, Sonntag, Borgnakke and van Wylen
Concept-Study Guide Problems
2.1
Make a control volume around the turbine in the steam power plant in Fig. 1.1 and
list the flows of mass and energy that are there.
Solution:
We see hot high pressure steam flowing in 1
at state 1 from the steam drum through a
flow control (not shown). The steam leaves
at a lower pressure to the condenser (heat W
T
exchanger) at state 2. A rotating shaft gives
a rate of energy (power) to the electric
generator set. 2
, Sonntag, Borgnakke and van Wylen
2.2
Make a control volume around the whole power plant in Figure 1.2 and with the help
of Fig. 1.1 list what flows of mass and energy are in or out and any storage of
energy. Make sure you know what is inside and what is outside your chosen C.V.
Solution:
Boiler Smoke
building stack
Coal conveyor system Storage
gypsum
cb Coal
storage
flue
gas
Turbine house
Dock
Combustion air Flue gas
Underground Welectrical
power cable m Storage for later
transport out: m
District heating
Cold return m Gypsum, fly ash, slag Coal
Hot water m
m
