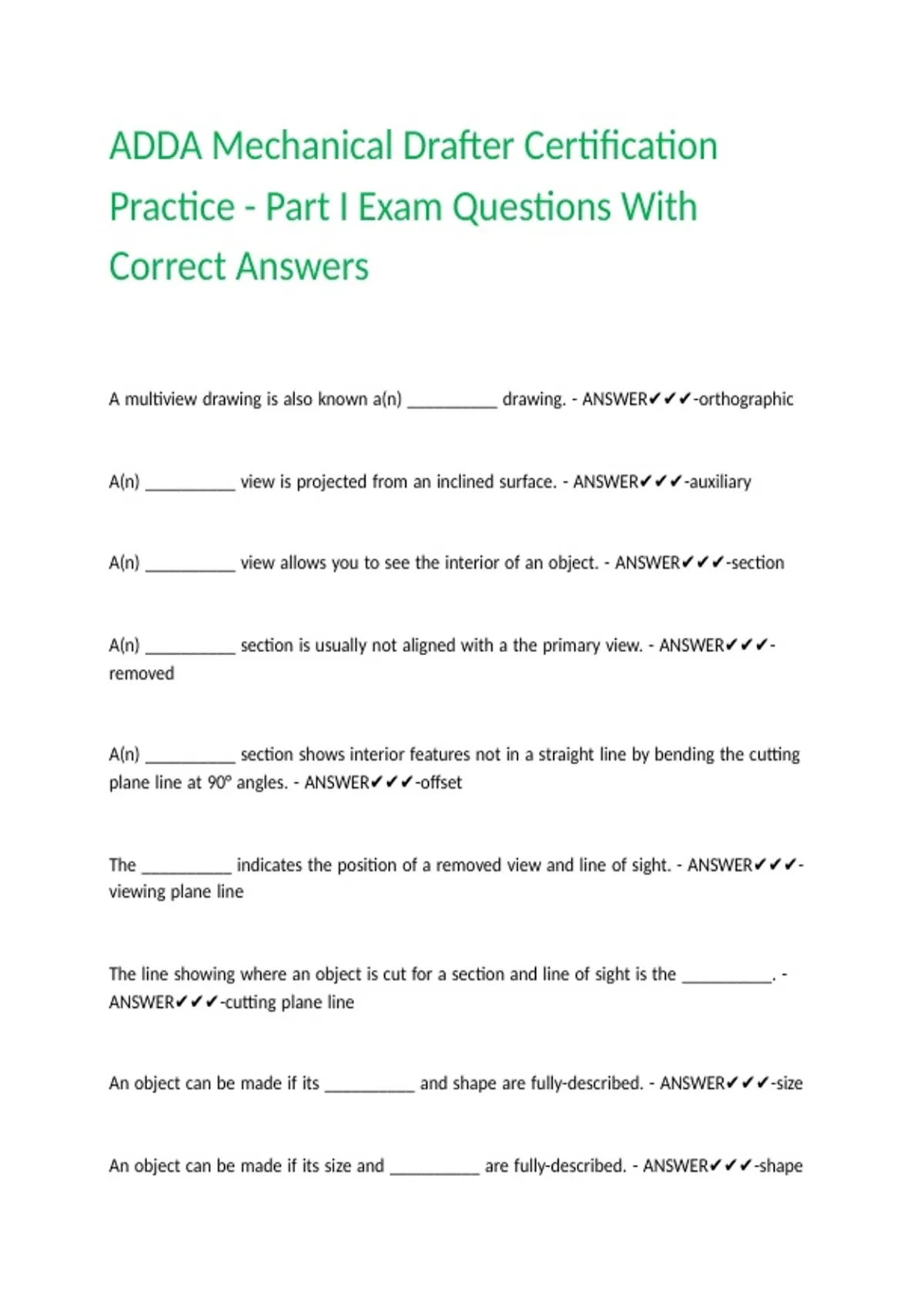

ADDA Mechanical Drafter Certification
Practice - Part I Exam Questions With
Correct Answers

A |multiview |drawing |is |also |known |a(n) |__________ |drawing. |- |ANSWER✔✔✔-orthographic



A(n) |__________ |view |is |projected |from |an |inclined |surface. |- |ANSWER✔✔✔-auxiliary



A(n) |__________ |view |allows |you |to |see |the |interior |of |an |object. |- |ANSWER✔✔✔-section



A(n) |__________ |section |is |usually |not |aligned |with |a |the |primary |view. |- |ANSWER✔✔✔-
removed



A(n) |__________ |section |shows |interior |features |not |in |a |straight |line |by |bending |the |cutting |
plane |line |at |90° |angles. |- |ANSWER✔✔✔-offset



The |__________ |indicates |the |position |of |a |removed |view |and |line |of |sight. |- |ANSWER✔✔✔-
viewing |plane |line



The |line |showing |where |an |object |is |cut |for |a |section |and |line |of |sight |is |the |__________. |- |
ANSWER✔✔✔-cutting |plane |line



An |object |can |be |made |if |its |__________ |and |shape |are |fully-described. |- |ANSWER✔✔✔-size



An |object |can |be |made |if |its |size |and |__________ |are |fully-described. |- |ANSWER✔✔✔-shape
