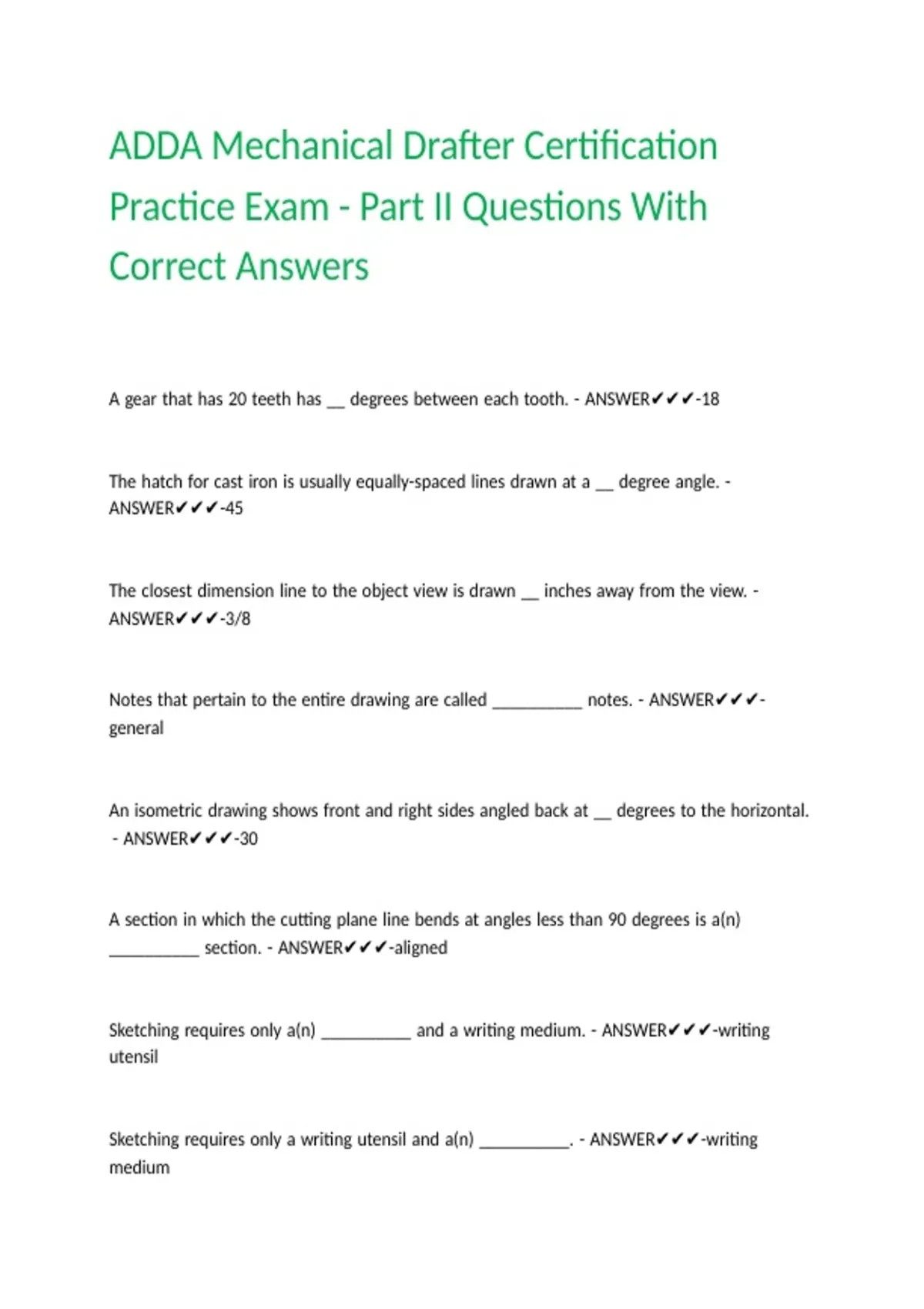

ADDA Mechanical Drafter Certification
Practice Exam - Part II Questions With
Correct Answers

A |gear |that |has |20 |teeth |has |__ |degrees |between |each |tooth. |- |ANSWER✔✔✔-18



The |hatch |for |cast |iron |is |usually |equally-spaced |lines |drawn |at |a |__ |degree |angle. |- |
ANSWER✔✔✔-45



The |closest |dimension |line |to |the |object |view |is |drawn |__ |inches |away |from |the |view. |- |
ANSWER✔✔✔-3/8



Notes |that |pertain |to |the |entire |drawing |are |called |__________ |notes. |- |ANSWER✔✔✔-
general



An |isometric |drawing |shows |front |and |right |sides |angled |back |at |__ |degrees |to |the |horizontal.
|- |ANSWER✔✔✔-30




A |section |in |which |the |cutting |plane |line |bends |at |angles |less |than |90 |degrees |is |a(n) |
__________ |section. |- |ANSWER✔✔✔-aligned



Sketching |requires |only |a(n) |__________ |and |a |writing |medium. |- |ANSWER✔✔✔-writing |
utensil



Sketching |requires |only |a |writing |utensil |and |a(n) |__________. |- |ANSWER✔✔✔-writing |
medium
