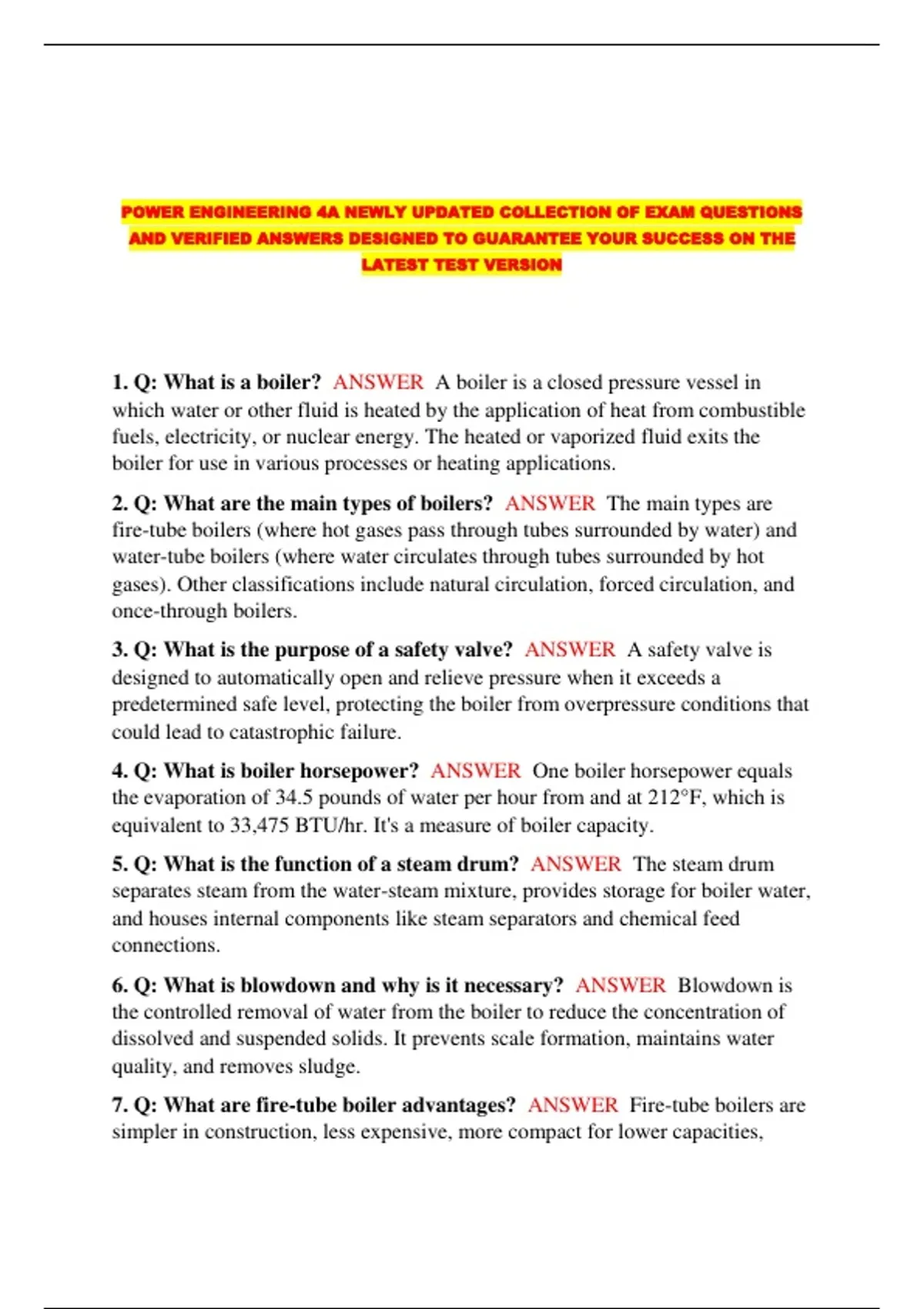

POWER ENGINEERING 4A NEWLY UPDATED COLLECTION OF EXAM QUESTIONS
AND VERIFIED ANSWERS DESIGNED TO GUARANTEE YOUR SUCCESS ON THE
LATEST TEST VERSION
1. Q: What is a boiler? ANSWER A boiler is a closed pressure vessel in
which water or other fluid is heated by the application of heat from combustible
fuels, electricity, or nuclear energy. The heated or vaporized fluid exits the
boiler for use in various processes or heating applications.
2. Q: What are the main types of boilers? ANSWER The main types are
fire-tube boilers (where hot gases pass through tubes surrounded by water) and
water-tube boilers (where water circulates through tubes surrounded by hot
gases). Other classifications include natural circulation, forced circulation, and
once-through boilers.
3. Q: What is the purpose of a safety valve? ANSWER A safety valve is
designed to automatically open and relieve pressure when it exceeds a
predetermined safe level, protecting the boiler from overpressure conditions that
could lead to catastrophic failure.
4. Q: What is boiler horsepower? ANSWER One boiler horsepower equals
the evaporation of 34.5 pounds of water per hour from and at 212°F, which is
equivalent to 33,475 BTU/hr. It's a measure of boiler capacity.
5. Q: What is the function of a steam drum? ANSWER The steam drum
separates steam from the water-steam mixture, provides storage for boiler water,
and houses internal components like steam separators and chemical feed
connections.
6. Q: What is blowdown and why is it necessary? ANSWER Blowdown is
the controlled removal of water from the boiler to reduce the concentration of
dissolved and suspended solids. It prevents scale formation, maintains water
quality, and removes sludge.
7. Q: What are fire-tube boiler advantages? ANSWER Fire-tube boilers are
simpler in construction, less expensive, more compact for lower capacities,
,require less rigid water treatment, and can handle load fluctuations better due to
larger water storage capacity.
8. Q: What are water-tube boiler advantages? ANSWER Water-tube
boilers can operate at higher pressures and temperatures, have faster steam
generation, are more efficient, safer due to less water volume under pressure,
and can be built in larger capacities.
9. Q: What is carryover in boilers? ANSWER Carryover is the entrainment
of water droplets, dissolved solids, or suspended matter with steam leaving the
boiler. It can cause turbine blade deposits, reduce efficiency, and damage
equipment.
10. Q: What causes priming in boilers? ANSWER Priming is caused by
high water levels, sudden load increases, excessive dissolved or suspended
solids, improper boiler design, oil contamination, or excessive alkalinity causing
foaming.
11. Q: What is a furnace or combustion chamber? ANSWER The furnace
is the space where fuel is burned and initial heat transfer occurs through
radiation. It must be designed to provide adequate volume for complete
combustion and proper heat absorption.
12. Q: What is meant by natural circulation in boilers? ANSWER Natural
circulation uses the difference in density between hot water in heated tubes and
cooler water in unheated downcomers to create circulation without mechanical
assistance.
13. Q: What is a superheater? ANSWER A superheater is a heat exchanger
that heats saturated steam above its saturation temperature, removing moisture
and increasing steam temperature without increasing pressure, improving cycle
efficiency.
14. Q: What is an economizer? ANSWER An economizer is a heat recovery
device that preheats boiler feedwater using heat from flue gases, improving
overall boiler efficiency by recovering waste heat.
15. Q: What is an air preheater? ANSWER An air preheater heats
combustion air using waste heat from flue gases, improving combustion
efficiency, reducing fuel consumption, and lowering stack temperatures.
16. Q: What is the purpose of baffles in a boiler? ANSWER Baffles direct
the flow of hot gases across heat transfer surfaces multiple times, increasing
heat transfer, improving efficiency, and ensuring more uniform heating of
surfaces.
,17. Q: What is a water column? ANSWER A water column is an external
fitting connected to the boiler that provides a still water surface for accurate
water level indication and houses water level controls and alarms.
18. Q: What are fusible plugs used for? ANSWER Fusible plugs contain
low-melting-point metal that melts if water level drops dangerously low,
exposing boiler surfaces to overheating. The plug melts, releasing steam to alert
operators and reduce pressure.
19. Q: What is the difference between working pressure and design
pressure? ANSWER Working pressure (MAWP - Maximum Allowable
Working Pressure) is the maximum pressure at which a boiler can safely
operate. Design pressure is typically higher and includes safety factors used
during construction.
20. Q: What is meant by boiler efficiency? ANSWER Boiler efficiency is
the ratio of useful heat output to heat input from fuel, expressed as a percentage.
It accounts for losses through stack gases, radiation, blowdown, and unburned
fuel.
21. Q: What causes scale formation in boilers? ANSWER Scale forms when
dissolved minerals (primarily calcium and magnesium salts) precipitate onto hot
boiler surfaces as water evaporates. Hard water, high heat flux, and improper
water treatment contribute to scaling.
22. Q: What are the dangers of scale in boilers? ANSWER Scale reduces
heat transfer, causing tube overheating and failure, reduces efficiency, increases
fuel costs, can cause hot spots leading to bulging or rupture, and may block
circulation.
23. Q: What is boiler corrosion? ANSWER Corrosion is the gradual
destruction of boiler metal by chemical or electrochemical reaction with its
environment, caused by oxygen, low pH, caustic attack, or other chemical
factors.
24. Q: What is oxygen pitting? ANSWER Oxygen pitting is localized
corrosion occurring where dissolved oxygen in boiler water attacks metal
surfaces, creating deep pits that can lead to boiler failure.
25. Q: What is caustic embrittlement? ANSWER Caustic embrittlement
(stress corrosion cracking) occurs when concentrated caustic solutions penetrate
metal grain boundaries under stress, causing cracking, particularly near riveted
joints or welds.
, 26. Q: What is the purpose of a deaerator? ANSWER A deaerator removes
dissolved oxygen and other non-condensable gases from boiler feedwater
through heating and mechanical action, preventing corrosion and improving
efficiency.
27. Q: What is a try cock? ANSWER A try cock is a valve located on the
water column used to manually verify water level by releasing water or steam,
providing backup to glass gauges.
28. Q: What is the purpose of a blowoff valve? ANSWER A blowoff valve
(bottom blowdown valve) removes sediment, sludge, and concentrated
impurities from the lowest part of the boiler to maintain water quality and
prevent accumulation.
29. Q: What is continuous blowdown? ANSWER Continuous blowdown is
the steady removal of a small amount of water from near the water surface
where dissolved solids concentrate, maintaining consistent water chemistry.
30. Q: What is an ASME code? ANSWER The ASME (American Society of
Mechanical Engineers) Boiler and Pressure Vessel Code establishes rules for
design, fabrication, and inspection of boilers and pressure vessels to ensure
safety.
31. Q: What is a safety factor? ANSWER A safety factor is a design margin
that ensures equipment can safely withstand stresses beyond normal operating
conditions, accounting for uncertainties in materials, fabrication, and operating
conditions.
32. Q: What is tube expansion? ANSWER Tube expansion is the process of
mechanically enlarging tube ends to create a tight, leak-proof joint with tube
sheets or drums, either by rolling, hydraulic expansion, or explosive expansion.
33. Q: What causes tube failure in boilers? ANSWER Tube failures result
from overheating, corrosion, erosion, thermal fatigue, stress corrosion cracking,
inadequate circulation, scale buildup, manufacturing defects, or mechanical
damage.
34. Q: What is draft in a boiler? ANSWER Draft is the difference in
pressure that causes air and combustion gases to flow through the boiler. It can
be natural (chimney effect) or mechanical (induced or forced draft fans).
35. Q: What is forced draft? ANSWER Forced draft uses fans to push
combustion air into the furnace, creating positive pressure and improving
combustion control, allowing higher firing rates than natural draft.
