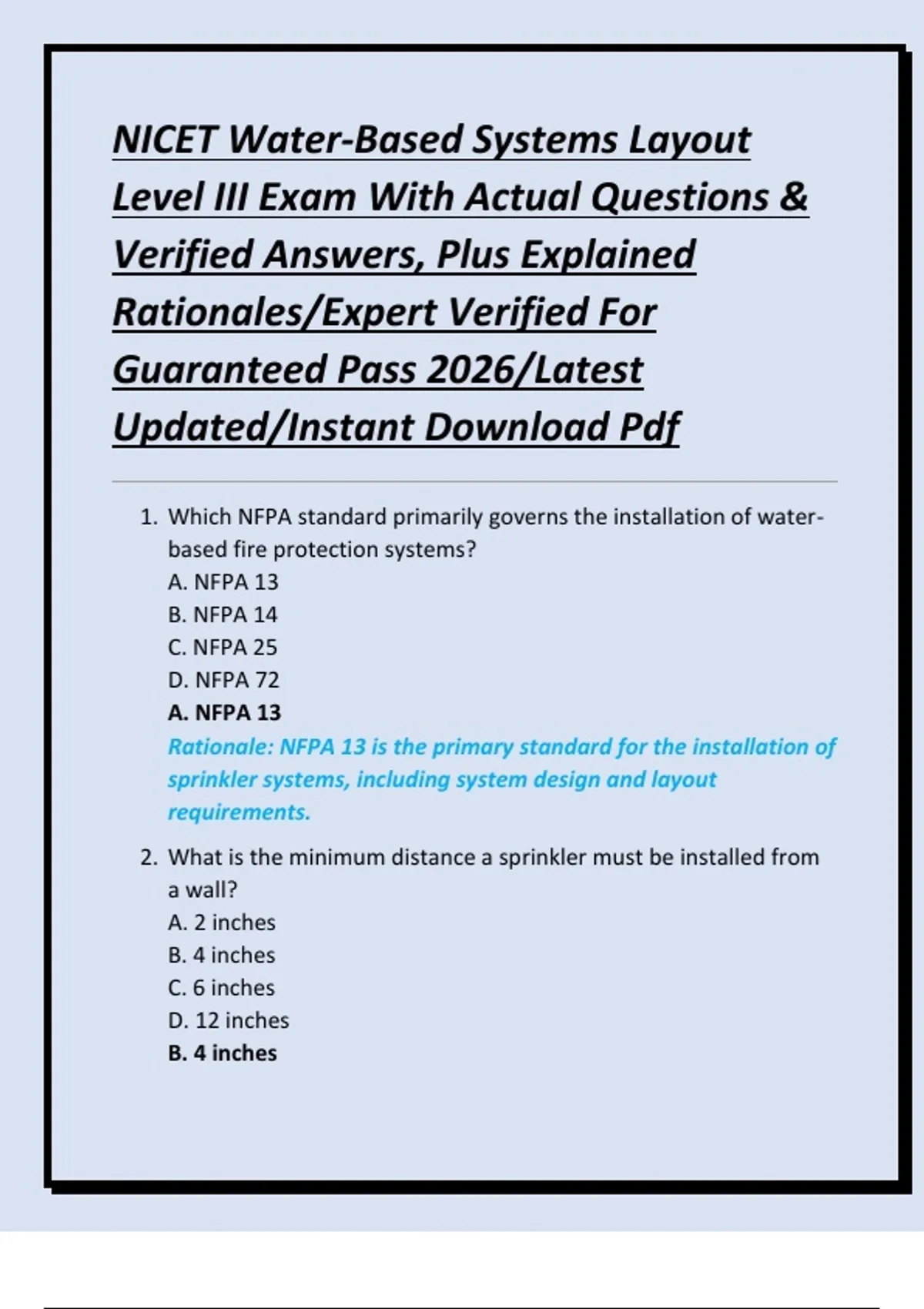

NICET Water-Based Systems Layout
Level III Exam With Actual Questions &
Verified Answers, Plus Explained
Rationales/Expert Verified For
Guaranteed Pass 2026/Latest
Updated/Instant Download Pdf
1. Which NFPA standard primarily governs the installation of water-
based fire protection systems?
A. NFPA 13
B. NFPA 14
C. NFPA 25
D. NFPA 72
A. NFPA 13
Rationale: NFPA 13 is the primary standard for the installation of
sprinkler systems, including system design and layout
requirements.
2. What is the minimum distance a sprinkler must be installed from
a wall?
A. 2 inches
B. 4 inches
C. 6 inches
D. 12 inches
B. 4 inches
, Rationale: NFPA 13 specifies a minimum of 4 inches from the
wall for standard spray sprinklers to ensure adequate coverage.
3. Which type of sprinkler is best suited for areas with high ceilings
and heavy dust accumulation?
A. Upright
B. Pendant
C. Sidewall
D. Extended coverage
A. Upright
Rationale: Upright sprinklers are typically used in dusty areas
and high ceilings to avoid obstruction and accumulation of
debris.
4. In hydraulic calculations, the term "density" refers to:
A. Weight of water per cubic foot
B. Water application rate per area
C. Pipe friction
D. Pump pressure
B. Water application rate per area
Rationale: Density is the water application rate, usually
expressed in gpm per square foot, which is critical for hydraulic
design.
5. For light hazard occupancy, what is the minimum design density
for a sprinkler system?
A. 0.05 gpm/ft²
B. 0.10 gpm/ft²
C. 0.15 gpm/ft²
D. 0.20 gpm/ft²
C. 0.15 gpm/ft²
, Rationale: NFPA 13 defines light hazard occupancy design
density as 0.15 gpm/ft² over the required design area.
6. A wet pipe sprinkler system is not suitable for:
A. Office buildings
B. Warehouses with constant temperatures
C. Freezing environments
D. Light hazard areas
C. Freezing environments
Rationale: Wet pipe systems contain water in the piping and can
freeze, causing pipe bursts.
7. The minimum cover required for underground sprinkler piping is:
A. 12 inches
B. 18 inches
C. 24 inches
D. 36 inches
B. 18 inches
Rationale: NFPA 24 requires a minimum of 18 inches of cover for
underground piping to prevent mechanical damage and
freezing.
8. What is the primary purpose of a hydraulic calculation?
A. Determine pipe material
B. Ensure adequate water supply and pressure
C. Locate sprinklers
D. Select sprinkler type
B. Ensure adequate water supply and pressure
Rationale: Hydraulic calculations are performed to ensure that
the system will deliver adequate water at the required pressure
to all sprinklers.
, 9. Which type of sprinkler head is designed to resist accidental
activation from physical contact?
A. Pendant
B. Upright
C. Recessed
D. Concealed
D. Concealed
Rationale: Concealed sprinklers are protected by a cover plate,
preventing accidental activation.
10. Which NFPA standard provides guidance for inspection,
testing, and maintenance of water-based systems?
A. NFPA 13
B. NFPA 14
C. NFPA 25
D. NFPA 72
C. NFPA 25
Rationale: NFPA 25 covers inspection, testing, and maintenance
procedures for water-based fire protection systems.
11. What is the maximum allowable distance between sprinklers
in a light hazard occupancy?
A. 10 feet
B. 12 feet
C. 15 feet
D. 20 feet
C. 15 feet
Rationale: NFPA 13 specifies a maximum spacing of 15 feet for
sprinklers in light hazard occupancies.
12. A dry pipe system is typically used in:
A. Heated office buildings
